PFA-Lined Valves and Components — Catalogue
Nine product lines for corrosive and high-purity media, with Clean Room Series versions, spare parts and custom-made parts.
Every product line has one product page with both flange standards: choose size, lining and options there and send the configuration as a request for quotation. The table gives the ranges at a glance; the blocks below link to each product page.
Overview
All product lines at a glance
| Product line | Function | Sizes | Pressure | Temperature |
|---|---|---|---|---|
| Ball Valve Spheron9 | Shut-off | DN 15 – 200 · NPS ½" – 8" | PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10 | −60 °C … +200 °C |
| Butterfly Valve Papilon9 | Isolation | DN 40 – 600 · NPS 1½" – 24" | PN 10 · 10 bar to 160 °C, then to 6 bar at 200 °C · DN 500–600: 6 bar | −60 °C … +200 °C |
| Diaphragm Valve Membron9 | Isolation and throttling | DN 15 – 150 · NPS ½" – 6" | 16 / 10 / 7 bar by size · see P-T diagram | see P-T diagram |
| Swing Check Valve Vibron9 | Backflow protection | DN 40 – 400 · NPS 1½" – 16" | PN 16 / Class 150 · 16 bar to 100 °C | −60 °C … +200 °C |
| Ball Check Valve Prohibron9 | Backflow protection | DN 15 – 200 · NPS 1" – 8" | PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10 | −60 °C … +200 °C |
| Control Valve Imperium9 | Regulation | DN 15 – 100 · NPS ½" – 4" | PN 16 / Class 150 · 16 bar to 100 °C (heavy-duty bellows) | −60 °C … +200 °C |
| T-Strainer Purion9 | Protection | DN 25 – 150 · NPS 1" – 6" | PN 16 / Class 150 · 16 bar to 100 °C · DN 150: PN 10 | −60 °C … +150 °C with ETFE basket, +200 °C with PTFE basket |
| Sight Glass Videron9 | Visual control | DN 15 – 200 · NPS ½" – 8" · larger sizes on request | PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10 | −60 °C … +150 °C |
| Sample Valve Provaron9 | Sampling | DN 25 – 80 · NPS 1" – 3" | PN 16 / Class 150 · 16 bar to 100 °C | −60 °C … +200 °C |
Every line is offered to EN 1092-1 and ASME B16.5 flanges. Full technical data, P-T diagrams and dimensions are on each product page.
By duty
Choose by duty
Check and control valves
Swing and ball check valves against backflow, and the Imperium9 control valve for regulation.
Strainers
PFA-lined T-strainers with PTFE baskets that protect pumps, control valves and instruments.
Sample valves and sight glasses
Take samples without opening the line, and see flow, colour and level — also as Clean Room Series.
Spare parts
Spare parts for GFT9 products — and for equipment of other makes: send us the part, we measure, document and manufacture it.
Custom-made
PFA-lined and all-PFA parts to your drawing: machined, lined and tested in one house, from one fitting to large equipment.
Product lines
The product lines
Shut-off · PFA-lined ball valve
PFA-Lined Ball Valve Spheron9
Full bore · 2-way · flanged · DN 15 – 200 / NPS ½" – 8" · PN 16 / Class 150 · for corrosive and high-purity media
- Sizes
- DN 15 – 200 · NPS ½" – 8"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10
- Temperature
- −60 °C … +200 °C
- Certified
- PED Module A2 · TA-Luft BH
Isolation · PFA-lined butterfly valve
PFA-Lined Butterfly Valve Papilon9
Wafer or lug · DN 40 – 600 / NPS 1½" – 24" · PN 10 / Class 150 · for corrosive and high-purity media in large lines
- Sizes
- DN 40 – 600 · NPS 1½" – 24"
- Pressure
- PN 10 · 10 bar to 160 °C, then to 6 bar at 200 °C · DN 500–600: 6 bar
- Temperature
- −60 °C … +200 °C
- Directive
- Designed and manufactured to PED 2014/68/EU
Isolation and throttling · PFA-lined diaphragm valve

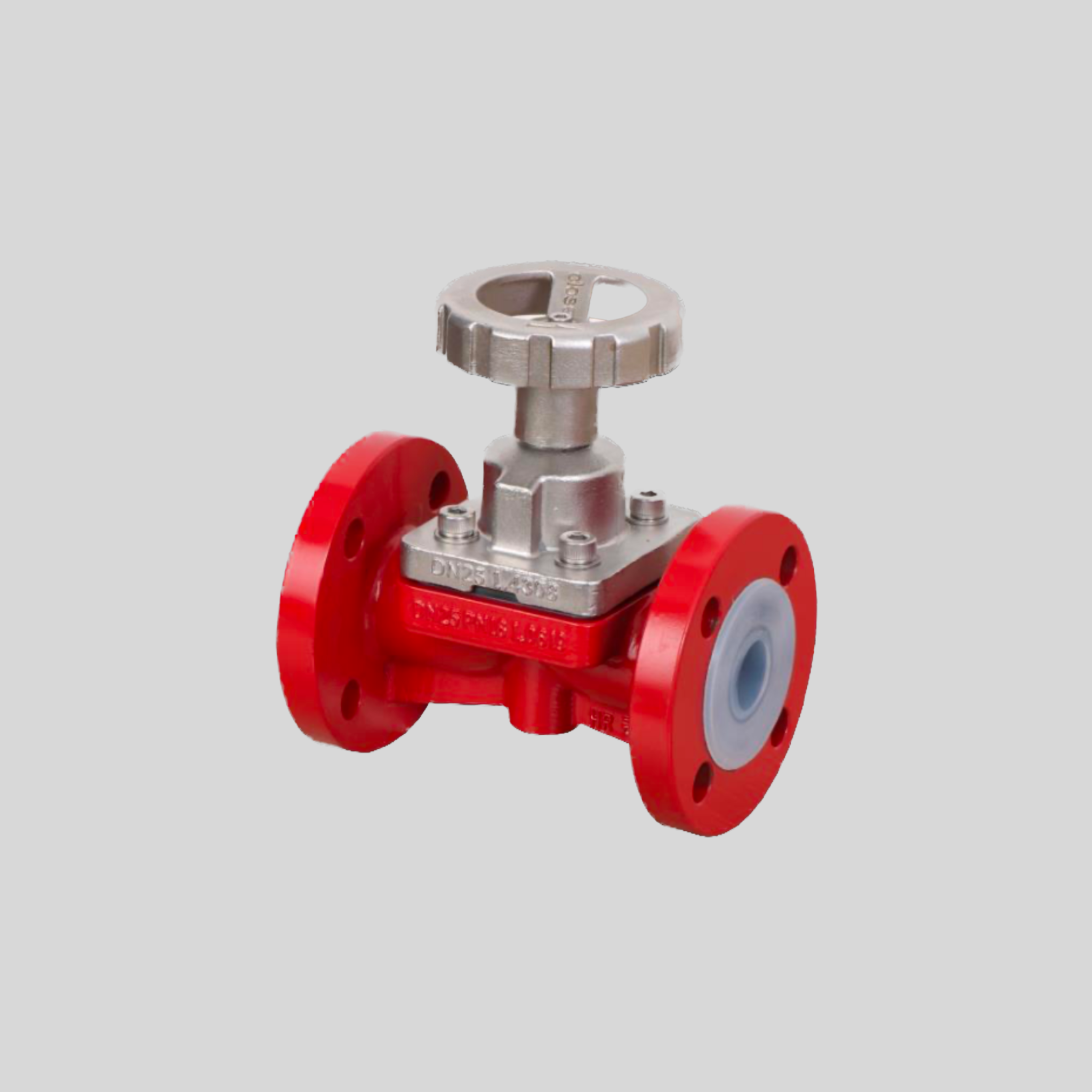

PFA-Lined Diaphragm Valve Membron9
Weir type · flanged · DN 15 – 150 / NPS ½" – 6" · 16 / 10 / 7 bar by size, see P-T diagram · for corrosive and high-purity media
- Sizes
- DN 15 – 150 · NPS ½" – 6"
- Pressure
- 16 / 10 / 7 bar by size · see P-T diagram
- Operation
- Handwheel · actuated
- Directive
- Designed and manufactured to PED 2014/68/EU
Backflow protection · PFA-lined swing check valve

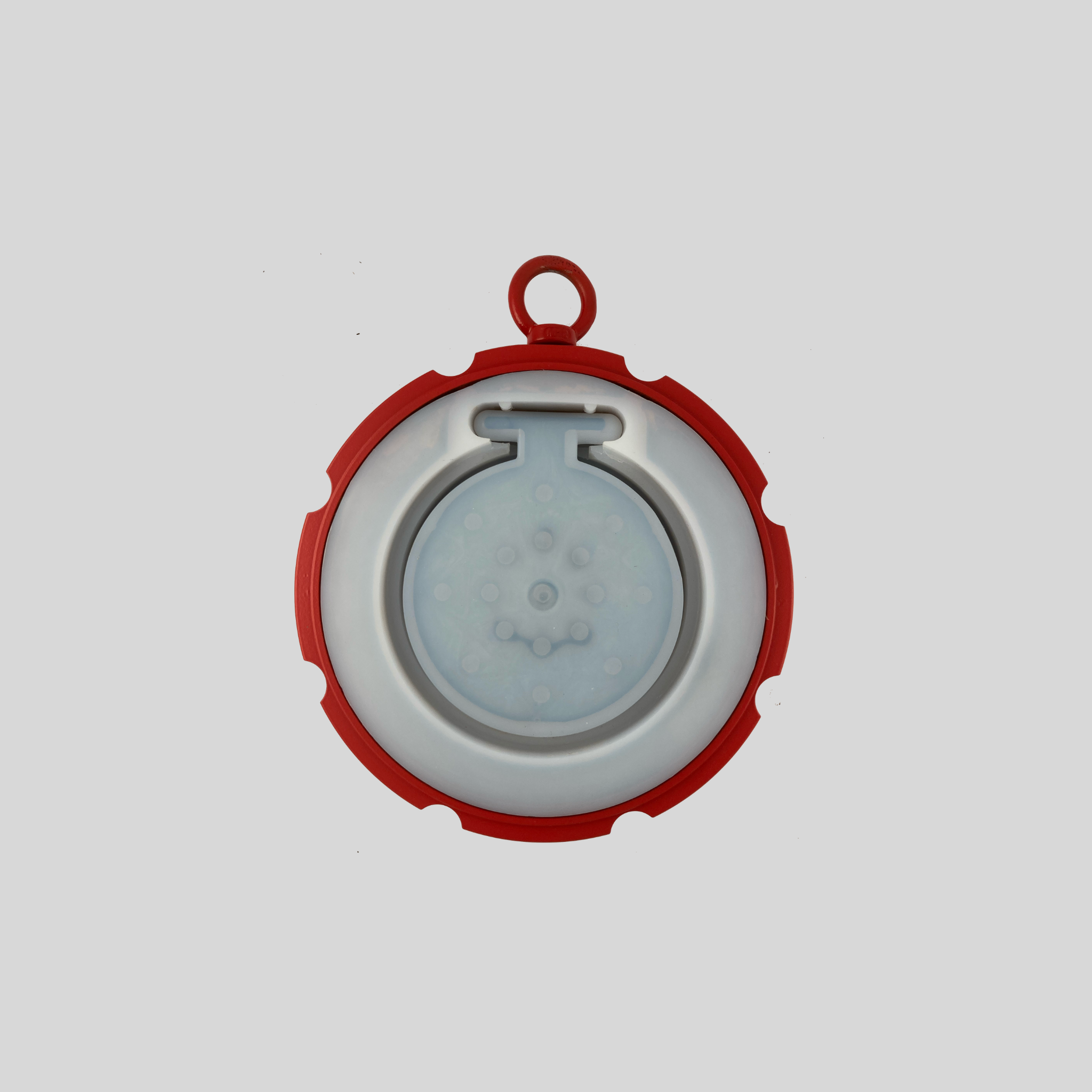

PFA-Lined Swing Check Valve Vibron9
Wafer type · PFA-lined body and disc · DN 40 – 400 · NPS 1½" – 16" · PN 16 / Class 150 · for corrosive media
- Sizes
- DN 40 – 400 · NPS 1½" – 16"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C
- Temperature
- −60 °C … +200 °C
- Directive
- Designed and manufactured to PED 2014/68/EU
Backflow protection · PFA-lined ball check valve

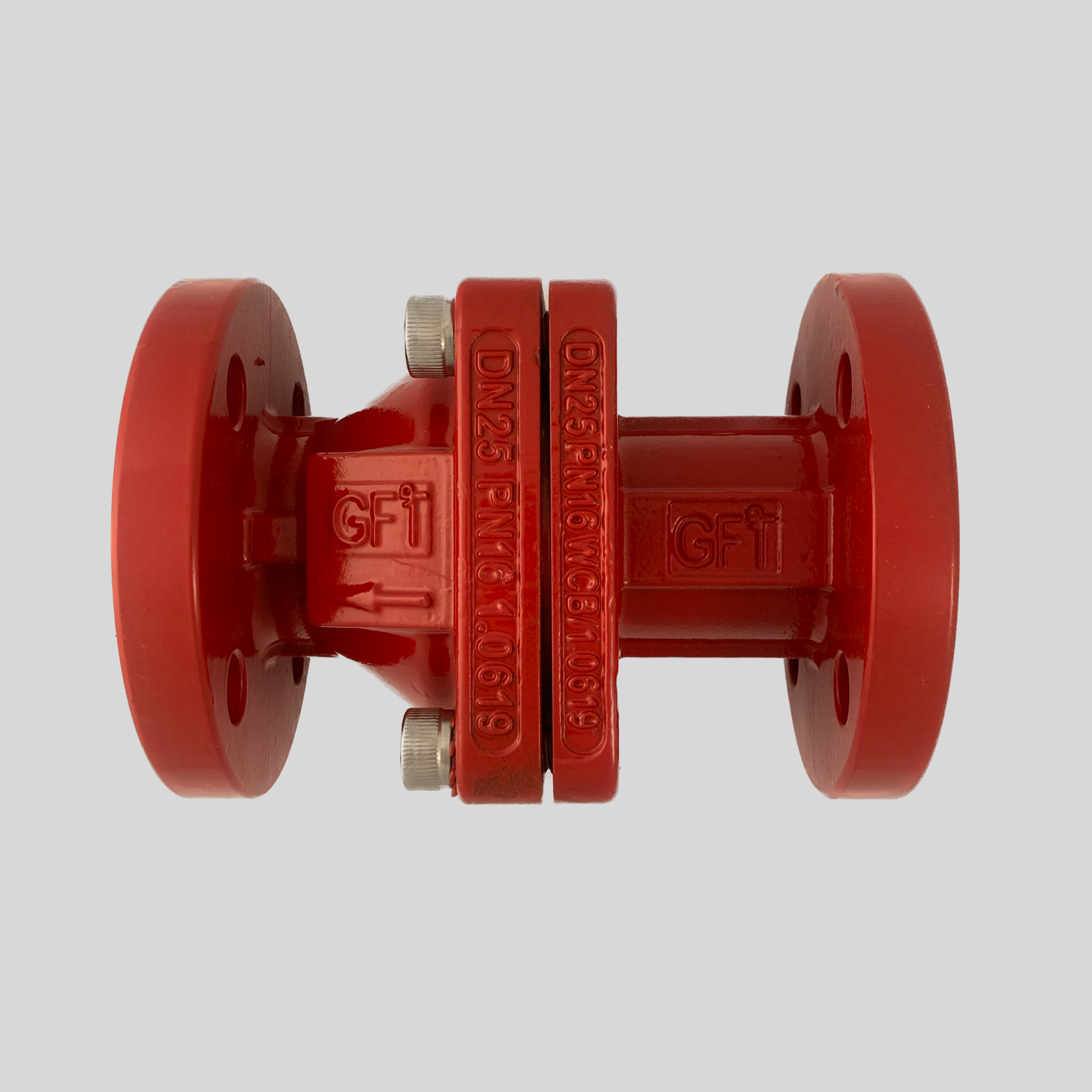

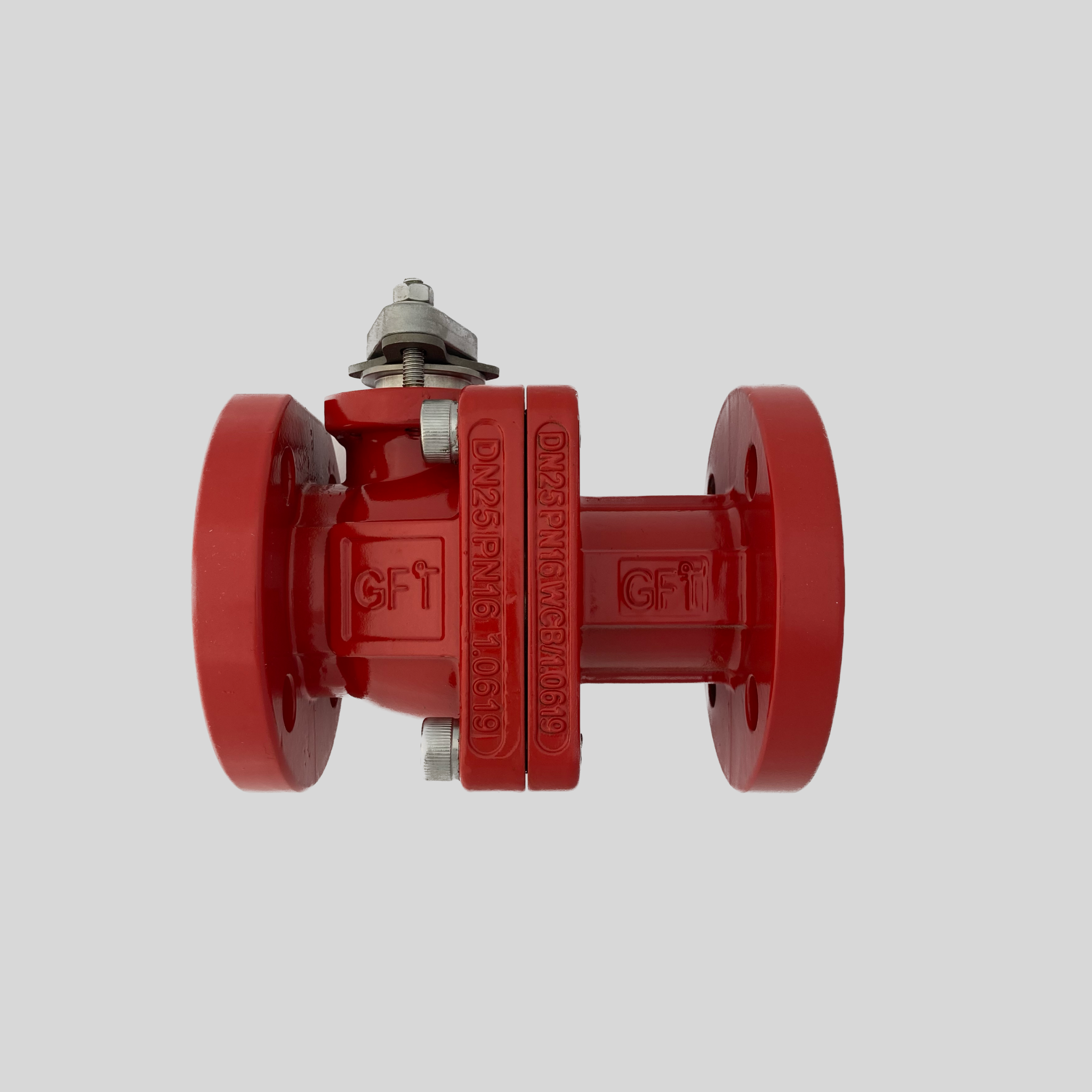

PFA-Lined Ball Check Valve Prohibron9
One moving part · flanged · DN 15 – 200 / NPS 1" – 8" · PN 16 / Class 150 · for corrosive and high-purity media
- Sizes
- DN 15 – 200 · NPS 1" – 8"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10
- Temperature
- −60 °C … +200 °C
- Directive
- Designed and manufactured to PED 2014/68/EU
Regulation · PFA-lined control valve

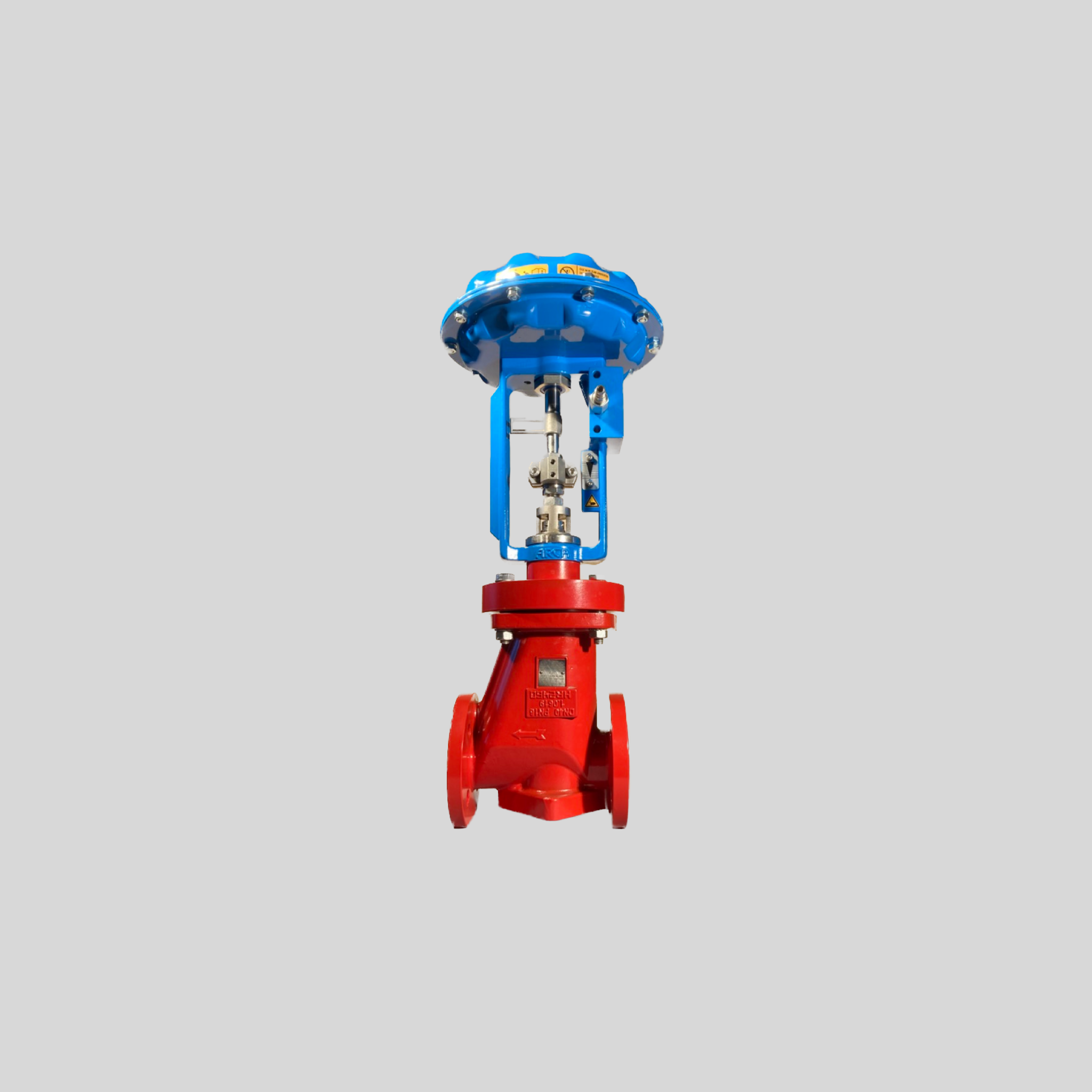

PFA-Lined Control Valve Imperium9
Globe · flanged · DN 15 – 100 / NPS ½" – 4" · PN 16 / Class 150 · PFA bellows · for corrosive media
- Sizes
- DN 15 – 100 · NPS ½" – 4"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C (heavy-duty bellows)
- Temperature
- −60 °C … +200 °C
- Directive
- Designed and manufactured to PED 2014/68/EU
Protection · PFA-lined T-strainer

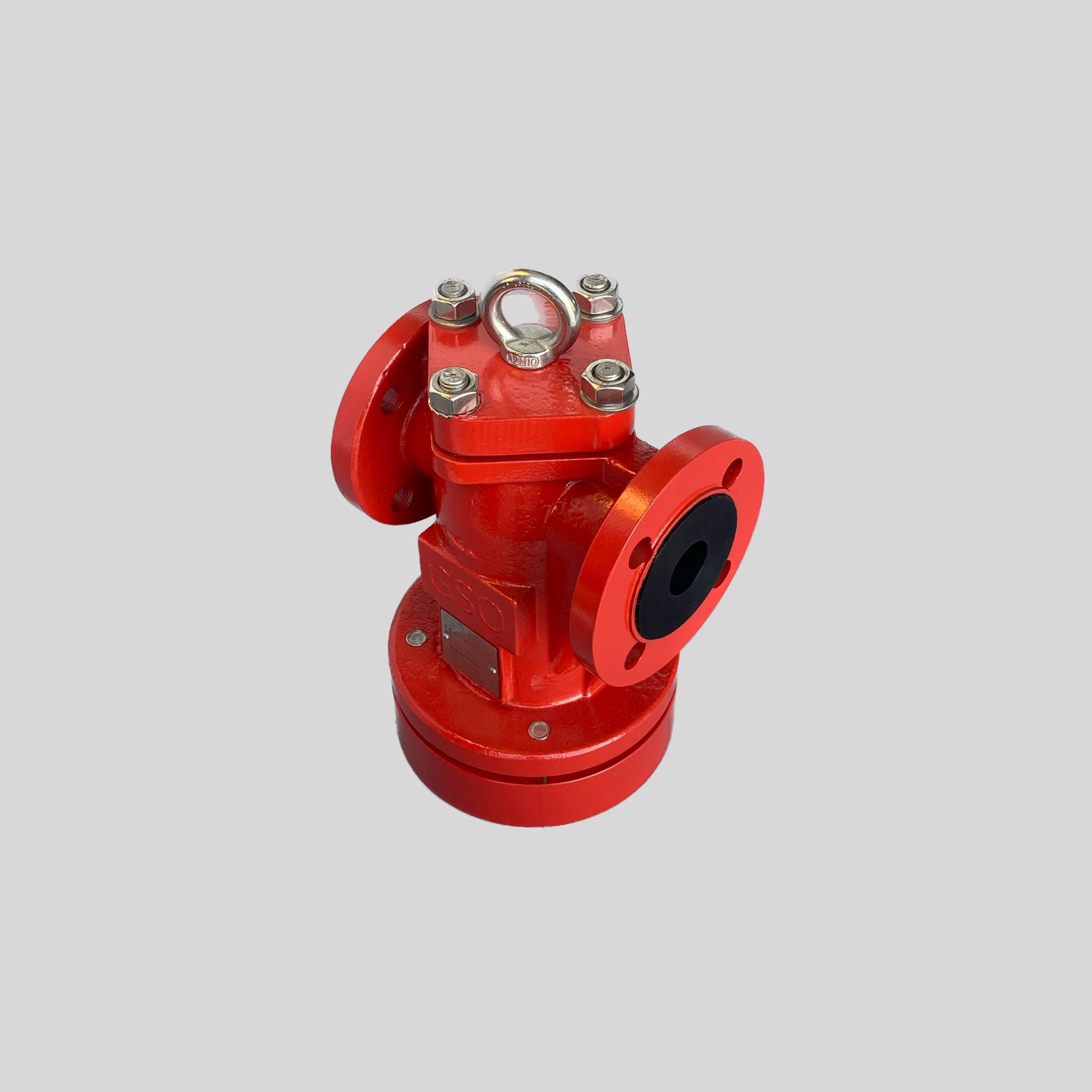

PFA-Lined T-Strainer Purion9
Removable PTFE basket · flanged · DN 25 – 150 / NPS 1" – 6" · PN 16 / Class 150 · for corrosive media
- Sizes
- DN 25 – 150 · NPS 1" – 6"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C · DN 150: PN 10
- Temperature
- −60 °C … +150 °C with ETFE basket, +200 °C with PTFE basket
- Directive
- Designed and manufactured to PED 2014/68/EU
Visual control · PFA-lined sight glass

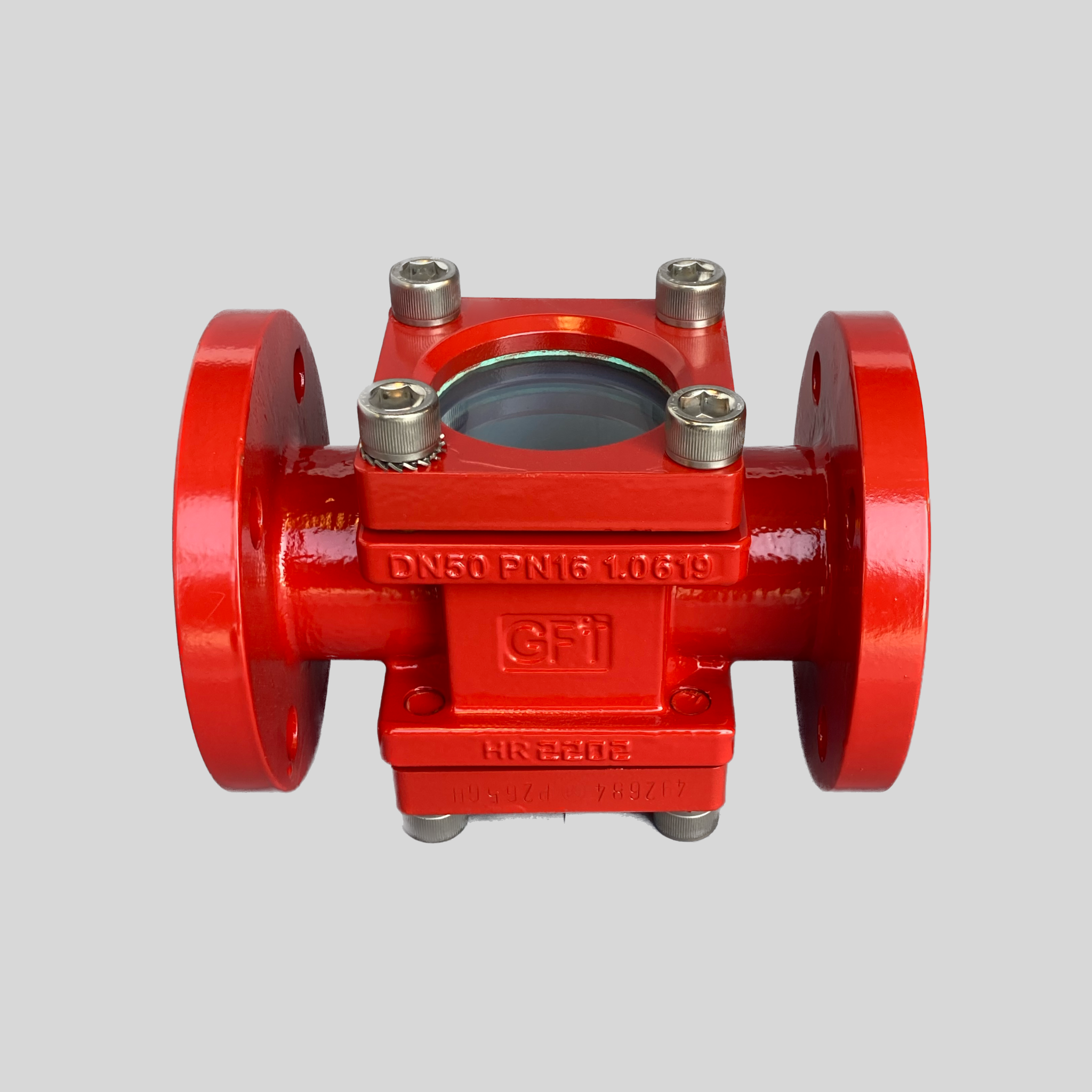

PFA-Lined Sight Glass Videron9
Double window · flanged · DN 15 – 200 / NPS ½" – 8" · PN 16 / Class 150 (DN 150–200 / NPS 6–8: PN 10) · for corrosive media
- Sizes
- DN 15 – 200 · NPS ½" – 8" · larger sizes on request
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C · DN 150–200: PN 10
- Temperature
- −60 °C … +150 °C
- Directive
- Designed to PED 2014/68/EU
Sampling · PFA-lined sample valve

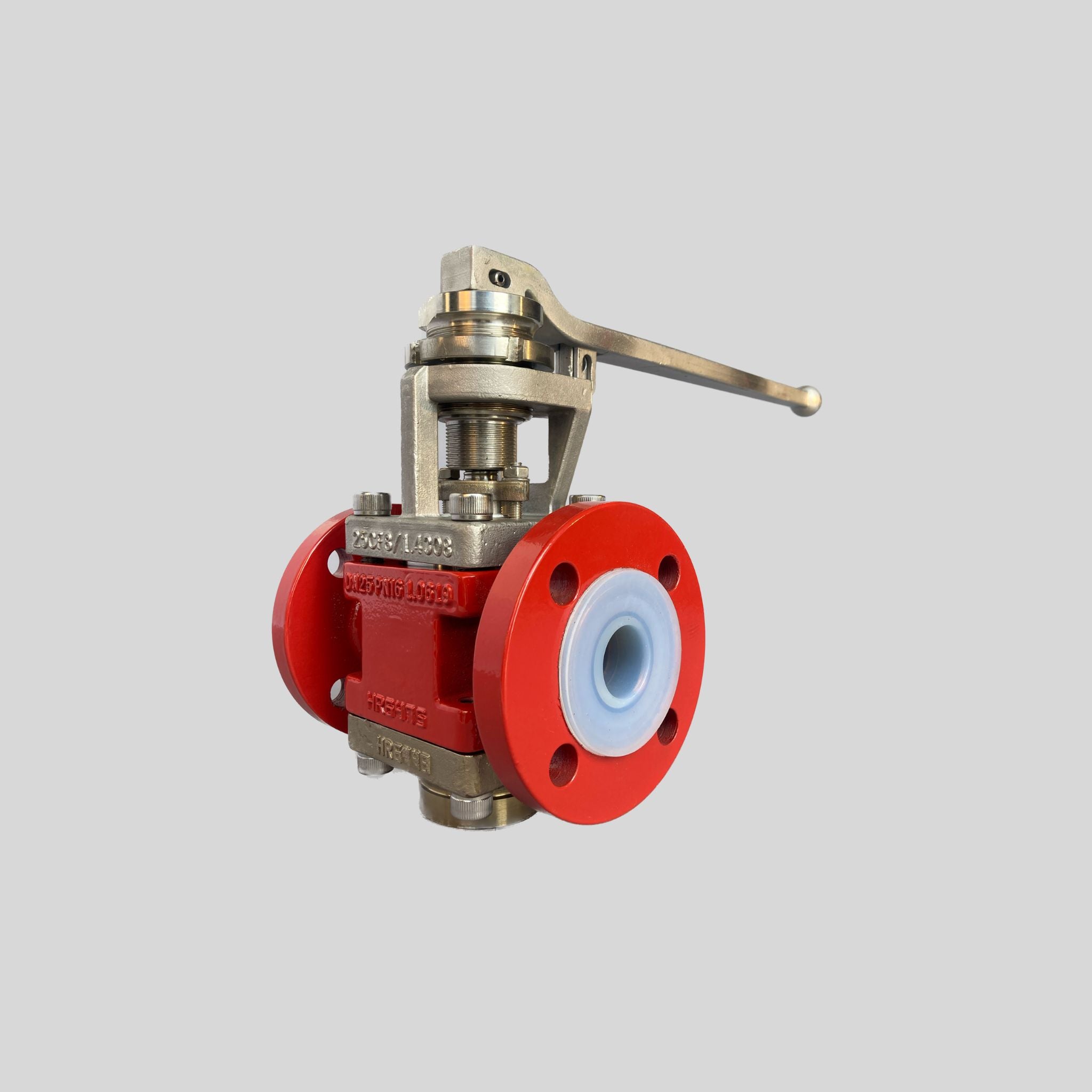

PFA-Lined Sample Valve Provaron9
Gas-tight bellows seal · flanged · DN 25 – 80 / NPS 1" – 3" · PN 16 / Class 150 · for corrosive, toxic and high-purity media
- Sizes
- DN 25 – 80 · NPS 1" – 3"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C
- Temperature
- −60 °C … +200 °C
- Stem seal
- Gas-tight PTFE bellows
Custom and spares
Beyond the catalogue
Custom-made
PFA-lined and all-PFA parts to your drawing, lost-core PFA overmoulding and large lined equipment — planning, machining, lining and testing in one house.
Spare parts
Spare parts for GFT9 products, and replacement parts for equipment of other makes from your part.
Reverse-engineered solutions
When a part is no longer available: measured from the original, redrawn and built to the same fit and function.
Provaron9 Sampling Unit
A complete sampling unit, available on request and configured to your sampling task.
Portfolio overview and documents
The portfolio overview summarises all product lines on a few pages. Leaflets, manuals and certificates are in the download area.
FAQ
Frequently asked questions
How do I order?
Open the product page, choose size, flange standard, lining and options, and send the configuration as a request for quotation. There is no cart and no payment online — we respond with a quotation.
Which flange standards are available?
Every product line is offered to EN 1092-1 and ASME B16.5 flanges. The pressure class and the face-to-face standard of each line are on its product page.
What is the Clean Room Series?
Versions of the ball valve, sight glass and sample valve with an electropolished 1.4408 (CF8M) stainless steel body for clean rooms, fabs and pharma production.
What if my valve is not in the catalogue?
We make PFA-lined and all-PFA parts to your drawing, and PFA-lined versions of your own product. Send us your drawing or your requirement.
Not sure which valve fits?
Tell us the medium, the line size and the duty. We recommend the valve and respond with a quotation.
