Regulation · PFA-lined control valve

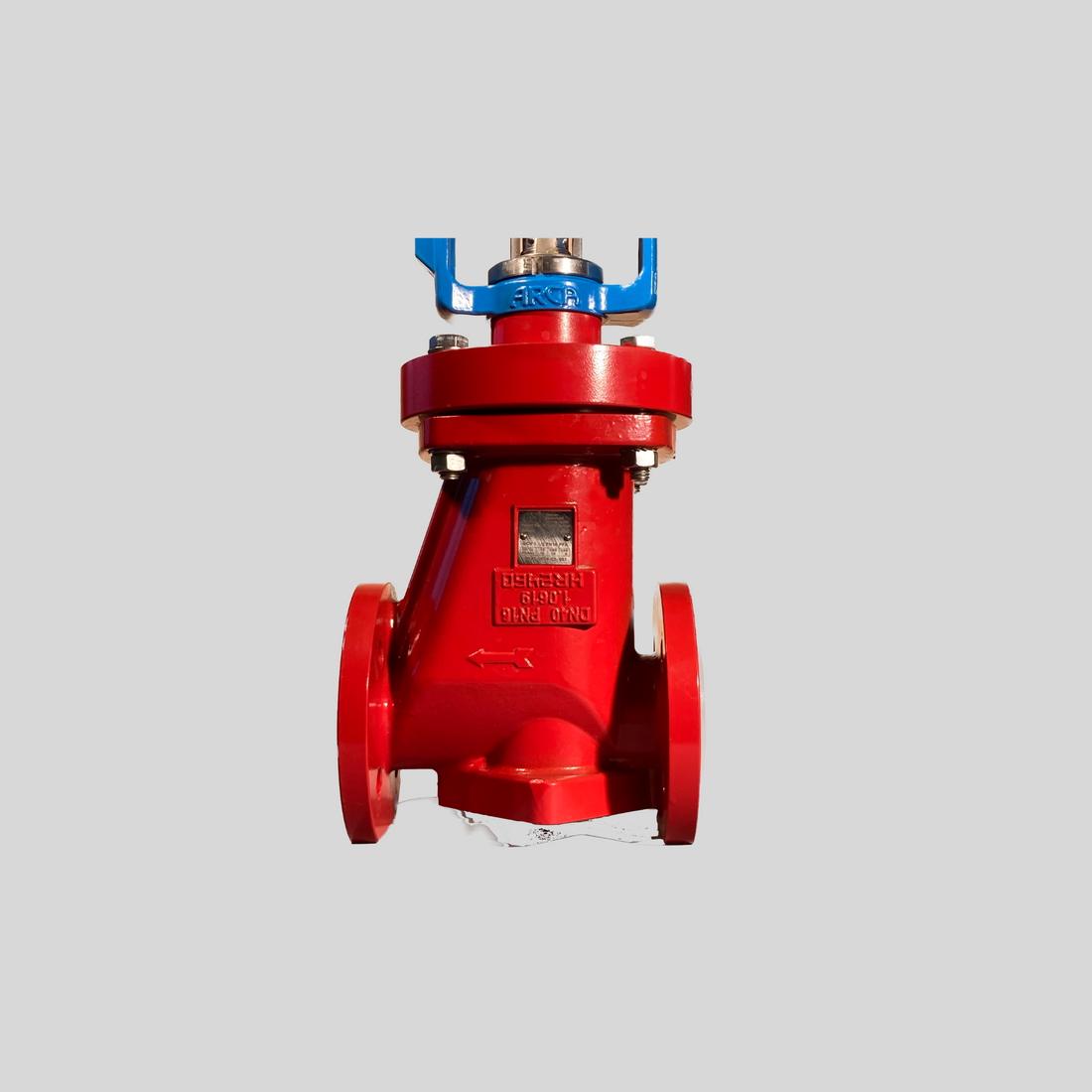

PFA-Lined Control Valve Imperium9
Globe · flanged · DN 15 – 100 / NPS ½" – 4" · PN 16 / Class 150 · PFA bellows · for corrosive media
- Sizes
- DN 15 – 100 · NPS ½" – 4"
- Pressure
- Up to 16 bar by bellows · see P-T diagram
- Temperature
- −60 °C … +180 °C by body material
- Directive
- Designed and manufactured to PED 2014/68/EU
Globe control valve with PFA-lined body, PFA bellows stem seal and characterised plug for regulating corrosive media — from micro flows to DN 100. For dosing and pH control and for flow and pressure control in acid and caustic lines, with a pneumatic actuator. One page for both norms: choose the size (EN or ASME), lining and trim, and send the configuration as a request for quotation — name the actuator make and control signal if the valve is to be actuated.
Features
Virgin PFA lining
Body lined with virgin PFA, transfer-moulded and mechanically anchored in the body; PFA/AS antistatic lining as the second option.
Suitable for vacuum service
PFA lining anchored in dovetail grooves in the body — suitable for vacuum service; limits per P-T diagram or on request.
PFA bellows stem seal
Heavy-duty PFA bellows as standard protect against leakage and corrosion; special bellows for vacuum service.
Removable bonnet (top entry)
Easy access to the internal components for maintenance.
Replaceable seat and plug
TFM-PTFE seat and plug; the interchangeable seat and plug system adjusts the Kvs value.
Characteristic and rangeability
Equal percentage, linear or on/off. Rangeability 1:25; V-plug 1:100, small Kvs from 0.01 m³/h.
V-plug and U-plug trims
For small flow rates, cavitation risk and high differential pressure. U-plug for DN 80 / DN 100 (NPS 3 / NPS 4) only.
Pneumatic or electric actuation
Pneumatic or electric actuator; positioners with HART, Profibus PA or Foundation Fieldbus.
Which version for which duty
| Duty | Choose |
|---|---|
| Dosing and pH control | Imperium9 — V-plug for small flow rates, Kvs from 0.01 m³/h |
| Flow and pressure control in acid and caustic lines | Imperium9 — standard plug + seat, PFA lining |
| Cavitation risk or high differential pressure | V-plug or U-plug trim (U-plug: DN 80 / DN 100 · NPS 3 / NPS 4 only) |
| Media where electrostatic charge must be led off | PFA/AS (antistatic) lining |
| Automated control loop | Pneumatic or electric actuator; name actuator make and control signal (e.g. 4–20 mA / HART, Profibus PA, Foundation Fieldbus) in your request |
| Vacuum service | Special bellows — vacuum limits per vacuum diagram |
Configure and request a quote
Your configuration
Reference: IMP9-DN015-PFA-PS
Technical data
| Type | Globe control valve, PFA bellows stem seal, removable bonnet (top entry); pneumatic or electric actuation |
|---|---|
| Sizes | DN 15 – 100 · NPS ½" – 4" |
| Pressure rating | PN 16 / Class 150 · heavy-duty bellows with stainless support rings: 16 bar from −10 °C to +180 °C, 12 bar below −10 °C · standard bellows and heavy-duty bellows with PTFE/carbon support rings: 10 bar up to +90 °C, falling to 7 bar at +180 °C — see P-T diagram |
| Vacuum | 0.1 mbar vacuum up to 16 bar (with special bellows); temperature-dependent vacuum limits see vacuum diagram. PFA lining anchored in dovetail grooves in the body — suitable for vacuum service; limits per P-T diagram or on request. |
| Temperature | −60 °C up to +180 °C, depending on body material — see P-T diagram |
| Flanges | EN 1092-1 (PN 16) · ASME B16.5 (Class 150, RF) |
| Face-to-face | EN 558-1 Series 1 |
| Body | 1.0619, 1.4308 or 1.4408 (A216 WCB, CF8, CF8M) |
| Lining | Virgin PFA, PFA/AS (antistatic) — PVDF on request |
| Trim | Plug and seat TFM-PTFE, interchangeable: standard plug, V-plug, U-plug (U-plug DN 80 / DN 100 · NPS 3 / NPS 4 only); PFA heavy-duty bellows |
| Characteristic | Equal percentage, linear, on/off · rangeability 1:25, V-plug 1:100 · small Kvs from 0.01 m³/h · plug guide: stem guided, seat guided optional |
| Seat leakage | Leakage class VI to ANSI/FCI 70-2; seat test to DIN EN 12266-1 |
| Actuation | Pneumatic or electric actuator; positioners with HART, Profibus PA or Foundation Fieldbus — name actuator and signal in your request |
| Options | Heating jacket |
| Testing | Every valve pressure-tested in Germany before shipment: shell test 24 bar (1.5 × PN 16) with water, shell and seat tightness 6 bar with gas, to DIN EN 12266-1; EN 10204 3.1 material certificates; spark test on request |
| Directive | Designed and manufactured to the Pressure Equipment Directive 2014/68/EU |
| Origin and quality | Made in Germany · country of origin Germany · ISO 9001:2015 certified manufacturing |
Materials
| Pos. | Part | Material |
|---|---|---|
| 1 | Body | 1.0619 or 1.4308/1.4408/1.4409 | A216/WCB,CF8/CF8M/CF3M |
| 4 | Bellow | PFA |
Wetted parts: lining (PFA or the selected lining material), PFA bellows, and TFM-PTFE plug and seat. Further lining materials on request.

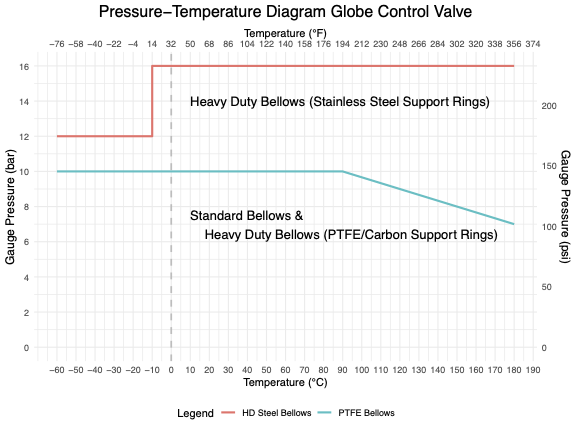

Pressure–temperature rating
Control Valve P-T-Diagram for different Bellow Configurations Lower limit −60 °C depending on body material; vacuum limits per vacuum diagram.
Dimensions
EN version — EN 1092-1 PN 16, EN 558 Series 1 · mm
| Size | L | H | ØD | Øk | Ød | n × ØB |
|---|---|---|---|---|---|---|
| DN 15 | 130 | 130 | 95 | 65 | 45 | 4 x 14 (M12) |
| DN 20 | 150 | 130 | 105 | 75 | 58 | 4 x 14 (M12) |
| DN 25 | 160 | 185 | 115 | 85 | 68 | 4 x 14 (M12) |
| DN 40 | 200 | 225 | 150 | 110 | 88 | 4 x 18 (M16) |
| DN 50 | 230 | 230 | 165 | 125 | 102 | 4 x 18 (M16) |
| DN 80 | 310 | 340 | 200 | 160 | 138 | 8 x 18 (M16) |
| DN 100 | 350 | 350 | 220 | 180 | 158 | 8 x 18 (M16) |
ASME version — ASME B16.5 Class 150 RF, ASME B16.10 · mm
| Size | L | H | ØD | Øk | Ød | n × ØB |
|---|---|---|---|---|---|---|
| NPS ½" | 130 | 130 | 88.9 | 60.3 | 34.9 | 4 x 15.9 |
| NPS ¾" | 130 | 130 | 98.4 | 69.8 | 42.9 | 4 x 15.9 |
| NPS 1" | 160 | 185 | 108 | 79.4 | 50.8 | 4 x 15.9 |
| NPS 1½" | 200 | 225 | 127 | 98.4 | 73 | 4 x 15.9 |
| NPS 2" | 230 | 230 | 152.4 | 121 | 92.1 | 4 x 19 |
| NPS 3" | 310 | 340 | 190.5 | 152.4 | 127 | 4 x 19 |
| NPS 4" | 350 | 350 | 228.6 | 190 | 157.2 | 8 x 19 |
L = face-to-face length of the valve; H = overall height of the valve; ØD = flange outside diameter; Øk = bolt circle diameter; Ød = sealing-face diameter of the flange; n × ØB = number and diameter of the flange bolt holes (thread in brackets). Kvs / Cv per seat and plug size: on request. Dimensions nominal — confirm against the certified drawing before piping design. The row of your selected size is highlighted; sizes without a row: dimensions on request.
Documents
Used in
Chemical processingHydrogen electrolysis & KOHFine chemicals & API manufacturingPharmaceutical & biopharmaWater treatmentEnergy & battery plantsSemiconductorPulp & paper
FAQ
Questions we are often asked
Which trim should I choose?
The standard plug + seat is the general trim; the V-plug is for small flow rates (rangeability 1:100, Kvs from 0.01 m³/h); the U-plug is available for DN 80 / DN 100 (NPS 3 / NPS 4) only. V- and U-plugs are made for small flow rates, cavitation risk and high differential pressure. All trims have PFA heavy-duty bellows, and seat and plug can be exchanged to adjust the Kvs value. State the flow, the inlet and outlet pressure and the medium in your request and we confirm the trim.
PFA or PFA/AS lining?
PFA is the standard lining. PFA/AS is the antistatic version for media where electrostatic charge must be led off. PVDF is available on request.
Which actuator and signal do you supply?
Pneumatic or electric actuators, with positioners for HART, Profibus PA or Foundation Fieldbus. Name the actuator make and the control signal in your request.
Can the Imperium9 be used under vacuum?
The PFA lining is anchored in dovetail grooves in the body and is suitable for vacuum service; vacuum duty needs the special bellows. Vacuum limits depend on temperature — see the vacuum diagram, or ask us for your conditions.
Which size should I choose, DN or NPS?
Choose the size by the connection norm of your line: DN sizes have EN 1092-1 PN 16 flanges, NPS sizes ASME B16.5 Class 150 flanges. The dimension table lists both.
Which documents come with each valve?
Every valve is pressure-tested in Germany before shipment and ships with EN 10204 3.1 material certificates. The Imperium9 is designed and manufactured to the Pressure Equipment Directive 2014/68/EU.
PFA or PTFE lining — what is the difference?
Both are fully fluorinated plastics with almost universal chemical resistance. PTFE cannot be melted, so PTFE liners are pressed and sintered. PFA can be melted, so we transfer-mould it into the valve body: the lining is dense, anchored in the body and follows complex shapes. If your specification says "PTFE-lined", a PFA-lined valve meets the same chemical duty — ask us for a comparison for your medium.
