Installation and operating manual

PFA Lined Ball Check Valve

Prohibron9 · transport, installation, operation and maintenance — read before you start.

Document
GFT9-PRO-UM-001
Revision
Rev. H · 2026-11-07
Language
English
Manufacturer
GFT9 · Kempen, Germany
PFA Lined Ball Check Valve

1 Technical Data

1.1 Manufacturer Information

GFT9
Hooghe Weg 16, 47906 Kempen, Germany
Email: sales@gft9.shop
Web: https://gft9.shop
Phone: +49 2152 9148591

1.2 Product Overview

Parameter Value
Name Prohibron9
Design norm DIN/ISO | ANSI
Size DN 15-200 | NPS 1"-8"
Flange dimensions EN 1092-1 (PN 16) | ASME B16.5 (Class 150, RF)
Face to face dimensions EN 558-1 Series 1
Lining PFA, PFA/AS (antistatic) — FEP, PP, PVDF on request
Body 1.0619 or 1.4408/1.4409 | A216/WCB,CF8M/CF3M
Pressure 16 bar to 100 °C, 6 bar at 200 °C · DN 150–200 / NPS 6–8: PN 10 · full vacuum (1 mbar abs) to 100 °C · see P-T diagram
Temperature range −60 °C … +200 °C — below −10 °C: 12 bar (1.0619, AD 2000 W 10), full rating with 1.4408 · see P-T diagram
Leakage rate According to DIN 12266-1, leakage rate A
Quality Body 24 bar, Back Seat 2 bar leakage rate D (other leakage rates on request), Spark Test 20kV
Certificates EU Pressure Equipment Directive 2014/68/EU

1.3 Type plate, conformity and body markings

GFT9_Example_Nameplate

Type Plate
The stainless steel name plate is permanently riveted to the body. If the operator adds their own marking, they must make sure that the valve is suitable for the application concerned.

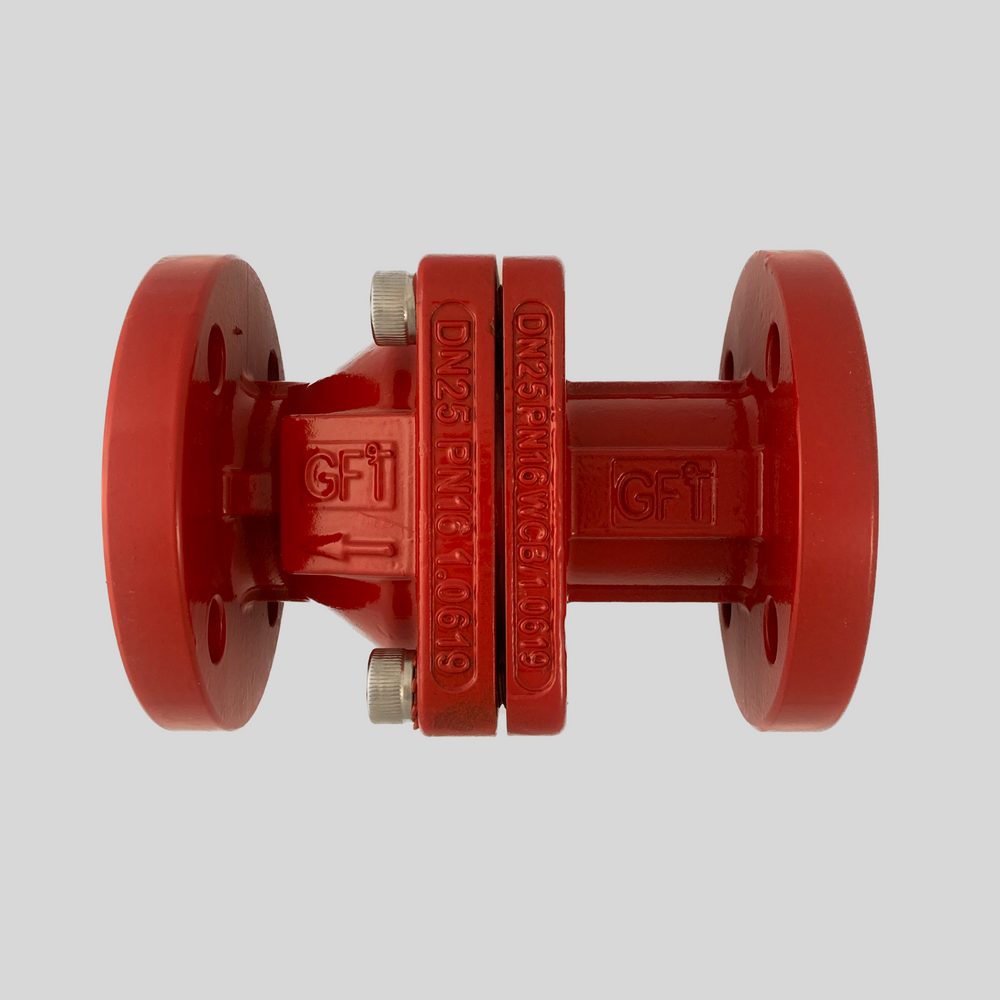

Body identification:
In accordance with DIN EN 19 and AD 2000 A4, the body is marked with:

  • Nominal size
  • Pressure rating
  • Body material
  • Manufacturer's mark
  • Melt number/Foundry identification
  • Foundry date

1.4 Weight DIN | ANSI

Weights are listed with the dimensions in Section 10. They are indicative; accurate weight on request.

1.5 Screws: Tightening Torque

Grease all screws and tighten them in diametrically opposite order!
The tightening torques stated for pipe screws and body screws must not be exceeded. An exception is described in Section 8, under 'Flange connection valve/pipe is leaking'. Recommended tightening torques are listed below.

1.5.1 Pipe Screws DIN | ANSI

DIN Pipe Screws
Size Screws Tightening Torque [Nm] — greased
DN 15 4 x M12 6
DN 25 4 x M12 10
DN 40 4 x M16 20
DN 50 4 x M16 26
DN 80 8 x M16 25
DN 100 8 x M16 35
DN 150 8 x M20 65
DN 200 12 x M20 100
ANSI Pipe Screws
Size Screws Tightening Torque [in-lb / Nm] — greased
NPS 1" 4 x ½“ 70/8
NPS 1½" 4 x ½“ 135/15
NPS 2" 4 x ⅝“ 220/15
NPS 3" 4 x ⅝“ 400/45
NPS 4" 8 x ⅝“ 310/35
NPS 8" 8 x ¾“ 1020/115

1.5.2 Body screws DIN | ANSI

DIN Body Screws
Size Screws Tightening Torque [Nm / in-lb] — greased
DN 15 4 x M12 35/310
DN 25 4 x M12 35/310
DN 40 4 x M16 45/398
DN 50 4 x M16 45/398
DN 80 6 x M16 50/442
DN 100 8 x M16 60/531
DN 150 8 x M20 150/1330
DN 200 12 x M20 175/1549
ANSI Body Screws
Size Screws Tightening Torque [in-lb / Nm] — greased
NPS 1" 4 x M12 310/35
NPS 1½" 4 x M16 398/45
NPS 2" 4 x M16 398/45
NPS 3" 6 x M16 442/50
NPS 4" 8 x M16 531/60
NPS 6" 8 x M20 1330/150
NPS 8" 12 x M20 1549/175

1.6 Flow Dynamics DIN | ANSI

1.6.1 KVS | CV Value

DIN Flow Rate
Size KVS Value
DN 15 8.5
DN 25 27
DN 40 97
DN 50 122
DN 80 300
DN 100 410
DN 150 360
DN 200 on request
ANSI Flow Rate
Size CV Value
NPS 1" 31
NPS 1½" 113
NPS 2" 142
NPS 3" 348
NPS 4" 476
NPS 6" 418
NPS 8" on request

1.7 Pressure Temperature Diagram

Ball Check Valve — pressure-temperature diagram

P-T diagram with vacuum range: 16 bar −10 … 100 °C, linear to 6 bar at 200 °C · DN 150–200 / NPS 6–8: PN 10 · −60 °C at 12 bar (AD 2000-Merkblatt W 10) · one diagram for 1.0619, 1.4408 and 1.4409 bodies · full vacuum (1 mbar abs) to 100 °C

2. Notes on safety

Read this manual before installing and commissioning the valve. It contains the essential instructions for installation, operation and maintenance.
Keep the manual where the valve is in use, so that staff can refer to it at any time.
For use in potentially explosive atmospheres, also follow Section 3.
Only qualified personnel may install, operate and service the valve.
The operator must define the staff's responsibilities and authority and how the staff are supervised.

Every warning and sign on the ball check valve itself must be followed and kept fully legible.
Disregarding these safety instructions can void all claims for damages.

It can also lead, for example, to the following hazards:

  • Loss of essential functions of the valve or plant.
  • Harm to the environment from escaping hazardous substances.
  • Danger to persons from electrical, mechanical and chemical effects.
Hazard_Sign_PFA_Lined_Valve_Manual

Carry out all transport work in line with recognised good engineering practice and the accident prevention regulations.

Information_Sign_PFA_Lined_Valve_Manual

Safety symbol!

Disregarding this note can endanger the ball check valve and its function.

2.1 Intended use

GFT9 ball check valves let fluids pass in the direction of the flow arrow on the body and shut off flow in the opposite direction. They are pressure-containing non-return components as defined by the Pressure Equipment Directive (PED). However, shut-off of the passage of fluids in the opposite direction may be cancelled out, depending on the installation position, ball design, differential pressure and medium.

The valves are suitable for gases, vapours and liquids of fluid group 1 as defined in the PED, and they have a corrosion-resistant plastic lining.

Solids in the medium can increase wear, damage the sealing faces or shorten the service life of the valve. If the operating conditions are to differ from those the valve was ordered for, the operator must carefully check that design, materials and accessories still suit the new application. (Consult the manufacturer.)

2.2 For the customer / operator

The operator is responsible for ensuring that:

  • hot or cold valve parts are guarded against accidental contact
  • the valve is correctly installed in the pipeline
  • flow velocities in continuous service stay within the normal limits for the line.
  • an appropriate collection system is used to contain drip leaks/leaks locally and harmlessly.

These points are not the manufacturer's responsibility.

The design does not take seismic loads into account.

Fire protection to DIN EN ISO 10497 cannot be provided, because the lining and other components are made of plastic.

2.3 Improper operation

Safe and reliable operation depends on using the valve only as described under Intended use (Section 2.1).

Hazard_Sign_PFA_Lined_Valve_Manual

General hazard symbol!

Danger to persons.

3. Use in potentially explosive atmospheres

The valve has no electrical parts and no drive of its own (an actuator is an attachment). Its surface temperature is determined by the medium (and, on heated valves, by the heating medium). The valve carries no ATEX marking.

This manual does not give a general approval for use in potentially explosive atmospheres. Whether the valve may be used in such an area is decided for the specific application, in the operator's own assessment of the zone, the gas or dust group, the temperature class and the electrostatic behaviour of the medium.

GFT9 supports this assessment for a concrete application. On request we provide the design data needed for it — materials, lining type (standard or antistatic), earthing path, exposed non-conductive surfaces — and review the case with you. Contact: sales@gft9.shop.

Points the assessment must cover (from experience with lined valves; not a complete list):

  • Earthing of the valve, e.g. tooth lock washers under the pipe screws or an earthing cable (Section 6, Grounding).
  • Chargeable media (conductivity below 10⁻⁸ S/m): charge can build up on a standard lining; an antistatic lining (PFA/AS: surface resistance below 10⁹ Ω, leakage resistance below 10⁶ Ω) leads it away. With a standard lining the valve must stay completely filled or the atmosphere inside must be inerted; non-antistatic parts can limit the permitted zone and gas group.
  • Exposed non-conductive surfaces, e.g. lining at the flange faces or a sight-glass window.
  • Medium temperature and heating-medium temperature against the temperature class.
  • Actuators, positioners, limit switches, solenoid valves, sensors and heating jackets: their own explosion-protection conformity, per their manuals.
  • Abrasive media and dust deposits on the outside: inspection and cleaning intervals.
  • Plastic-lined valves must not be used with carbon disulfide.
  • Ball moves only with the medium; no operating drive.

WARNING — Ignition from improper use. Overheating, electrostatic charge or sparks can arise if the valve is used outside its intended use. → Use the valve only as described in this manual and as confirmed in the assessment for your application.

4. Safety note for TA Luft (Clean Air Act) versions

A TA Luft certificate is held for the Spheron9 ball valve. For other valves a TA Luft version is available on request. Any TA Luft certificate or manufacturer declaration is valid only if these operating instructions have been read and are followed.

  • Maintain the valve at regular intervals, check that the bolted connections are tight and retighten them where necessary.

5. Transport, storage and disposal

Handle the goods carefully in transit. Protect the valve from knocks and impacts while it is being transported.

Immediately on receipt, check that the consignment is complete and free of transport damage.

Take care not to damage the protective paint coat.

Hazard_Sign_PFA_Lined_Valve_Manual

Carry out all transport work in line with recognised good engineering practice and the accident prevention regulations.

Information_Sign_PFA_Lined_Valve_Manual

The valve is delivered with flange caps fitted. They keep dirt off the plastic surfaces and protect them from mechanical damage. Remove them only immediately before installation.

5.1 Storage

Valves that are not installed straight away must be stored correctly.
Store them in a dry, well-ventilated room free of vibration, at a temperature that is as constant as possible.
Keep elastomer parts out of UV light.
As a rule, the valves should not be stored for more than 10 years.

5.2 Return consignments

A safety information sheet / general safety certificate stating the field of application must always be enclosed with any return consignment.
Contact the Manufacturer for more Information in that regard.
The safety precautions and decontamination measures must be stated.

Hazard_Sign_PFA_Lined_Valve_Manual

Valves that have handled aggressive or toxic media must be rinsed and cleaned before they are returned to the manufacturer's works

5.3 Disposal

Parts of the valve may carry medium residues that are harmful to health and the environment; cleaning alone is therefore not enough.

Hazard_Sign_PFA_Lined_Valve_Manual

The medium can injure people and harm the environment!

Wear suitable personal protective equipment for all work on the valve.
Before disposing of the valve:

  • Collect any escaped medium or other substances and dispose of them according to local regulations.
  • Neutralise medium remaining in the valve.
  • Sort the valve materials by type (plastics, metals, etc.) and dispose of each according to local regulations.

6. Installation

Check the valve for transport damage on receipt. Do not install a damaged ball check valve.

  • Clean the valve and the adjoining pipework thoroughly before installation, removing all dirt and in particular hard particles.
  • Install the valve free of stress between aligned pipes, and tighten the bolts to the correct torque.

6.1 Flange caps and gaskets

Leave the flange caps on until the valve is about to be installed.

If the plastic sealing faces are at particular risk of damage, for example from metal or enamelled mating flanges, PTFE-lined gaskets with metal inserts are recommended. Contact the Manufacturer for further discussion.

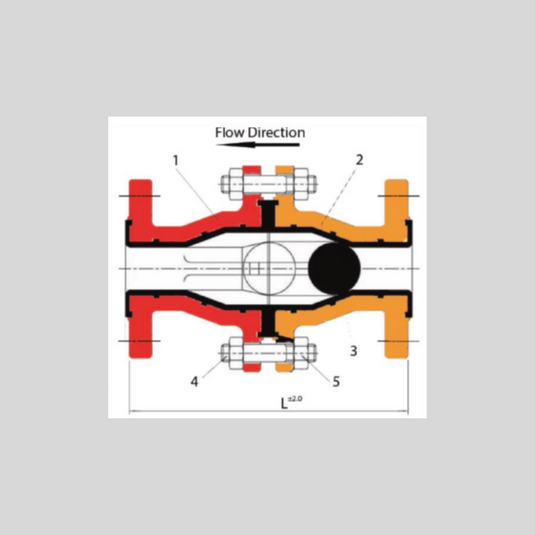

6.2 Direction of flow and installation position

The installation positions of the check valves in the pipe are horizontal, inclined or vertical.
The direction of flow is marked on the valve, the shut-off operation is already initiated by the weight of the shut-off element when delivery decreases.
The ball check valves are highly streamlined. The solid ball seals against a falling or back-flowing fluid level.
In the vertical installation position the ball then floats on the rising fluid level and seals upwards into the seat. Horizontally installed, a minimum differential pressure of 1 bar (with a hollow ball 0.5 bar) is required to push the ball into the seat.

6.3 Grounding

The valve must be grounded. The simplest way is to fit tooth lock washers under the pipe screws. Fit them under one pipe screw on each flange.

Upon customer request a set screw M6 is attached to each flange with a hex nut and washer as an additional earthing connection.

If this is not possible, grounding must be provided another way, e.g. with an earthing cable.

6.4 Test pressure

The test pressure PT must not be higher than 1.5 x PS(PN), with PS(PN) as stated in the valve marking.

7. Operation

7.1 Initial commissioning

The valves are normally leak-tested with air or water at the factory. Check the cover screws before commissioning. For tightening torques, see Section 1.5!

When the valve reaches operating pressure and temperature for the first time, retighten all bolted joints to prevent leaks. For tightening torques, see Section 1.5.

Hazard_Sign_PFA_Lined_Valve_Manual

Unless dry delivery was agreed, some water may remain in the flow passage of the valve. This water may react with the medium.

7.2 Improper operation and their consequences

  • Prevent the medium from crystallising, for example by heating. In extreme cases the valve can block.
  • Solids in the medium increase wear.
  • Operating outside the pressure-temperature diagram can damage the valve.
  • Operating under cavitation increases wear.

7.3 Shutdown

Comply with the local regulations when dismantling the valve!

As soon as the valve has been removed, fit flange caps to protect the flanges from mechanical damage. See also Section 6.1.
Lock out remote-controlled actuators so that they cannot start unexpectedly.

Hazard_Sign_PFA_Lined_Valve_Manual

Before undoing the flange connection, make sure that the plant has been depressurised and emptied!

Hazard_Sign_PFA_Lined_Valve_Manual

Clean the valve thoroughly before any repair. Medium can remain inside even after correct draining and flushing.

8. Malfunctions

Flange connection valve/pipe is leaking

  1. Retighten the flange screws to the torque given in Section 1.5.1.
  2. If the joint still leaks, the screws may be tightened up to 10% above the recommended torque.
  3. If the leak persists, dismantle the valve and inspect it.

Flange connection main body/body or body/cover is leaking

  • Retighten the body screws crosswise to the torque given in Section 1.5.2. If the leak persists, see paragraph "Flange connection valve/pipe is leaking", steps 2–3.

Valve does not close

  • Are there solids between the sealing surface and the ball?
  • Is the sealing surface damaged?
  • Is the ball damaged?

Wear marks or flats on the ball (found at inspection)

  1. Solids or abrasive constituents in the medium increase wear (Sections 2.1 and 7.2).
  2. Replace the ball (Pos. 3), see Section 9.1.
  3. Shorten the inspection interval (Section 3.1).

9. Maintenance

Before you start

  1. Make sure that the plant is depressurised and emptied before undoing any connection (Section 7).
  2. Clean the valve thoroughly before starting any repair work. Medium can remain inside even after correct draining and flushing (Section 7). Wear suitable personal protective equipment for all work on the valve (Section 5.3).
  3. As soon as the valve is out of the line, fit flange caps to protect the flanges from mechanical damage (Section 6.1).
  • Repairs may only be carried out by qualified staff with suitable tools.

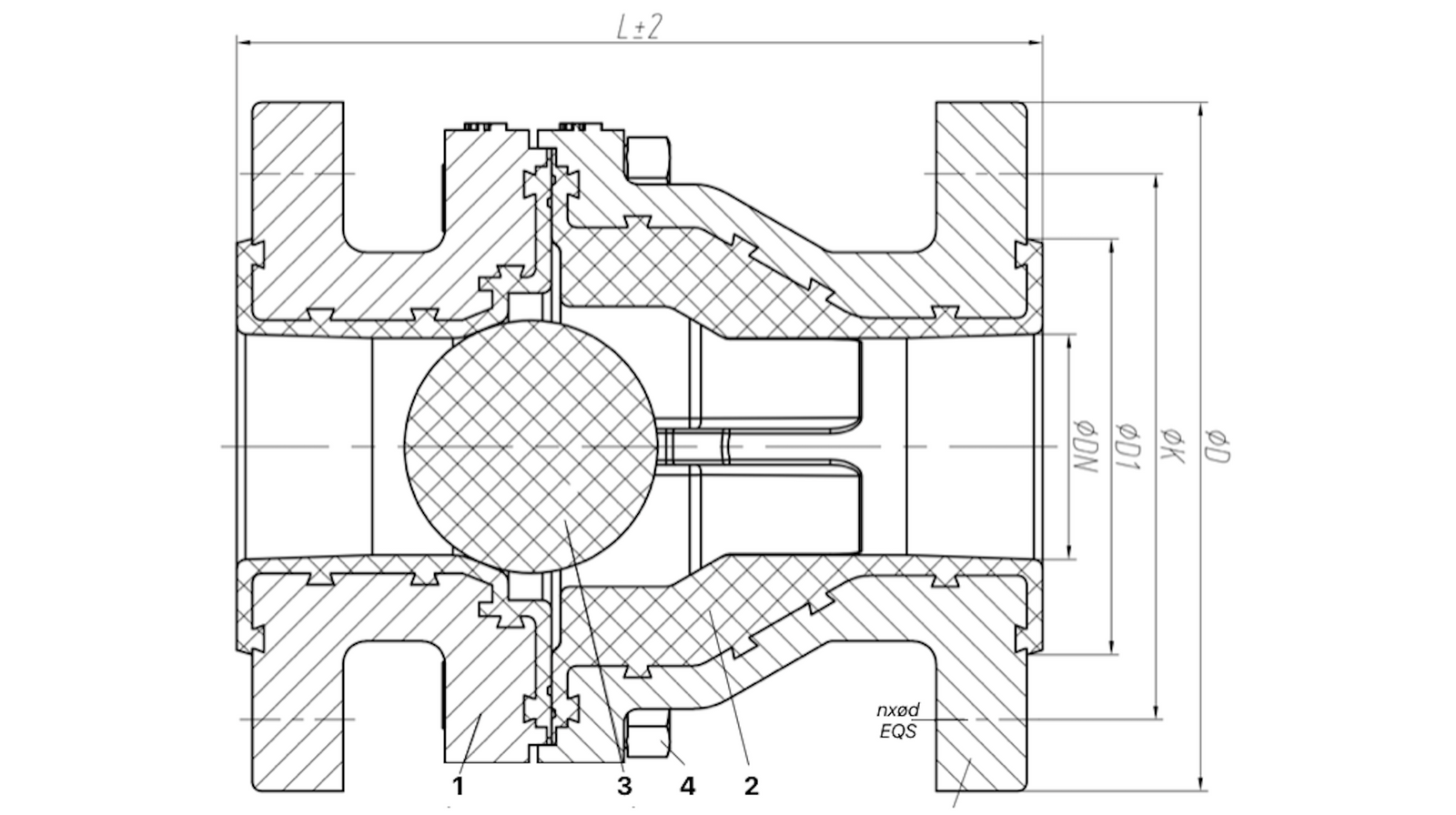

  • The sectional drawing in Section 11 shows the position, name and item number of every part of the valve.
  • When ordering spare parts, quote all data from the valve identification.
  • Use genuine GFT9 spare parts only.
  • To avoid leaks, check the bolted connections regularly, at intervals suited to the operating conditions.
  • For tightening torques, see Section 1.5

Hazard_Sign_PFA_Lined_Valve_Manual

Make sure that when working on the ball check valve it is drained. See also Section 7.3.

9.1 Dismantling

9.1.1 Replacing Worn Part

  • Undo the body screws crosswise and separate main body and body end piece. Replace the ball (Pos. 3).
  • Assembly is performed in reverse sequence.

9.2 Assembly

  • Prior to assembly all parts are to be cleaned and the plastic-lined parts checked for damage.
  • Bolt main body and body end piece together. Tighten the body screws in diametrically opposite sequence to a tightening torque in accordance with Section 1.5.2.

10. Dimensional Drawings

10.1 Dimensional Measurements DIN

Ball Check Valve — dimensional drawing
Size L Ød (RF) Øk ØD n × ØB Weight (indicative)
DN 15 130 mm 45 mm 65 mm 95 mm 4 x 14 (M12) 3 kg
DN 25 160 mm 68 mm 85 mm 115 mm 4 x 14 (M12) 4.9 kg
DN 40 200 mm 88 mm 110 mm 150 mm 4 x 18 (M16) 8.9 kg
DN 50 230 mm 102 mm 125 mm 165 mm 4 x 18 (M16) 12 kg
DN 80 310 mm 138 mm 160 mm 200 mm 8 x 18 (M16) 26 kg
DN 100 350 mm 158 mm 180 mm 220 mm 8 x 18 (M16) 35 kg
DN 150 480 mm 212 mm 240 mm 285 mm 8 x 22 (M20) 70 kg
DN 200 600 mm 268 mm 295 mm 340 mm 12 x 22 (M20) 125 kg

Indicative weights, in line with body volume. Accurate weight on request: sales@gft9.shop.

10.2 Dimensional Measurements ANSI

Ball Check Valve — dimensional drawing
Size L Ød (RF) Øk ØD n × ØB Weight (indicative)
NPS 1" 160 mm 50.8 mm 79.4 mm 108 mm 4 x 15.9 4.9 kg
NPS 1½" 200 mm 73 mm 98.4 mm 127 mm 4 x 15.9 8.9 kg
NPS 2" 230 mm 92.1 mm 120.7 mm 152.4 mm 4 x 19.1 12 kg
NPS 3" 310 mm 127 mm 152.4 mm 190.5 mm 4 x 19.1 26 kg
NPS 4" 350 mm 157.2 mm 190.5 mm 228.6 mm 8 x 19.1 35 kg
NPS 6" 480 mm 216 mm 241.3 mm 279.4 mm 8 x 22.2 70 kg
NPS 8" 600 mm 269.9 mm 298.5 mm 342.9 mm 8 x 22.2 125 kg

Indicative weights, in line with body volume. Accurate weight on request: sales@gft9.shop.

11. Sectional Drawing

Ball Check Valve — sectional drawing with parts list positions
Pos. Item Material
1 Body 1.0619 or 1.4408 / 1.4409 (A216 WCB, CF8M / CF3M)
2 Lining PFA, PFA/AS (antistatic) — FEP, PP, PVDF on request
3 Ball PTFE massive or hollow
5 Hex Head Screws with Washers A2/A4-70 Stainless Steel

12. Declaration of Conformity

The EU declaration of conformity for this product is supplied with every delivery and is available on request: sales@gft9.shop.

The product is designed and manufactured in accordance with the Pressure Equipment Directive 2014/68/EU.
