Installation and operating manual

PFA Lined Sample Valve

Provaron9 · transport, installation, operation and maintenance — read before you start.

Document
GFT9-PRV-UM-001
Revision
Rev. I · 2026-11-07
Language
English
Manufacturer
GFT9 · Kempen, Germany

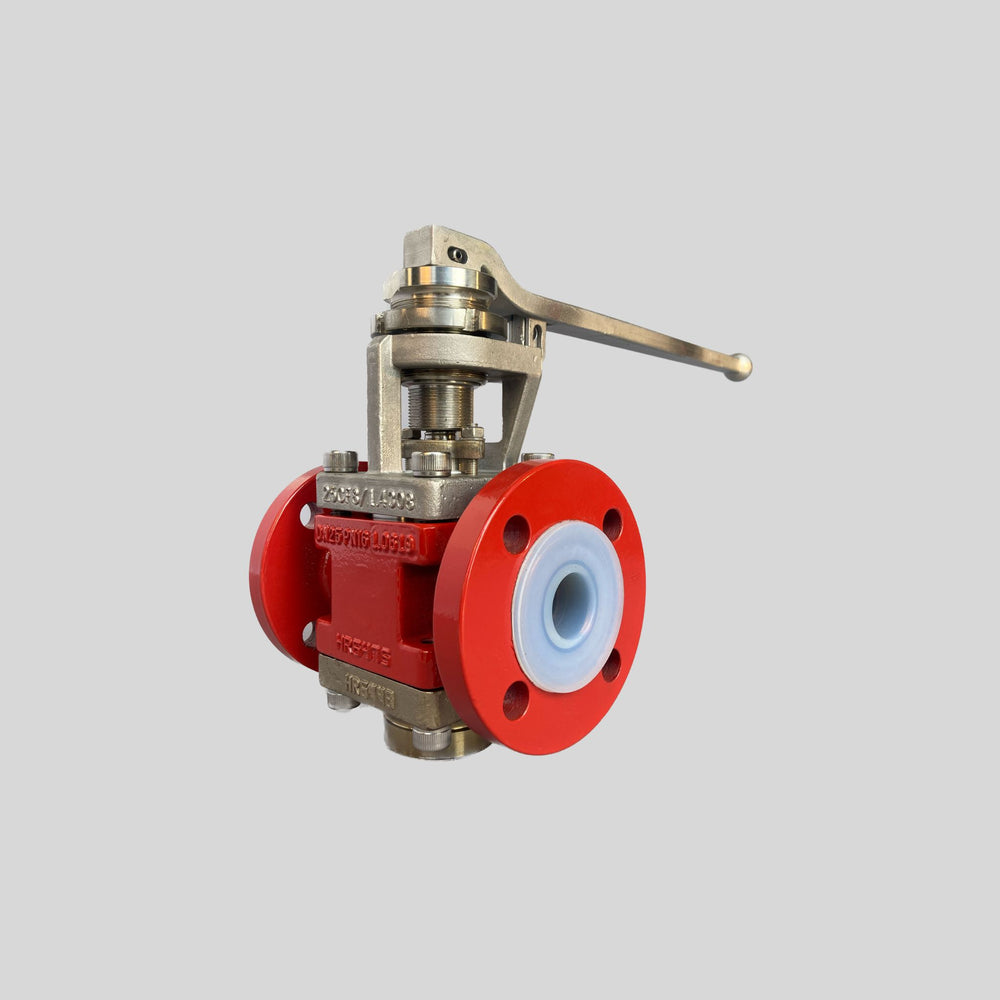

PFA Lined Sample Valve

1 Technical Data

1.1 Manufacturer Information

GFT9
Hooghe Weg 16, 47906 Kempen, Germany
Email: sales@gft9.shop
Web: https://gft9.shop
Phone: +49 2152 9148591

1.2 Product Overview

Parameter Value
Name Provaron9
Design norm DIN/ISO | ANSI
Size DN25-80 | NPS 1”-3”
Flange dimensions EN 1092-1 (PN 16) | ASME B16.5 (Class 150, RF)
Face to face dimensions PN (EN 558-1), Series 1
Lining PFA, PFA/AS (antistatic) — PFA/UP, PVDF, PP, UHMW-PE on request
Body 1.0619 (A216 Gr. WCB), 1.4408 (CF8M)
Pressure 16 bar to 100 °C, 6 bar at 200 °C · full vacuum (1 mbar abs) to 100 °C · see P-T diagram
Temperature range −60 °C … +200 °C — below −10 °C: 12 bar (1.0619, AD 2000 W 10), full rating with 1.4408 · see P-T diagram
Leakage rate DIN EN 12266-1, leakage rate A: Gas-tight
Quality Body 24 bar Dielectric strength test 20 kV
Certificates EU Pressure Equipment Directive 2014/68/EU

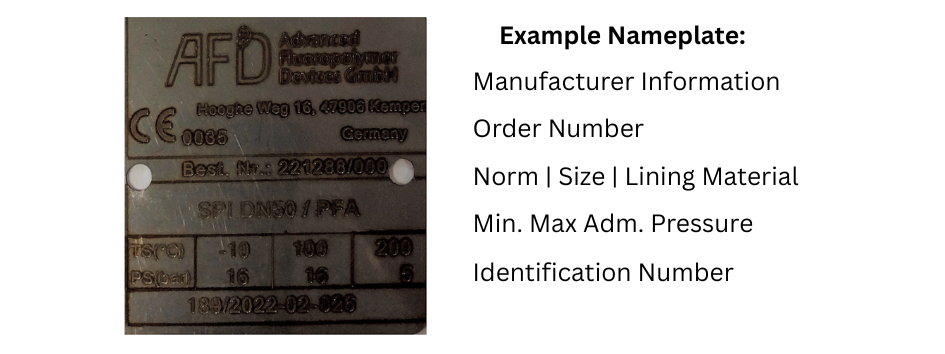

1.3 Type plate, conformity and body markings

GFT9_Example_Nameplate

Type Plate
The stainless steel name plate is permanently riveted to the body. If the operator adds their own marking, they must make sure that the valve is suitable for the application concerned.

Body identification:
In accordance with DIN EN 19 and AD 2000 A4, the body is marked with:

  • Nominal size
  • Pressure rating
  • Body material
  • Manufacturer's mark
  • Melt number/Foundry identification
  • Foundry date

1.4 Weight DIN | ANSI

Weights are listed with the dimensions in Section 10. They are indicative; accurate weight on request.

1.5 Screws: Tightening Torque

Grease all screws and tighten them in diametrically opposite order!
The tightening torques stated for pipe screws and body screws must not be exceeded. An exception is described in Section 8, under 'Flange connection valve/pipe is leaking'. Recommended tightening torques are listed below.

1.5.1 Pipe Screws DIN | ANSI

DIN Pipe Screws
Size Screws Tightening Torque [Nm] — greased
DN 25 4 x M12 10
DN 40 4 x M16 20
DN 50 4 x M16 26
DN 80 8 x M16 25
ANSI Pipe Screws
Size Screws Tightening Torque [in-lb / Nm] — greased
NPS 1" 4 x ½“ 70/8
NPS 2" 4 x ⅝“ 220/15
NPS 1½" 4 x ½“ 135/15
NPS 3" 4 x ⅝“ 400/45

1.5.2 Body screws DIN | ANSI

DIN Body Screws
Size Screws Tightening Torque [Nm / in-lb] — greased
DN 25 4 x M12 35/310
DN 40 4 x M16 45/398
DN 50 4 x M16 45/398
DN 80 8 x M16 50/442
ANSI Body Screws
Size Screws Tightening Torque [in-lb / Nm] — greased
NPS 1" 4 x M12 310/35
NPS 2" 4 x M16 398/45
NPS 1½" 4 x M16 398/45
NPS 3" 8 x M20 442/50

1.6 Flow Dynamics DIN | ANSI

1.6.1 KVS | CV Value

DIN Flow Rate
Size KVS Value
DN 25 conical 0.385 / flat 2.56
DN 40 conical 0.385 / flat 2.56
DN 50 conical 0.385 / flat 2.56
DN 80 conical 0.385 / flat 2.56
ANSI Flow Rate
Size CV Value
NPS 1" conical 0.448 / flat 2.98
NPS 2" conical 0.448 / flat 2.98
NPS 1½" conical 0.448 / flat 2.98
NPS 3" conical 0.448 / flat 2.98

1.7 Pressure Temperature Diagram

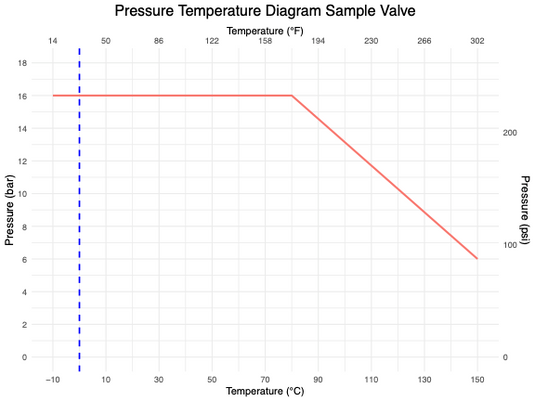

Sample Valve — pressure-temperature diagram

P-T diagram with vacuum range: 16 bar −10 … 100 °C, linear to 6 bar at 200 °C · −60 °C at 12 bar (AD 2000-Merkblatt W 10) · one diagram for 1.0619, 1.4408 and 1.4409 bodies · full vacuum (1 mbar abs) to 100 °C

2. Notes on safety

Read this manual before installing and commissioning the valve. It contains the essential instructions for installation, operation and maintenance.
Keep the manual where the valve is in use, so that staff can refer to it at any time.
For use in potentially explosive atmospheres, also follow Section 3.
Only qualified personnel may install, operate and service the valve.
The operator must define the staff's responsibilities and authority and how the staff are supervised.

Every warning and sign on the sample valve itself must be followed and kept fully legible.
Disregarding these safety instructions can void all claims for damages.

It can also lead, for example, to the following hazards:

  • Loss of essential functions of the valve or plant.
  • Danger to persons from electrical, mechanical and chemical effects.
  • Harm to the environment from escaping hazardous substances.
Hazard_Sign_PFA_Lined_Valve_Manual

General hazard symbol!
Danger to persons.

Information_Sign_PFA_Lined_Valve_Manual

Safety symbol!
Disregarding this note can endanger the sample valve and its function.

2.1 Intended use

GFT9 sampling valves are designed for taking liquid samples. They are pressure-maintaining components as defined by the Pressure Equipment Directive (PED).

The Provaron9 is only intended for horizontal installation (vertical installation only with special adapter).
The valves are suitable for non-boiling liquids of group 1 in acc. with the Pressure Equipment Directive (PED). Solids in the medium can increase wear, damage the sealing faces or shorten the service life of the valve.

If the operating conditions are to differ from those the valve was ordered for, the operator must carefully check that design, materials and accessories still suit the new application (consult the manufacturer).

2.2 For the customer / operator

The operator is responsible for ensuring that:

  • hot or cold valve parts are guarded against accidental contact
  • the valve is correctly installed in the pipeline
  • flow velocities in continuous service stay within the normal limits for the line.
  • an appropriate collection system is used to contain drip leaks/leaks locally and harmlessly.

These points are not the manufacturer's responsibility.

The design does not take seismic loads into account.

Fire protection to DIN EN ISO 10497 cannot be provided, because the lining and other components are made of plastic.

2.3 Improper operation

Safe and reliable operation depends on using the valve only as described under Intended use (Section 2.1).

Hazard_Sign_PFA_Lined_Valve_Manual

The valve is delivered with flange caps fitted. They keep dirt off the plastic surfaces and protect them from mechanical damage. Remove them only immediately before installation.

3. Use in potentially explosive atmospheres

The valve has no electrical parts and no drive of its own (an actuator is an attachment). Its surface temperature is determined by the medium (and, on heated valves, by the heating medium). The valve carries no ATEX marking.

This manual does not give a general approval for use in potentially explosive atmospheres. Whether the valve may be used in such an area is decided for the specific application, in the operator's own assessment of the zone, the gas or dust group, the temperature class and the electrostatic behaviour of the medium.

GFT9 supports this assessment for a concrete application. On request we provide the design data needed for it — materials, lining type (standard or antistatic), earthing path, exposed non-conductive surfaces — and review the case with you. Contact: sales@gft9.shop.

Points the assessment must cover (from experience with lined valves; not a complete list):

  • Earthing of the valve, e.g. tooth lock washers under the pipe screws or an earthing cable (Section 6, Grounding).
  • Chargeable media (conductivity below 10⁻⁸ S/m): charge can build up on a standard lining; an antistatic lining (PFA/AS: surface resistance below 10⁹ Ω, leakage resistance below 10⁶ Ω) leads it away. With a standard lining the valve must stay completely filled or the atmosphere inside must be inerted; non-antistatic parts can limit the permitted zone and gas group.
  • Exposed non-conductive surfaces, e.g. lining at the flange faces or a sight-glass window.
  • Medium temperature and heating-medium temperature against the temperature class.
  • Actuators, positioners, limit switches, solenoid valves, sensors and heating jackets: their own explosion-protection conformity, per their manuals.
  • Abrasive media and dust deposits on the outside: inspection and cleaning intervals.
  • Plastic-lined valves must not be used with carbon disulfide.
  • Hand-operated as standard; an actuator is an attachment with its own conformity.
  • Filling an open or vented bottle with a chargeable liquid generates charge.

WARNING — Ignition from improper use. Overheating, electrostatic charge or sparks can arise if the valve is used outside its intended use. → Use the valve only as described in this manual and as confirmed in the assessment for your application.

4. Safety note for TA Luft (Clean Air Act) versions

A TA Luft certificate is held for the Spheron9 ball valve. For other valves a TA Luft version is available on request. Any TA Luft certificate or manufacturer declaration is valid only if these operating instructions have been read and are followed.

  • Maintain the valve at regular intervals, check that the bolted connections are tight and retighten them where necessary.

5. Transport, storage and disposal

Handle the goods carefully in transit. Protect the valve from knocks and impacts while it is being transported.

Immediately on receipt, check that the consignment is complete and free of transport damage.

Take care not to damage the protective paint coat.

Hazard_Sign_PFA_Lined_Valve_Manual

Carry out all transport work in line with recognised good engineering practice and the accident prevention regulations.

Information_Sign_PFA_Lined_Valve_Manual

The valve is delivered with flange caps fitted. They keep dirt off the plastic surfaces and protect them from mechanical damage. Remove them only immediately before installation.

5.1 Storage

Valves that are not installed straight away must be stored correctly.
Store them in a dry, well-ventilated room free of vibration, at a temperature that is as constant as possible.
Keep elastomer parts out of UV light.
As a rule, the valves should not be stored for more than 10 years.

5.2 Return consignments

A safety information sheet / general safety certificate stating the field of application must always be enclosed with any return consignment.
Contact the Manufacturer for more Information in that regard.
The safety precautions and decontamination measures must be stated.

Hazard_Sign_PFA_Lined_Valve_Manual

Valves that have handled aggressive or toxic media must be rinsed and cleaned before they are returned to the manufacturer's works

5.3 Disposal

Parts of the valve may carry medium residues that are harmful to health and the environment; cleaning alone is therefore not enough.

Hazard_Sign_PFA_Lined_Valve_Manual

The medium can injure people and harm the environment!

Wear suitable personal protective equipment for all work on the valve.
Before disposing of the valve:

  • Collect any escaped medium or other substances and dispose of them according to local regulations.
  • Neutralise medium remaining in the valve.
  • Sort the valve materials by type (plastics, metals, etc.) and dispose of each according to local regulations.

6. Installation

  • Check the valve for transport damage on receipt. Do not install a damaged sample valve.
  • Clean the valve and the adjoining pipework thoroughly before installation, removing all dirt and in particular hard particles.
  • Install the valve free of stress between aligned pipes, and tighten the bolts to the correct torque.
  • The lever must move freely (deadman's position).

6.1 Flange caps and gaskets

Leave the flange caps on until the valve is about to be installed.

If the plastic sealing faces are at particular risk of damage, for example from metal or enamelled mating flanges, PTFE-lined gaskets with metal inserts are recommended. Contact the Manufacturer for further discussion.

6.2 Direction of flow and installation position

The valve can be installed regardless of the direction of flow.

The installation position is normally horizontal with the bottle connection pointing vertically downwards (deviations from this position require a special bottle connection). Contact the Manufacturer if not discussed prior.

6.3 Grounding

The valve must be grounded. The simplest way is to fit tooth lock washers under the pipe screws. Fit them under one pipe screw on each flange.

Upon customer request a set screw M6 is attached to each flange with a hex nut and washer as an additional earthing connection.

If this is not possible, grounding must be provided another way, e.g. with an earthing cable.

6.4 Test pressure

The test pressure PT must not be higher than 1.5 x PS(PN), with PS(PN) as stated in the valve marking.

6.5 Star knob

The stroke and thus the pressure reduction and medium flow can be influenced with the star knob.

Moreover, the star knob can be used to close the valve like a manual valve.

It also served to enforce tightness in case of damaged seat sealing surfaces or seized particles.

6.6 High-viscosity media / Low operating pressure

With the version "design for high-viscosity media" the changed operating limits acc. to the name plate must be observed and the travel must be set according to the setting instructions in Section 6.7

6.7 Setting instructions

  • Press the sampling lever in the direction of the
    valve.
  • Slowly turn the star knob counterclockwise until the flow into the sampling bottle corresponds to the intensity you want.
  • Release lever and lock the star knob in this position.

With this setting, the flow of the sample into the bottle stays within the desired range for each further sampling process, as long as the internal pressure does not change.

If the operating pressures vary, we recommend you for safety's sake to turn the star knob after every sampling operation clockwise again until it reaches zero point
(lever cannot execute any travel).

7. Operation

7.1 Initial commissioning

The valves are normally leak-tested with air or water at the factory. Check the cover screws before commissioning. For tightening torques, see Section 1.5!

When the valve reaches operating pressure and temperature for the first time, retighten all bolted joints to prevent leaks. For tightening torques, see Section 1.5.

Hazard_Sign_PFA_Lined_Valve_Manual

Unless dry delivery was agreed, some water may remain in the flow passage of the valve. This water may react with the medium.

7.2 Improper operation and their consequences

  • Prevent the medium from crystallising, for example by heating. Damage to the seat or cone would be inevitable. In extreme cases a leak may occur.
  • Solids in the medium increase wear.
  • Violent opening or rapid filling may cause the bottle to burst.
  • Operating outside the pressure-temperature diagram can damage the valve.
  • Do not transport the valve using the lever.
  • Do not extend the lever, as this can cause damage.
  • At the customer's request, the middle hole in the lever is drilled through. If the lever is then locked in the lower hole to take samples and if, in addition, a pin is inserted into the middle hole, it must be ensured that sampling does not take place accidentally

7.3 Sampling (Standard)

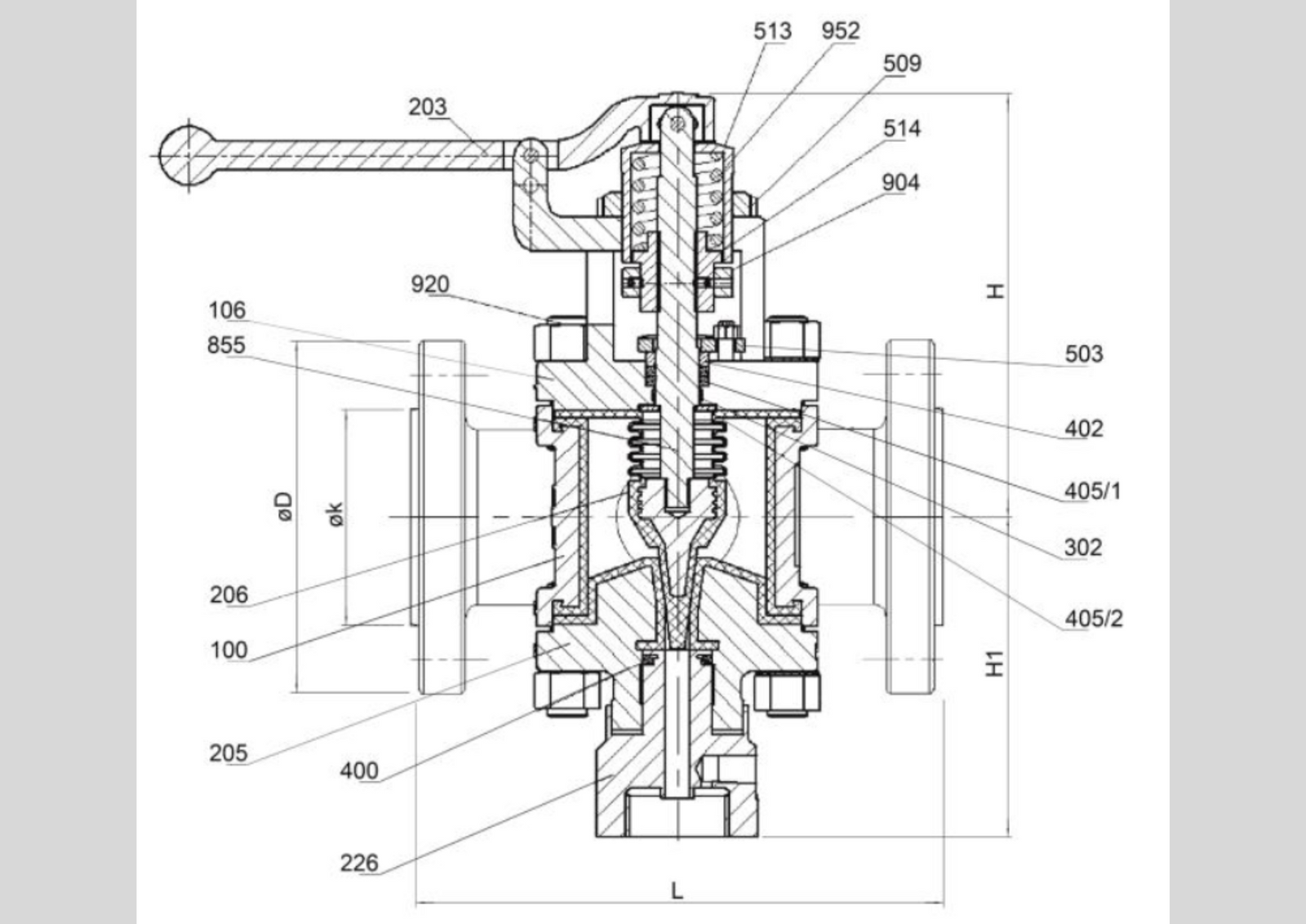

Screw bottle into the bottle connection 226.

  • Check travel set on the star knob 963/1.
  • Lever 203 is in the dead man's position.
  • For sampling, lock lever in the top groove.
  • If it is requested that the lever is firmly locked, drill through the middle hole and insert an additional pin into the middle hole.
    CAUTION! Sampling may also take place acci-
    dentally.
  • Press in direction of valve.
  • Sampling can take place.

A lock is available from GFT9 as an option.

A device, screw fitting 917 for example, for the riskfree discharge of the medium must be connected to the venting connection. Sealing plugs are not allowed because this results in overpressure in the bottle.

Hazard_Sign_PFA_Lined_Valve_Manual

Before undoing the flange connection, make sure that the plant has been depressurised and emptied!

Hazard_Sign_PFA_Lined_Valve_Manual

Clean the valve thoroughly before any repair. Medium can remain inside even after correct draining and flushing.

7.4 Shutdown

Comply with the local regulations when dismantling the valve!

As soon as the valve has been removed, fit flange caps to protect the flanges from mechanical damage. See also Section 6.1.
Lock out remote-controlled actuators so that they cannot start unexpectedly.

8. Malfunctions

Flange connection valve/pipe is leaking

  1. Retighten the flange screws to the torque given in Section 1.5.1.
  2. If the joint still leaks, the screws may be tightened up to 10% above the recommended torque.
  3. If the leak persists, dismantle the valve and inspect it.

Flange connection body/seat or body/cover is leaking

  • Retighten the body screws crosswise to the torque given in Section 1.5.2. If the leak persists, see paragraph "Flange connection valve/pipe is leaking", steps 2–3.

Packing is leaking

Bellows leaking

  • Retighten safety packing and switch off plant as quickly as possible and isolate pipes section with valve. Then replace the bellows 206 (Section 9).

Valve does not close tight

  • Loosen lock nut under the star grip and close the valve by means of the star grip, then lock the star grip again.
  • The star knob only enforces tightness in case of damaged seat sealing surfaces or seized particles (Section 6.5): replace or clean the seat 205 at the next opportunity (Sections 9.1 and 9.3).

Lever does not return to the dead man's position (sample keeps flowing)

  1. Close the valve at once by means of the star knob (Section 6.5) and isolate the pipe section with the valve.
  2. Check the pressure spring 952 and the free movement of stem 855 and bellows 206; clean or replace the parts (Section 9).
  3. If the lever is locked or a pin is inserted (Sections 7.2 and 7.3), it must be ensured that sampling does not take place accidentally.

Pressure builds up in the sampling bottle

  1. Release the lever at once (dead man's position).
  2. A device for the risk-free discharge of the medium, screw fitting 917 for example, must be connected to the venting connection; sealing plugs are not allowed because this results in overpressure in the bottle (Section 7.3).
  3. Violent opening or rapid filling may cause the bottle to burst (Section 7.2): reduce the stroke with the star knob (Section 6.7).

No or very low sample flow

  1. Check the stroke set with the star knob — at the zero point the lever cannot execute any travel (Section 6.7).
  2. Check seat and bore for blockage and clean them (Section 9).
  3. High-viscosity media: use the design for high-viscosity media (Section 6.6).

Leak at the bottle connection

  1. Check that the bottle is fully screwed into the bottle connection 226 (Section 7.3).
  2. Replace the O-ring 400 if it is damaged.

9. Maintenance

Before you start

  1. Make sure that the plant is depressurised and emptied before undoing any connection (Section 7).
  2. Remove the sampling bottle.
  3. Clean the valve thoroughly before starting any repair work. Medium can remain inside even after correct draining and flushing (Section 7). Wear suitable personal protective equipment for all work on the valve (Section 5.3).
  4. As soon as the valve is out of the line, fit flange caps to protect the flanges from mechanical damage (Section 6.1).
  • Repairs may only be carried out by qualified staff with suitable tools.
  • The sectional drawing in Section 11 shows the position, name and item number of every part of the valve.
  • When ordering spare parts, quote all data from the valve identification.
  • Use genuine GFT9 spare parts only.
  • To avoid leaks, check the bolted connections regularly, at intervals suited to the operating conditions.
  • For tightening torques, see Section 1.5

Hazard_Sign_PFA_Lined_Valve_Manual

Make sure that when working on the sampling valve it is drained. See also Section 7.4

9.1 Disassembling PA/F and removing the packing rings

Step 1:
Undo clip 937 and unscrew bottle connection 226.
Undo groove nut 509. Star grip 963 can remain screwed in.

Step 2:
Undo spring bonnet 513

Step 3:
Pull pressure spring 952 from stem 855

Step 4:
Loosen setscrew 904 in spring bush 514.

Step 5:
Undo spring bush 514.

Step 6:
Undo hex nut 920 with tooth lock washer 936, and
remove seat 205.

Step 7:
Remove cover 106 and the stud screws 902.

Step 8:
Pull out bellows 206 with stem 855 downwards.

Step 9:
Remove actuation 515 from cover 106.

Step 10:
Undo both hex nuts 920 of packing gland follower
503

Step 11:
Remove stud screws 902.
Remove packing gland follower 503.
Remove thrust ring 405 from cover 106.

Step 12:
Remove packing rings 402.

Step 13:
Turn cover 106 around and remove guide ring 302

Step 14:
Turn cover 106 around and remove guide ring 302.

9.2 Disassembling PA/S and removing the packing rings

Step 1:
Unscrew cap nut 927, remove disc 550 and bottle connection 226.
Undo groove nut 509. Star grip 963 can remain screwed in.

Step 2:
Undo spring bonnet 513

Step 3:
Pull pressure spring 952 from stem 855

Step 4:
Loosen setscrew 904 in spring bush 514.

Step 5:
Undo spring bush 514.

Step 6: Undo hex nut 920 of cover 106.

Step 7:
Remove cover 106 and the stud screws 902.

Step 8:
Pull out bellows 206 with stem 855 downwards.
Remove actuation 515 from cover 106

Step 9:
Undo both hex nuts 920 of packing gland follower 503.

Step 10:
Remove stud screws 902.
Remove packing gland follower 503

Step 11:
Remove thrust ring 405 from cover 106.

Step 12:
Remove packing rings 402.

Step 13:
Turn cover 106 around and remove guide ring 302

9.3 Assembling PA/F and inserting the packing rings

Step 1:
Mount seat 205 and tighten with hex nut 920 and tooth lock washer 936.
Screw stem 855 into bellows 206



Step 2:
Insert guide ring 302 from the bottom into cover 106, and push the ring into the groove.

Step 3:
Turn cover 106 around, and insert two packing rings 402.
ATTENTION: Offset overlapping from ring to ring by 60° to 90°

Step 4:
Insert thrust ring 405

Step 5:
Place packing gland follower 503.
Insert two stud screws 902, and loosely fasten them with hex nuts 920. Do not yet tighten the hex nuts!

Step 6:
Insert actuation 515 into cover 106.

Step 7:
Insert stem 855 and bellows 206 into cover 106.

Step 8:
Place cover 106 on body 100. Make sure that actuation 515 is located on the same side as the name plate.

Step 9:
Make sure that both hex nuts 920 of packing gland follower 503 are still loose (see Step 5).

Step 10:
Attach cover 106 with stud screws 902 and hex nuts 920 to body 100. See Section 1.5.2 for the tightening torques of the body screws.

Step 11:
Move actuation 515 into dead man´s position.

Step 12:
Screw on spring bush 514. Note: Use your right hand to push actuation 515 up, and at the same time use your left hand to tighten spring bush 514 until the stop

Step 13:
Insert pressure spring 952.
Mount spring bonnet 513 with groove nut 509. Note: The thread of spring bonnet 513 must be just visible at the bottom

Step 14:
Use a hook wrench to tighten groove nut 509.

Step 15:
Tighten both stud screws 920 of packing gland follower 503

Step 16:
Tighten setscrew 904 in spring bush 514.

Step 17:
Standard: Screw in bottle connection 226 and secure with clip 937.
Set stroke with star knob. See Section 6.7.

9.4 Assembling PA/S and inserting the packing rings

Step 1:
Screw stem 855 into bellows 206

Step 2:
Insert guide ring 302 from the bottom into cover 106,
and push the ring into the groove.

Step 3:
Turn cover 106 around, and insert two packing rings 402.
ATTENTION: Offset overlapping from ring to ring by 60° to 90°.

Step 4:
Insert thrust ring 405.

Step 5:
Place packing gland follower 503.
Insert two stud screws 902, and loosely fasten them with hex nuts 920. Do not yet tighten the hex nuts!

Step 6:
Attach actuation 515 to cover 106.

Step 7:
Insert stem 855 and bellows 206 into cover 106.

Step 8:
Mount spring bonnet 513 with groove nut 509. Note: The thread of spring bonnet 513 must be just visible at the bottom

Step 9:
Place cover 106 on body 100. Make sure that actuation 515 is located on the same side as the name plate

Step 10:
Attach cover 106 with stud screws 902 and hex nuts 920 to body 100. See Section 1.5.2 for the tightening torques of the body screws.

Step 11:
Move actuation 515 into dead man´s position

Step 12:
Screw on spring bush 514. Note: Use your right hand to push actuation 515 up, and at the same time use your left hand to tighten spring bush 514 until the stop

Step 13:
Insert spring pressure 952.

Step 14:
Use a hook wrench to tighten groove nut 509

Step 15:
Tighten both stud screws 920 of packing gland follower 503

Step 16:
Tighten setscrew 904 in spring bush 514.

Step 17:
Standard: Secure bottle connection 226 with threaded rod 918 and cap nut 927.
Set stroke with star knob. See Section 6.7

10. Dimensional Drawings

10.1 Dimensional Measurements DIN

Sample Valve — dimensional drawing
Size L H H1 Ød (RF) Øk ØD n × ØB Weight (indicative)
DN 25 160 mm 160 mm 118 mm 68 mm 85 mm 115 mm 4 x 14 (M12) 10 kg
DN 40 200 mm 181 mm 126 mm 88 mm 110 mm 150 mm 4 x 18 (M16) 18 kg
DN 50 230 mm 195 mm 131 mm 102 mm 125 mm 165 mm 4 x 18 (M16) 18 kg
DN 80 310 mm 237 mm 147 mm 138 mm 160 mm 200 mm 8 x 18 (M16) 35 kg

Indicative weights, in line with body volume. Accurate weight on request: sales@gft9.shop.

10.2 Dimensional Measurements ANSI

Sample Valve — dimensional drawing
Size L1 H H1 Ød (RF) Øk ØD n × ØB Weight (indicative)
NPS 1" 160 mm 160 mm 118 mm 50.8 mm 79.4 mm 108 mm 4 x 15.9 10 kg
NPS 2" 230 mm 195 mm 131 mm 92.1 mm 120.7 mm 152.4 mm 4 x 19.1 18 kg
NPS 1½" 200 mm 181 mm 126 mm 73 mm 98.4 mm 127 mm 4 x 15.9 18 kg
NPS 3" 310 mm 237 mm 147 mm 127 mm 152.4 mm 190.5 mm 4 x 19.1 35 kg

Indicative weights, in line with body volume. Accurate weight on request: sales@gft9.shop.

11. Sectional Drawing

Sample Valve — sectional drawing with parts list positions
Pos. Item Material
100 Body 1.0619 (A216 WCB)/PFA*
106 Cover Stainless Steel
203 Lever Stainless Steel
205 Valve Seat 1.0619 (A216 WCB)
206 Bellows PTFE
226 Flange Connection Modified PTFE
302 Guide Ring PTFE-Carbon
400 O-Ring FKM
402 Packing Ring PTFE
405.1/2 Pressure Ring Stainless Steel
509 Stuffing Box Stainless Steel
514 Nut HDPE
904 Spring Cap Stainless Steel
920 Spring Bushing Stainless Steel
952 Threaded Pin Stainless Steel
954 Nut Stainless Steel
956 Compression Spring Stainless Steel

12. Declaration of Conformity

The EU declaration of conformity for this product is supplied with every delivery and is available on request: sales@gft9.shop.

The product is designed and manufactured in accordance with the Pressure Equipment Directive 2014/68/EU.
