Backflow protection · PFA-lined swing check valve

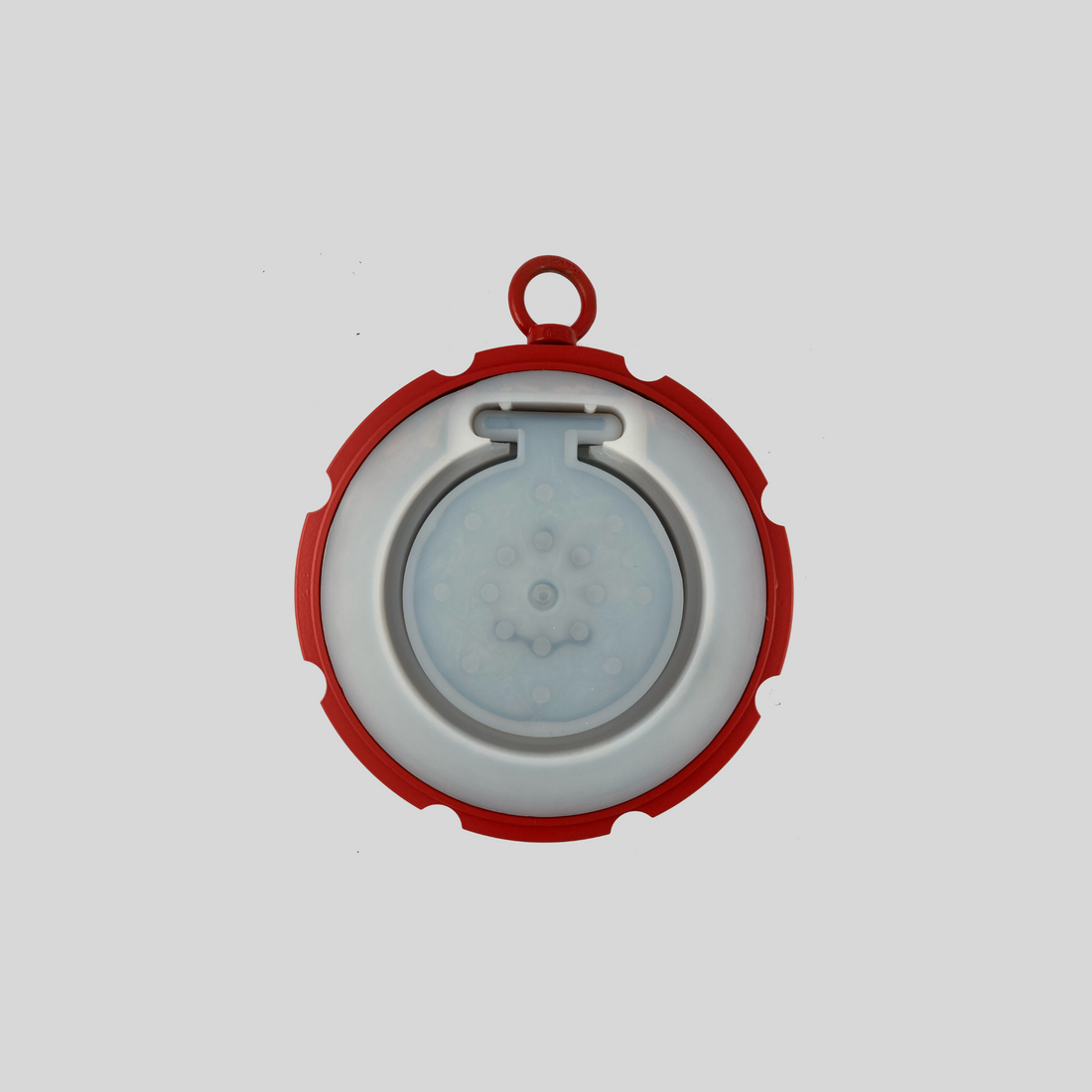

PFA-Lined Swing Check Valve Vibron9
Wafer type · PFA-lined body and disc · DN 40 – 400 · NPS 1½" – 16" · PN 16 / Class 150 · for corrosive media
- Sizes
- DN 40 – 400 · NPS 1½" – 16"
- Pressure
- PN 16 / Class 150 · up to 16 bar
- Temperature
- −40 °C … +150 °C
- Directive
- Designed and manufactured to PED 2014/68/EU
Swing check valve with PFA-lined body and disc. It closes against reverse flow without external energy and protects pumps and equipment in corrosive lines up to DN 400. One page for both norms: choose the size (EN or ASME), lining and retainer ring, and send the configuration as a request for quotation.
Features
Backflow protection
Closes against reverse flow without external energy; no spring or actuator needed.
PFA-lined body and disc
The medium touches fluoropolymer only. Lining anchored in the body, transfer-moulded virgin PFA.
No spring or pin
Eliminates potential corrosion or mechanical wear.
Non-adhesive lining
Suited to sticky or pure media.
Thick-walled PFA lining
For safe handling of corrosive and slightly solids-containing media.
Vacuum service
PFA lining anchored in dovetail grooves in the body — suitable for vacuum service; limits per P-T diagram or on request.
PTFE retainer ring option
Solid PTFE retainer ring to enhance sealing properties; also available without.
Low pressure drop
Design improved for flow efficiency.
Which version for which duty
| Duty | Choose |
|---|---|
| Backflow protection downstream of pumps in corrosive lines | Vibron9, PFA lining |
| Sticky or high-purity media | Non-adhesive PFA lining |
| Media where electrostatic charge must be led off | PFA/AS (antistatic) lining |
| Corrosive media with slight solids content | Thick-walled PFA lining |
| Vacuum lines | PFA lining anchored in dovetail grooves; limits per P-T diagram or on request |
| Tighter sealing wanted | Option: PTFE retainer ring |
Configure and request a quote
Your configuration
Reference: VIB9-DN040-PFA-RR
Technical data
| Type | Wafer-type swing check valve — swing check valve, PFA-lined body and disc; closes against reverse flow without external energy |
|---|---|
| Sizes | DN 40 – 400 · NPS 1½" – 16" |
| Pressure rating | PN 16 / Class 150 — up to 16 bar; 0.1 mbar vacuum to 16 bar, see P-T diagram |
| Temperature | −40 °C … +150 °C — see P-T diagram |
| Flanges | EN 1092-1 (PN 16) · ASME B16.5 (Class 150, RF) |
| Face-to-face | EN 558-1 basic series 20 / ISO 5752 |
| Body | 1.0619 or 1.4308 / 1.4408 / 1.4409 (A216 WCB, CF8 / CF8M / CF3M) |
| Lining | PFA, PFA/AS (antistatic) |
| Options | Solid PTFE retainer ring |
| Testing | Every valve pressure-tested in Germany before shipment. Pressure test to DIN EN 12266-1: body 15 bar, back seat 2 bar; spark test on request; leakage rate D; EN 10204 3.1 material certificates |
| Directive | Designed and manufactured to the Pressure Equipment Directive 2014/68/EU |
| Origin and quality | Made in Germany · country of origin Germany · ISO 9001:2015 certified manufacturing |
Materials
| Pos. | Part | Material |
|---|---|---|
| 1 | Lined Body | WCB, CF8 - PFA Lined |
| 2 | Disc | WCB, CF8 - PFA Lined |
| 3 | Eye Bolt | Stainless Steel |
Lined body and disc: WCB or CF8, PFA lined (PFA or PFA/AS). Eye bolt: stainless steel. Further body grades as listed under Body.
Pressure–temperature rating

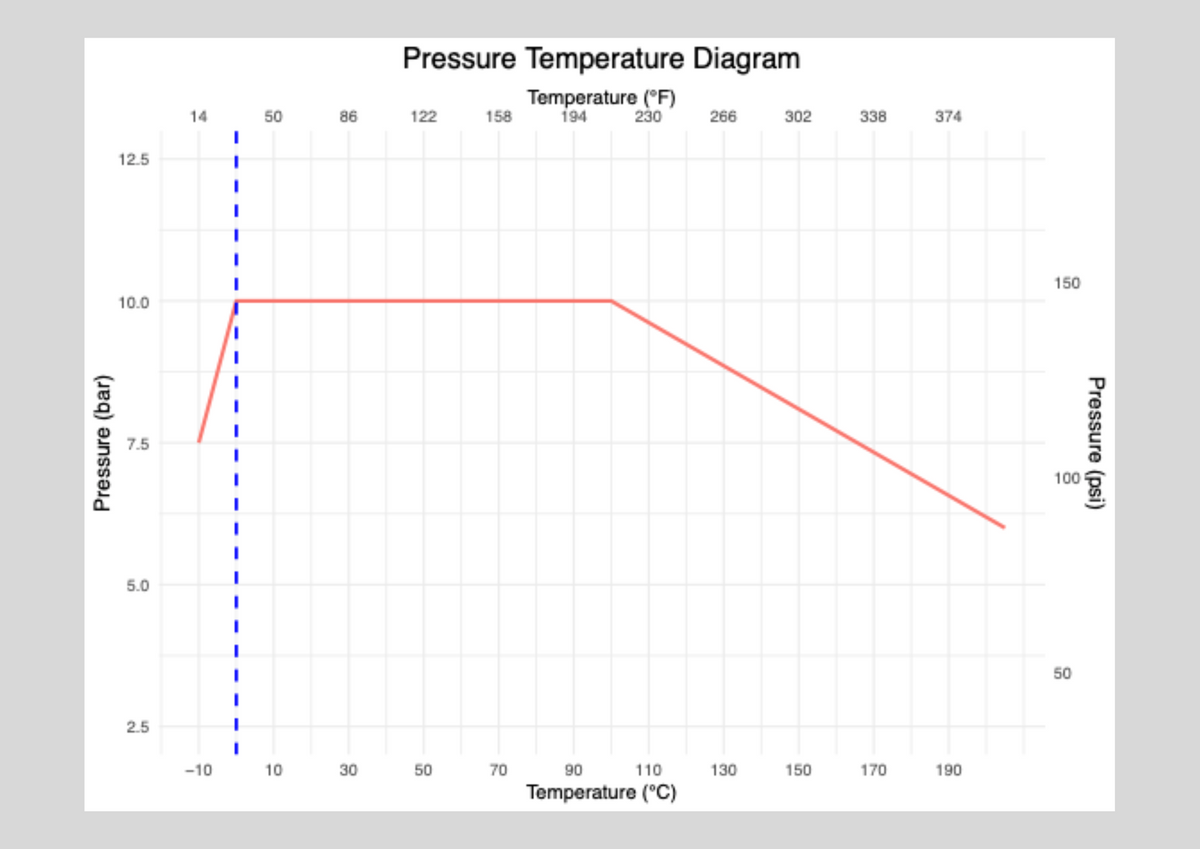

P-T-Diagram for the Swing Check Valve Temperature −40 °C … +150 °C. Vacuum service: limits per P-T diagram or on request.
Dimensions
EN version — EN 1092-1 PN 16, EN 558 Series 1 · mm
| Size | a | b | c | d | e | Pipe ID min | Pipe ID max | Max. opening |
|---|---|---|---|---|---|---|---|---|
| DN 40 | 33 | 20 | 35 | 95 | 70 | 35 | 46 | 52° |
| DN 50 | 43 | 30 | 52 | 110 | 90 | 46 | 56 | 52° |
| DN 80 | 46 | 42 | 64 | 142 | 124 | 73 | 82 | 52° |
| DN 100 | 52 | 65 | 80 | 180 | 152 | 95 | 100 | 60° |
| DN 150 | 56 | 111 | 128 | 233 | 207 | 145 | 150 | 60° |
| DN 200 | 60 | 133 | 175 | 295 | 260 | 192 | 195 | 60° |
| DN 250 | 68 | 184 | 224 | 348 | 317 | 242 | 260 | 52° |
| DN 300 | 78 | 232 | 272 | 398 | 367 | 292 | 310 | 52° |
| DN 350 | 92 | 252 | 297 | 426 | 397 | 315 | 330 | 48° |
| DN 400 | 102 | 327 | 370 | 510 | 470 | 380 | 390 | 45° |
ASME version — ASME B16.5 Class 150 RF, ASME B16.10 · mm
| Size | a | b | c | d | e | Pipe ID min | Pipe ID max | Max. opening |
|---|---|---|---|---|---|---|---|---|
| NPS 1½" | 33 | 20 | 35 | 95 | 70 | 35 | 46 | 52° |
| NPS 2" | 43 | 30 | 52 | 110 | 90 | 46 | 56 | 52° |
| NPS 3" | 46 | 42 | 64 | 142 | 124 | 73 | 82 | 52° |
| NPS 4" | 52 | 65 | 80 | 180 | 152 | 95 | 100 | 60° |
| NPS 6" | 56 | 111 | 128 | 233 | 207 | 145 | 150 | 60° |
| NPS 8" | 60 | 133 | 175 | 295 | 260 | 192 | 195 | 60° |
| NPS 10" | 68 | 184 | 224 | 348 | 317 | 242 | 260 | 52° |
| NPS 12" | 78 | 232 | 272 | 398 | 367 | 292 | 310 | 52° |
| NPS 14" | 92 | 252 | 297 | 426 | 397 | 315 | 330 | 48° |
| NPS 16" | 102 | 327 | 370 | 510 | 470 | 380 | 390 | 45° |
Dimensions a–e and pipe inner diameter range in mm; maximum opening in degrees. Confirm connecting pipe against the pipe ID range. Dimensions nominal — confirm against the certified drawing before piping design. The row of your selected size is highlighted; sizes without a row: dimensions on request.
Documents
Used in
Chemical processingSulfuric acid terminalsChemical storage & tank farmsMining & hydrometallurgyPulp & paperWater treatmentSemiconductor
FAQ
Questions we are often asked
PFA or PFA/AS lining?
PFA is the standard lining. PFA/AS is the antistatic version for media where electrostatic charge must be led off.
With or without PTFE retainer ring?
The solid PTFE retainer ring is an option that enhances the sealing properties. Choose it where you want that extra sealing; choose “Without retainer ring” for the valve without it. If you are unsure, send us the medium and temperature with your request.
Is the Vibron9 suitable for vacuum?
PFA lining anchored in dovetail grooves in the body — suitable for vacuum service; limits per P-T diagram or on request.
Does the valve need a spring or external energy?
No. It closes against reverse flow without external energy and has no spring or pin that could corrode or wear.
Which documents come with each valve?
Valves are pressure tested to DIN EN 12266-1 and ship with EN 10204 3.1 material certificates. The Vibron9 is designed and manufactured to the Pressure Equipment Directive 2014/68/EU.
PFA or PTFE lining — what is the difference?
Both are fully fluorinated plastics with almost universal chemical resistance. PTFE cannot be melted, so PTFE liners are pressed and sintered. PFA can be melted, so we transfer-mould it into the valve body: the lining is dense, anchored in the body and follows complex shapes. If your specification says "PTFE-lined", a PFA-lined valve meets the same chemical duty — ask us for a comparison for your medium.
