Protection · PFA-lined compact basket strainer
PFA-Lined Compact Strainer Purion9 Compact
Compact basket strainer · top entry · flanged · DN 25 – 100 / NPS 1" – 4" · EN 1092-1 PN 16 / ASME Class 150 flanges · for corrosive media
- Sizes
- DN 25 – 100 · NPS 1" – 4"
- Pressure
- PN 16 / Class 150 · 16 bar to 100 °C
- Temperature
- −60 °C … +150 °C with ETFE mesh, +200 °C with PTFE mesh
- Directive
- Designed and manufactured to PED 2014/68/EU

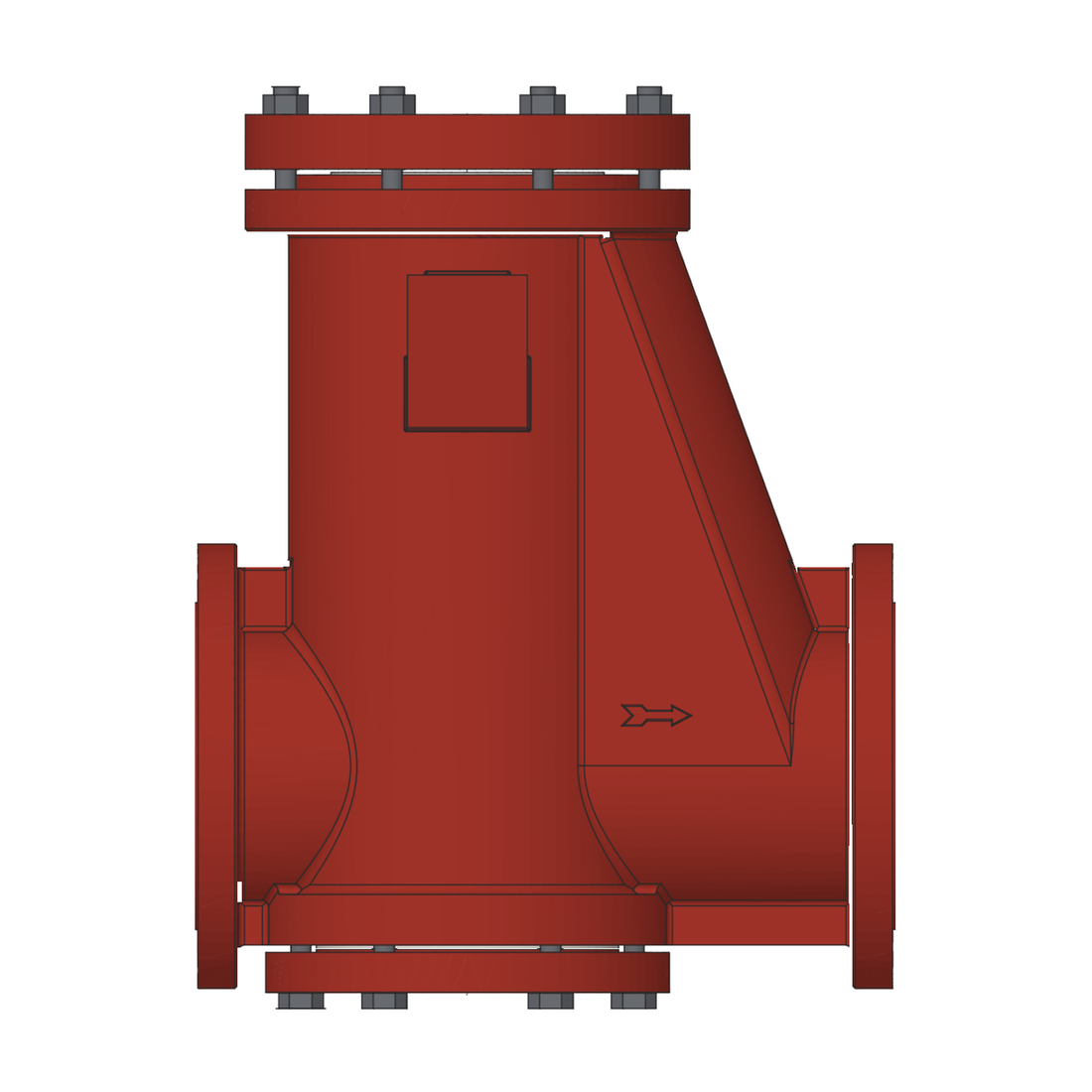

Compact basket strainer on the PFA-lined globe body of the Imperium9 control valve: a PTFE sandwich basket screws into the seat thread of the body — no bonnet trim, no bellows. For corrosive lines with clean media, where the basket is cleaned during planned maintenance. Same face-to-face as the Imperium9 (EN 558-1 Series 1). One page for both norms: choose the size (EN or ASME), lining and basket, and send the configuration as a request for quotation — state medium, pressure, temperature and mesh size.
Features
Same body as the Imperium9
Same PFA-lined globe body, top flange and face-to-face as the Imperium9 control valve (EN 558-1 Series 1) — see dimension sheet GFT9-PUC-DIM-001.
Virgin PFA lining
Body lined with virgin PFA, transfer-moulded and anchored in the body. PFA/AS (antistatic) for media where electrostatic charge must be led off.
Sandwich basket as standard

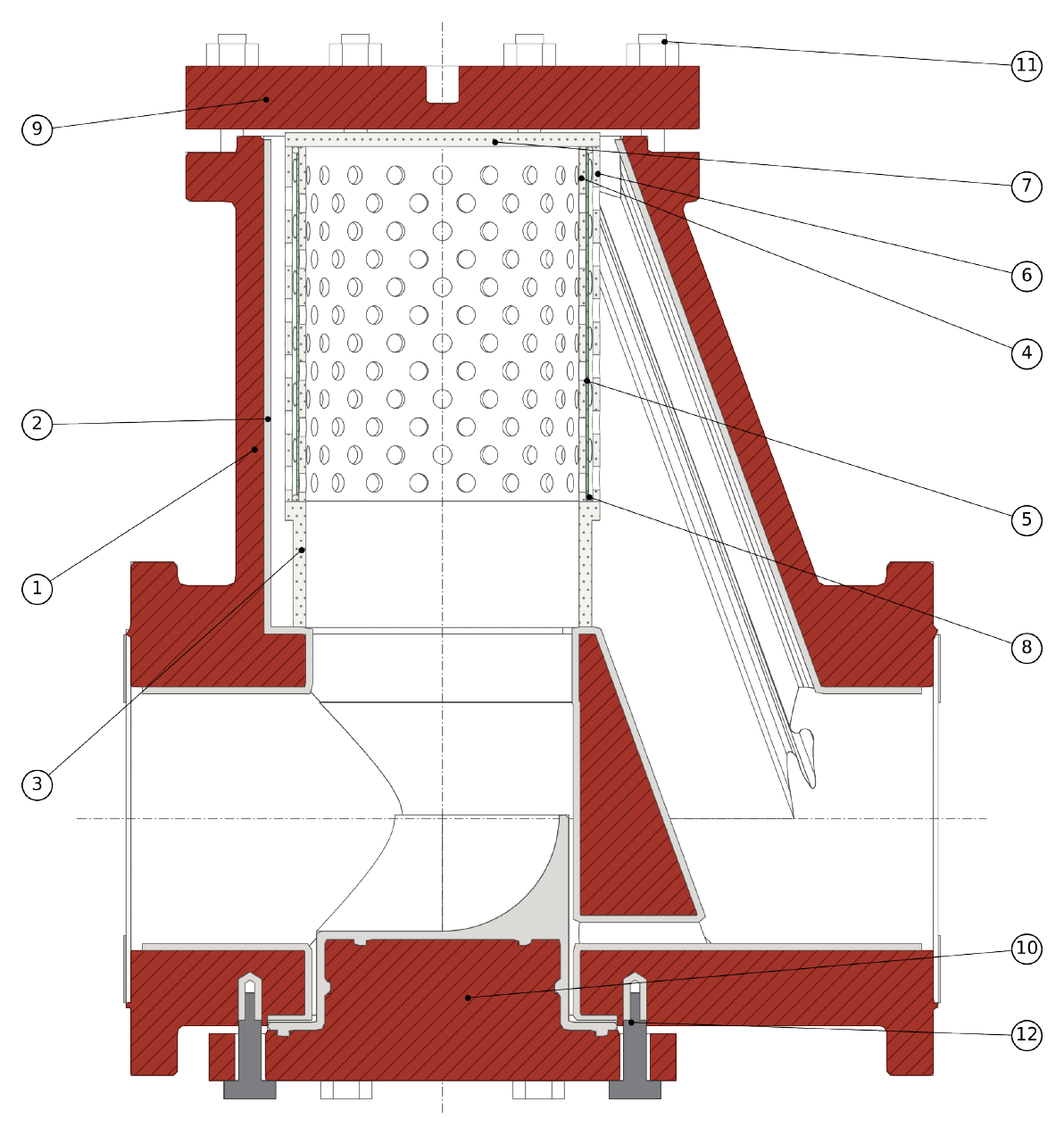

Inner and outer perforated tube in PTFE or PTFE-carbon with the ETFE filter mesh between; the mesh ends are locked by two PTFE round cords — see sectional drawing GFT9-PUC-DS-001.
Screw-in foot ring
The basket foot ring screws into the seat thread of the body. No bonnet trim and no bellows — fewer parts than a control valve or a T-strainer.
ETFE filter mesh 85 – 2000 µm
Mesh size per order, chosen for the particle size; usable to +150 °C. Other screens on request.
Drilled basket as variant
One drilled PTFE or PTFE-carbon tube in the same seat thread, instead of the sandwich basket.
Top entry, free height on the sheet
Blind cover off, basket lifted out. The free height HR per size is given in GFT9-PUC-DIM-001 — from 276 mm (DN 25) to 528 mm (DN 100).
Pressure-tested, certified
Pressure test to DIN EN 12266-1, EN 10204 3.1 material certificates. Designed and manufactured to PED 2014/68/EU.
Which version for which duty
| Duty | Choose |
|---|---|
| Protecting control valves, pumps, flowmeters and dosing equipment in clean corrosive lines | Purion9 Compact upstream of the equipment; sandwich basket, mesh chosen for the particle size |
| Basket cleaned during planned maintenance | Purion9 Compact — blind cover off, line out of service |
| Frequent cleaning, dirty media, basket access in service or a drain / flush connection | Purion9 T-strainer — basket pulled from the top, flush bottom cover |
| Media where electrostatic charge must be led off | PFA/AS (antistatic) lining |
| Fine particles or coarse solids | Sandwich basket with fine or coarse ETFE mesh (85 – 2000 µm); drilled basket as variant |
| Same installation length as an Imperium9, or an EN 558-1 Series 1 line | Purion9 Compact — same body and face-to-face as the Imperium9 |
Configure and request a quote
Your configuration
Reference: PUC9-DN025-PFA-SW
Technical data
| Type | Compact basket strainer, flanged, top entry: blind cover, screw-in basket in the seat thread of the Imperium9 globe body |
|---|---|
| Sizes | DN 25, 40, 50, 80, 100 · NPS 1", 1½", 2", 3", 4" |
| Pressure rating | PN 16 / Class 150 — 16 bar to 100 °C, 6 bar at 200 °C (PTFE filter mesh) · see P-T diagram |
| Temperature | −60 °C … +150 °C (ETFE filter mesh) / +200 °C (PTFE filter mesh) · 12 bar below −10 °C (1.0619, AD 2000 W 10), full rating with 1.4408 · see P-T diagram |
| Flanges | EN 1092-1 (PN 16) · ASME B16.5 (Class 150, RF) |
| Face-to-face | EN 558-1 Series 1 — as Imperium9 |
| Body | 1.0619, 1.4308 or 1.4408 (A216 WCB, CF8, CF8M) |
| Lining | Virgin PFA, PFA/AS (antistatic) |
| Basket | Standard: sandwich basket — screw-in foot ring, inner and outer perforated tube and lid in PTFE or PTFE-carbon, ETFE filter mesh between, two PTFE round cords. Variant: one drilled PTFE or PTFE-carbon tube, same thread |
| Filter mesh | ETFE, 85 – 2000 µm per order, to +150 °C; PTFE filter mesh to +200 °C; other screens on request |
| Gaskets | PTFE cover gasket and round cords |
| Basket change | Top entry: blind cover off with the line out of service; basket lifted out. Free height HR and basket length LB per size — see dimension table note and GFT9-PUC-DIM-001 |
| Vacuum | Vacuum-tight lining — 1 mbar abs to 100 °C, 100 mbar abs at 200 °C · see P-T diagram |
| Testing | Every strainer pressure-tested in Germany before shipment. Pressure test to DIN EN 12266-1; EN 10204 3.1 material certificates |
| Directive | Designed and manufactured to PED 2014/68/EU |
| Origin and quality | Made in Germany · country of origin Germany |
Materials
| Pos. | Part | Material |
|---|---|---|
| 1 | Body, PFA-lined | 1.0619 (A216 WCB), 1.4308 (CF8) or 1.4408 (CF8M) |
| 2 | Lining | Virgin PFA or PFA/AS (antistatic) |
| 3 | Basket foot ring, screw-in | PTFE or PTFE-carbon |
| 4 | Inner basket tube, perforated | PTFE or PTFE-carbon |
| 5 | Filter web | ETFE, mesh size per order, to +150 °C |
| 6 | Outer basket tube, perforated | PTFE or PTFE-carbon |
| 7 | Basket lid | PTFE or PTFE-carbon |
| 8 | Round cords (2) and cover gasket | PTFE |
| 9 | Blind cover | As body material |
| 10 | Bottom cover | As body material |
| 11 | Cover bolting | A2, A4 or 5.6 galvanised, per order |
| 12 | Bottom cover bolting | A2, A4 or 5.6 galvanised, per order |
Lining PFA (virgin) or PFA/AS; basket foot ring, tubes and lid PTFE or PTFE-carbon; filter mesh ETFE; round cords and cover gasket PTFE. Body material per body option.
Pressure–temperature rating

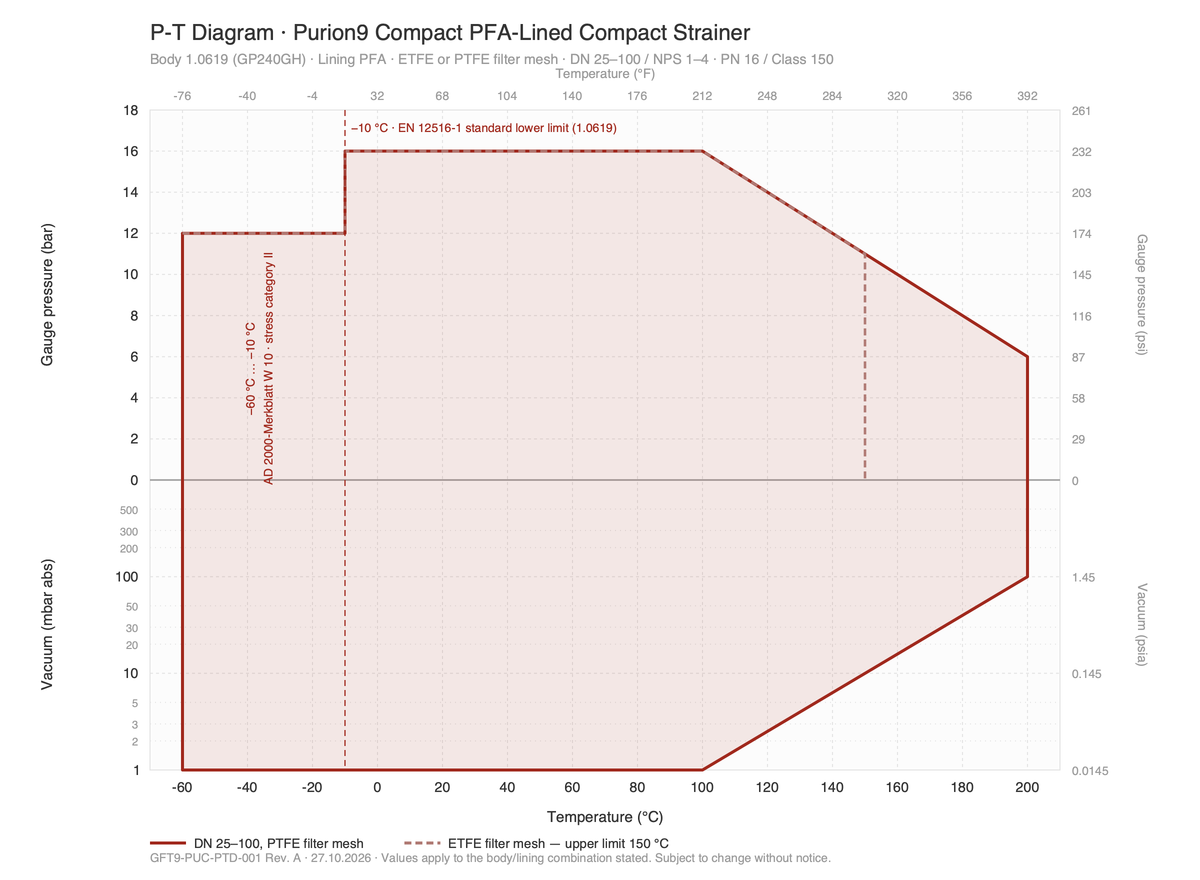

P-T diagram with vacuum range: 16 bar −10 … 100 °C, linear to 6 bar at 200 °C (PTFE filter mesh) · ETFE filter mesh to 150 °C · −60 °C at 12 bar (1.0619 body, AD 2000-Merkblatt W 10) · full vacuum (1 mbar abs) to 100 °C Lower limit −60 °C (1.0619 body, AD 2000 W 10 stress category II: 12 bar below −10 °C). ETFE filter mesh to 150 °C, PTFE filter mesh to 200 °C.
Dimensions
EN version — EN 1092-1 PN 16, EN 558 Series 1 · mm
| Size | L1 | ØD | Øk | Ød | n × ØB |
|---|---|---|---|---|---|
| DN 25 | 160 | 115 | 85 | 68 | 4 x 14 (M12) |
| DN 40 | 200 | 150 | 110 | 88 | 4 x 18 (M16) |
| DN 50 | 230 | 165 | 125 | 102 | 4 x 18 (M16) |
| DN 80 | 310 | 200 | 160 | 138 | 8 x 18 (M16) |
| DN 100 | 350 | 220 | 180 | 158 | 8 x 18 (M16) |
ASME version — ASME B16.5 Class 150 RF flanges, face-to-face EN 558-1 Series 1 · mm
| Size | L1 | ØD | Øk | Ød | n × ØB |
|---|---|---|---|---|---|
| NPS 1" | 160 | 108 | 79.4 | 50.8 | 4 x 15.9 |
| NPS 1½" | 200 | 127 | 98.4 | 73 | 4 x 15.9 |
| NPS 2" | 230 | 152.4 | 120.7 | 92.1 | 4 x 19.1 |
| NPS 3" | 310 | 190.5 | 152.4 | 127 | 4 x 19.1 |
| NPS 4" | 350 | 228.6 | 190.5 | 157.2 | 8 x 19.1 |

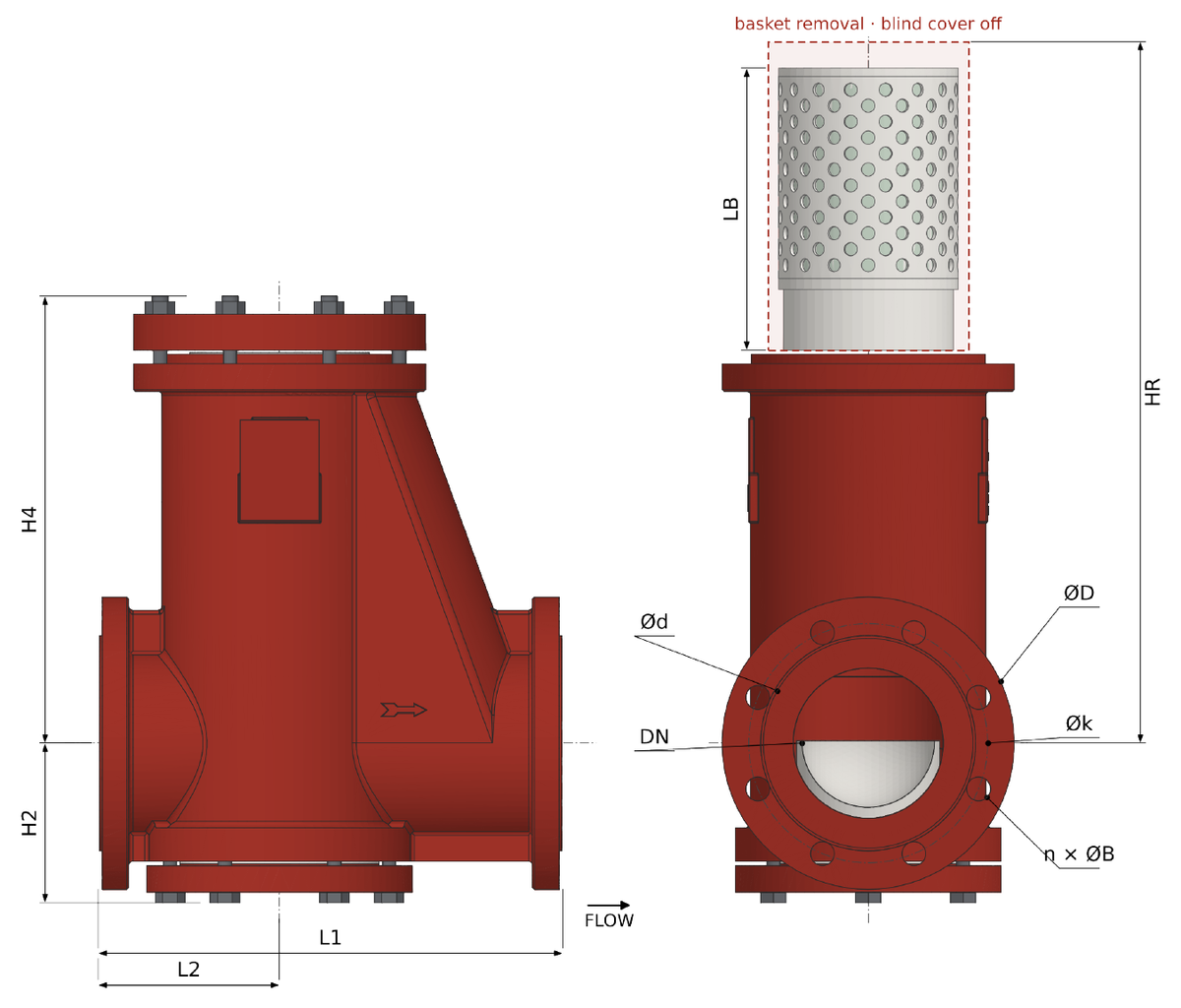

L1 = face-to-face length; ØD = flange outside diameter; Øk = bolt circle diameter; Ød = sealing-face diameter; n × ØB = number and diameter of the flange bolt holes (thread in brackets). Strainer and basket (mm, DN 25 / 40 / 50 / 80 / 100; NPS 1 / 1½ / 2 / 3 / 4 alike): H4 = flow axis to top of cover bolting 180 / 223 / 231 / 326 / 336; HR = free height above the flow axis for basket removal, incl. 20 mm clearance, 276 / 344 / 358 / 519 / 528; LB = basket length 119 / 150 / 156 / 214 / 212. L2 and H2 in GFT9-PUC-DIM-001. Dimensions nominal — confirm against the certified drawing before piping design. The row of your selected size is highlighted; sizes without a row: dimensions on request.
Documents
Used in
Chemical processingSulfuric acid terminalsMining & hydrometallurgyPulp & paperWater treatmentEnergyPharmaceutical & biopharmaSemiconductor
FAQ
Questions we are often asked
Which strainer — Purion9 T-strainer or Purion9 Compact?
Both are PFA-lined strainers with PTFE or PTFE-carbon baskets and ETFE filter mesh. Basket change: on the Purion9 T-strainer the basket is pulled from the top while the strainer stays in the line; on the Purion9 Compact the blind cover is taken off with the line out of service. Flush / drain: the T-strainer offers a flush bottom cover with a DN 15 or DN 25 drain bore; the Compact has no flush option. Sizes: T-strainer DN 25 – 150 / NPS 1" – 6"; Compact DN 25 – 100 / NPS 1" – 4". Best for: the T-strainer for frequent cleaning, dirty media and in-service access; the Compact for clean media, cleaning during planned maintenance and a compact build with fewer parts. At DN 100 both have a face-to-face length of 350 mm.
How is the basket changed?
Take the line out of service, remove the blind cover and lift the basket out. The free height needed above the flow axis (HR, incl. 20 mm clearance) is DN 25 276 mm · DN 40 344 mm · DN 50 358 mm · DN 80 519 mm · DN 100 528 mm. Clean the basket or fit a spare, then close the cover. Spare baskets and gaskets on request.
Sandwich basket or drilled basket?
The sandwich basket is the standard: inner and outer perforated tube with an ETFE filter mesh between, mesh size 85 – 2000 µm chosen for the particles you need to retain — a finer mesh retains smaller particles and fills sooner. The drilled basket is one drilled PTFE or PTFE-carbon tube in the same thread. Both are made in PTFE or PTFE-carbon; name the material and the mesh size in your request.
What pressure and temperature is the Purion9 Compact rated for?
PN 16 / Class 150: 16 bar from −10 °C to 100 °C, then down in a straight line to 6 bar at 200 °C. The filter mesh sets the upper limit: ETFE mesh to 150 °C, PTFE mesh to 200 °C. Below −10 °C the 1.0619 body is rated 12 bar down to −60 °C (AD 2000-Merkblatt W 10); 1.4408 bodies carry the full rating. Full vacuum (1 mbar abs) up to 100 °C. See the P-T diagram GFT9-PUC-PTD-001.
Which documents come with each strainer?
Every strainer is pressure-tested to DIN EN 12266-1 and ships with EN 10204 3.1 material certificates. It is designed and manufactured to PED 2014/68/EU. Dimension sheet and sectional drawing: see Documents.
