PFA Lined Ball Valve with standard spheroidal graphite cast iron (EN-JS1049) body.
| SPHERON9 | |
|---|---|
| Design | DIN/ISO |
| Size | DN15-DN150 |
| Pressure | 16 bar |
| Flange dimensions | DIN EN 1092-1 PN 16 |
| Face to face dimensions | DIN EN 558-1 |
| Actuator connection | DIN 3337 – ISO 5211 |

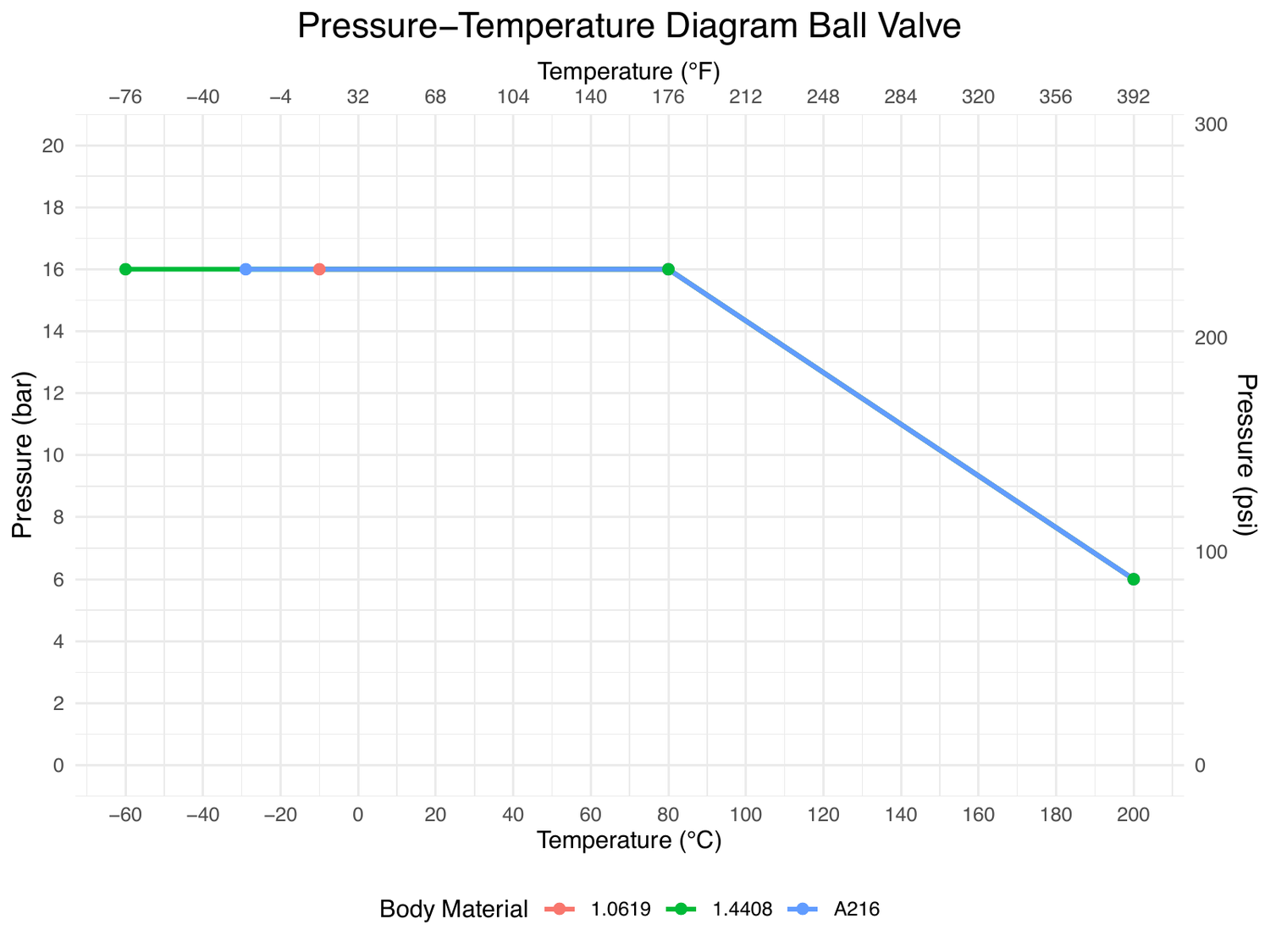

| Temperature Range | 60 °C to +200 °C (-75 °F to +400 °F) |
| Certifications | EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL |
More information on features, custom options and detailed properties on our product page!
Couldn't load pickup availability
Delivery
Delivery
If available (green dot), delivery times for most parts of Europe: 3-5 working days (in case of payment in advance, after payment confirmed).
Customers outside the European Union: Longer delivery times due to shipping uncertainties.
Collapsible row
Collapsible row
Payment
Payment
First-time or unregistered customers: Payment in advance required.
Returning customers with successful transaction history: Credit line available, payment by invoice within 45 days.
Downloads
Downloads
Leaflet: Available for download.
Manual: Available for download.
Will automatically sent to your payment after purchase.
More Information here.
