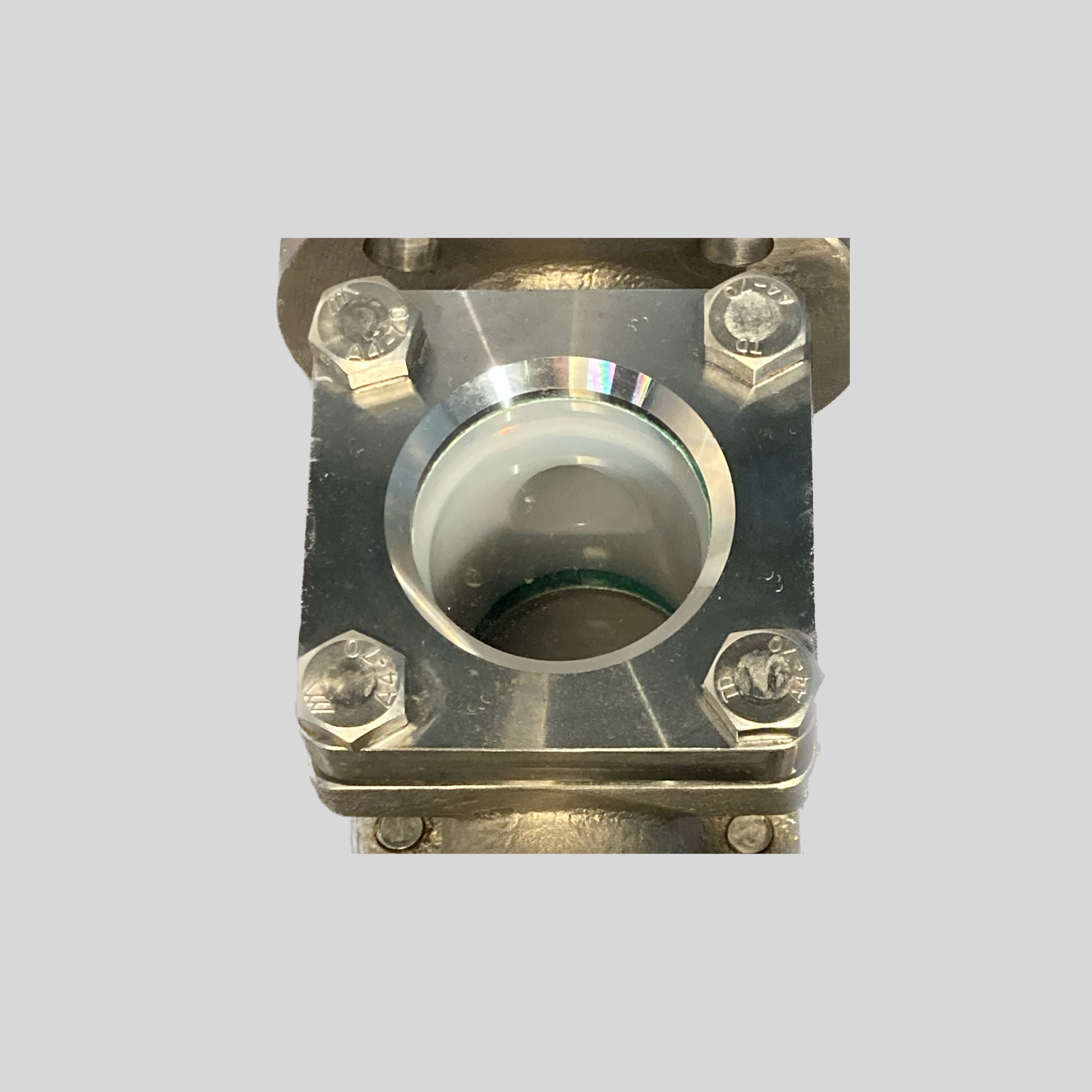

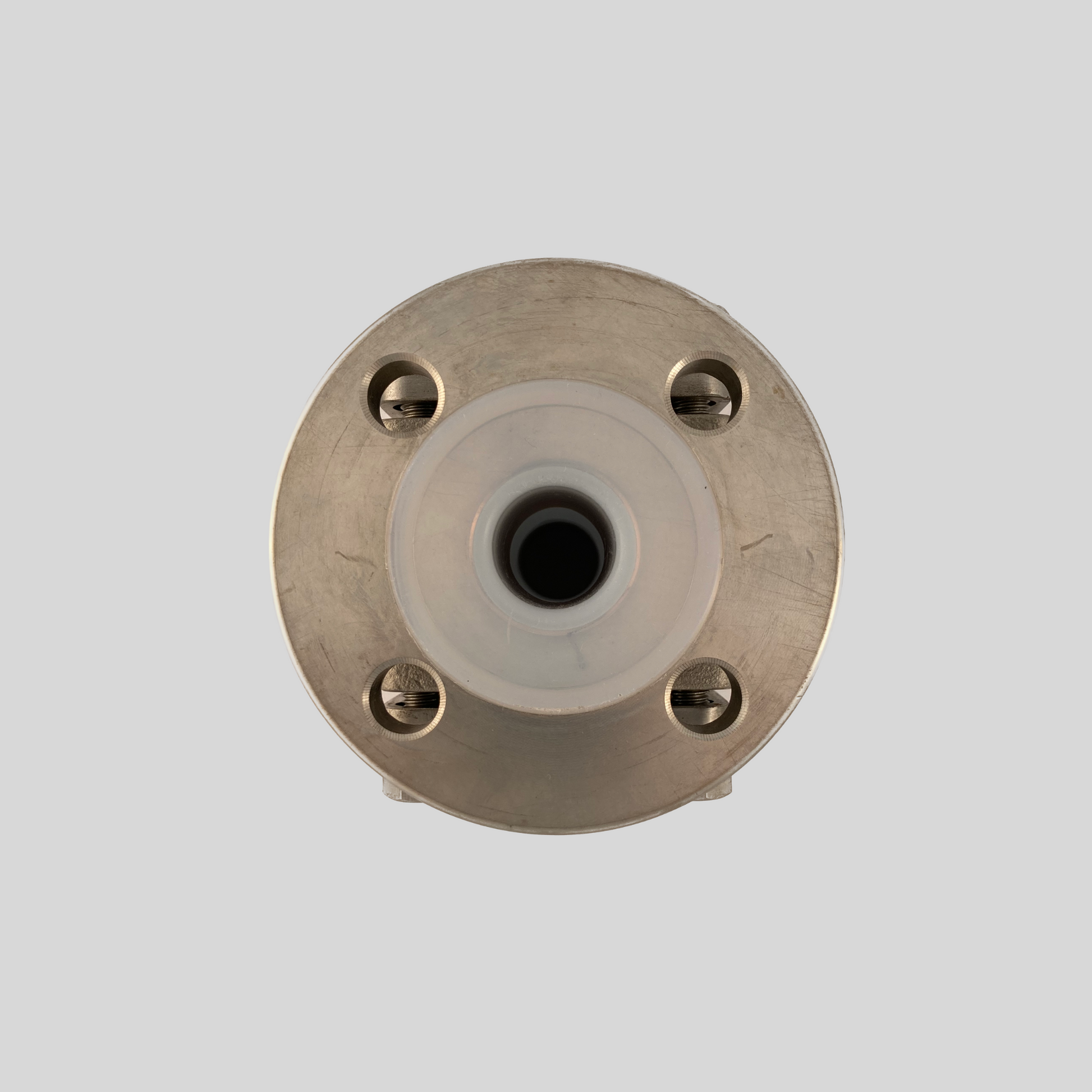

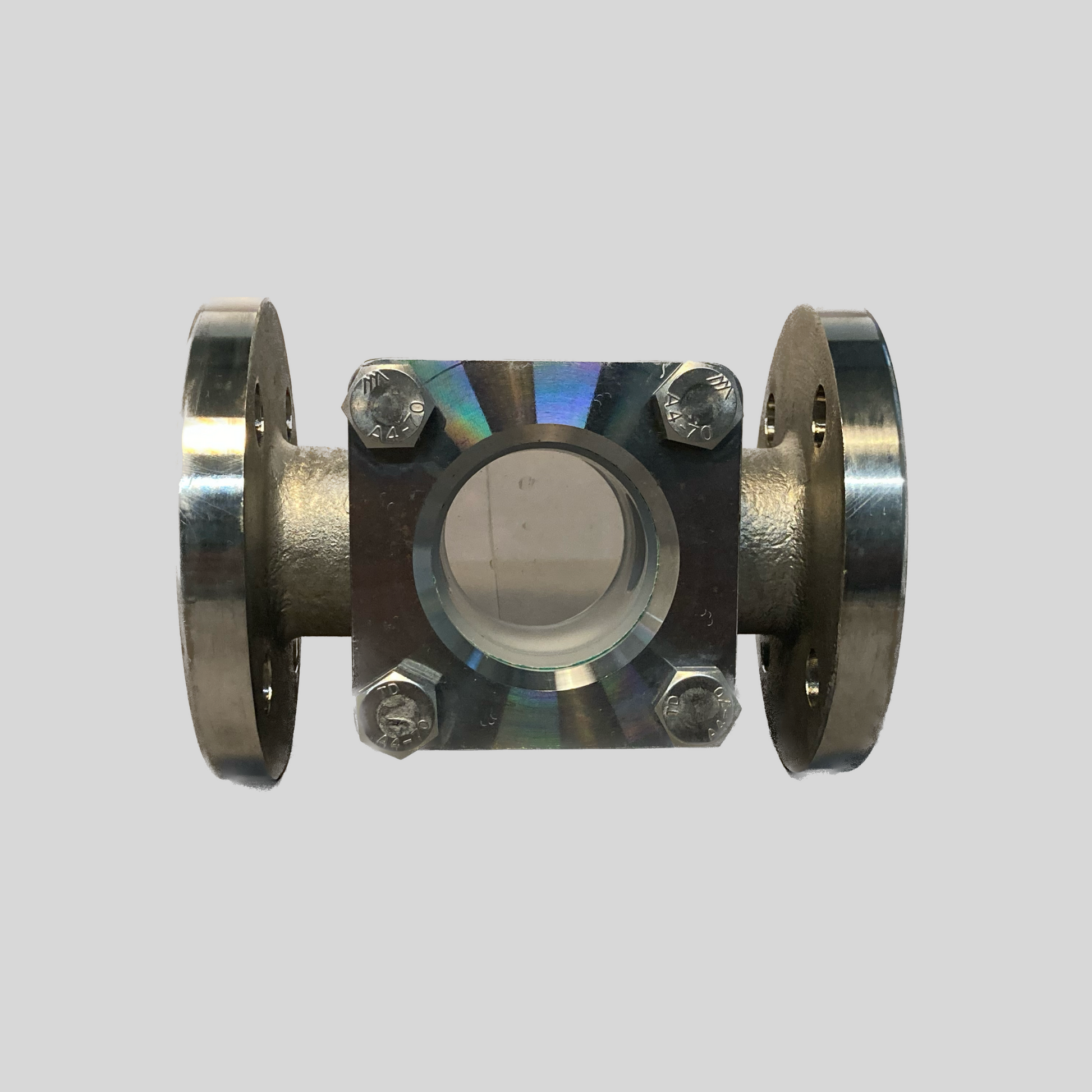

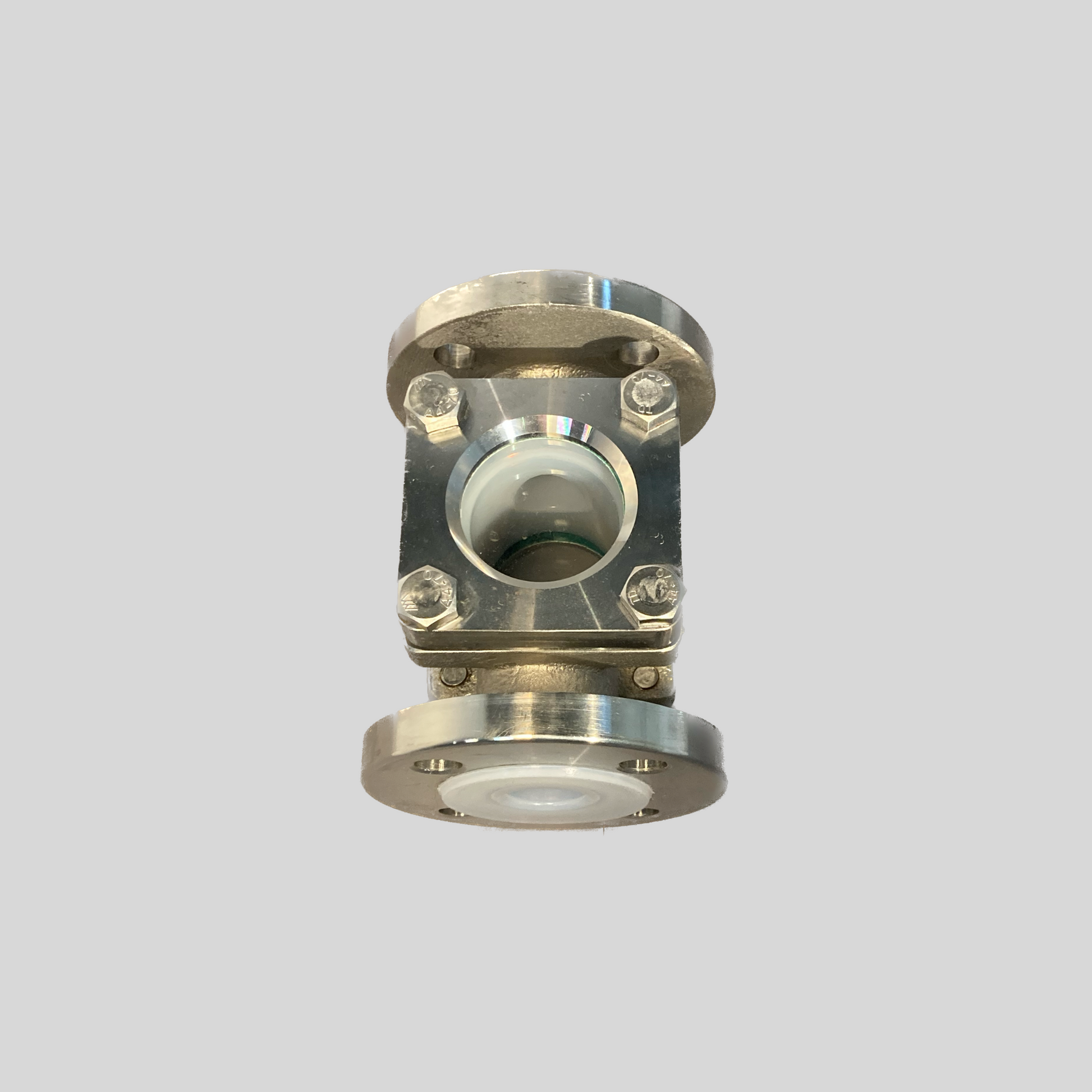

PFA Lined Sight Glass DN 250
| Name | Videron9 |
| Design Norm | DIN/ISO | ANSI |
| Flange Dimensions | DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP) |
| Flange Dimensions | DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP) |
| Face-Face-Dimensions | PN (EN 558-1), Series 1 | ANSI-B-16.5 |
| Pressure Range | 16 bar |
| Temperature Range | -10°C up to 150°C |
| Certificates | EU Pressure Equipment Directive 2014/68/EU |
Product Specs
Dimensional Measurements
| Size | L | øa | Weight |
|---|---|---|---|
| DN 250 | 533mm | 220mm | 115kg |
No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.
Materials Table & File
| Pos. | Item | Material |
|---|---|---|
| 1 | Body | 1.0619 (A216 WCB), 1.4408 (CF-8M), 1.4116 (SS), Carbon Steel |
| 2 | Cover Plate | 1.0619 (A216 WCB), 1.4408 (CF-8M), 1.4116 (SS), Carbon Steel |
| 3 | Glass | Borosilicate Glass (DIN 7080) |
| 4 | Support | PTFE/PTFE |
| 5 | Bolts and Nuts | Stainless Steel A2, A4, a.A./o. o. req |
P‑T Diagram
Sight Glass Pressure Temperature Diagram
Documentation (Optional):
- Manufacturer Standard: German-language PDF
- Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
- Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size
Other certifications upon request
