PFA 라이닝 제어 밸브

GFT9 인페리움 9

PFA 라이닝 제어 밸브 인페리움 9는 현대 산업 시스템의 엄격한 요구를 충족시키는 고성능 제어 밸브입니다. 모듈형 설계를 통해 이 밸브는 다양한 유량, 작동 압력 및 애플리케이션 요구 사항에 대해 유연한 솔루션을 제공합니다. 견고한 구조와 다양한 밸브 내부 부품은 표준 조건에서뿐만 아니라 부식성 매체 및 높은 압력 차와 같은 고 스트레스 조건에서도 신뢰성을 보장합니다.

특징

  • Corrosion Resistance

    Delivers superior chemical resistance against diverse corrosive agents, extending equipment lifespan.

  • Low Friction / Non-Stick

    Minimizes friction and buildup for smooth flow and reduced wear.

  • Electrical Insulation

    Provides robust insulation for safe, reliable performance in critical applications.

  • Thermal Stability

    Maintains consistent performance across extreme temperatures, reducing maintenance needs.

1 4
More on PFA's Properties

GFT9 | PFA 라이닝 제어 밸브 | 공격적인 매체에 안전 Features

  • Powerful Valve Actuator


The valve is equipped with a pneumatic multi-spring actuator for rapid operation, constant seating force, and cost efficiency. Electric actuators are available as an option.

  • Multi-Functional Digital Positioner


    The digital positioner is a versatile interface for process control, operating with 4 to 20 mA signals and supporting HART, Profibus (PA), and Foundation Fieldbus (FF) communication. It enables bidirectional data exchange and can be configured on-site or remotely.

  • Reliable Stem Seal


    The stem seal is TA-Luft (Clean Air Act) compliant, offering a tight seal that prevents emissions and withstands corrosion.

  • Removable Bonnet (Top Entry)


The bonnet allows for easy access to internal components, facilitating maintenance and minimizing downtime.

  • Robust, High-Precision Trims


The valve is equipped with replaceable seats and plugs made from TFM-PTFE, ensuring durability and easy serviceability. Special valve trims such as V-plugs and U-plugs can handle small kv-values and high-pressure differentials.

  • Customizable Bellows


The PFA bellows (standard or heavy-duty) protect against leakage and corrosion, available for a wide range of media and operating conditions (see below for detailed analysis).

  • Interchangeable Plug and Seat


The TFM-PTFE seat and plug can be swapped to adjust kv-values, offering high precision in control, even under extreme conditions (see below for detailed analysis).

  • Safety Features


Equipped with safety packing, stroke limitation, and monitoring connections, the valve is designed for high-pressure and high-temperature applications

1 8

Plugs | Seats | Bellows

DN 25 - 100

Bellows

  • Standard PFA Bellows:
    Withstand up to 16 bar operating pressure, effectively protecting the valve stem from corrosion while hermetically sealing the product chamber from the atmosphere.
  • Heavy Duty PFA Bellows:
    Designed for highly diffusive media, high temperatures, and pressures up to 16 bar. The wider crinkles allow for efficient purging and sterilization, making it ideal for pure media applications, such as in biotechnology. This variant is also available in Hastelloy for additional durability. The 2.5 mm wall thickness ensures excellent resistance to permeation.

Plug and Seat Options

  • TFM-PTFE Seat and Plug:
    Enables adjustment of kv-values through easy exchange, offering flexibility in flow control.
  • Special V-Plug (DN 15 to 25):
    Optimized for the smallest kv-values (0.01 to 1.2 m³/h), ensuring precise control even under high temperature and pressure differentials. The plug is constantly guided in the seat for reliable performance.
  • Special U-Plug (DN 80 to 150):
    Designed to handle high loads and reduce the risk of cavitation, offering safety and reliability in demanding applications through continuous guidance in the valve seat.

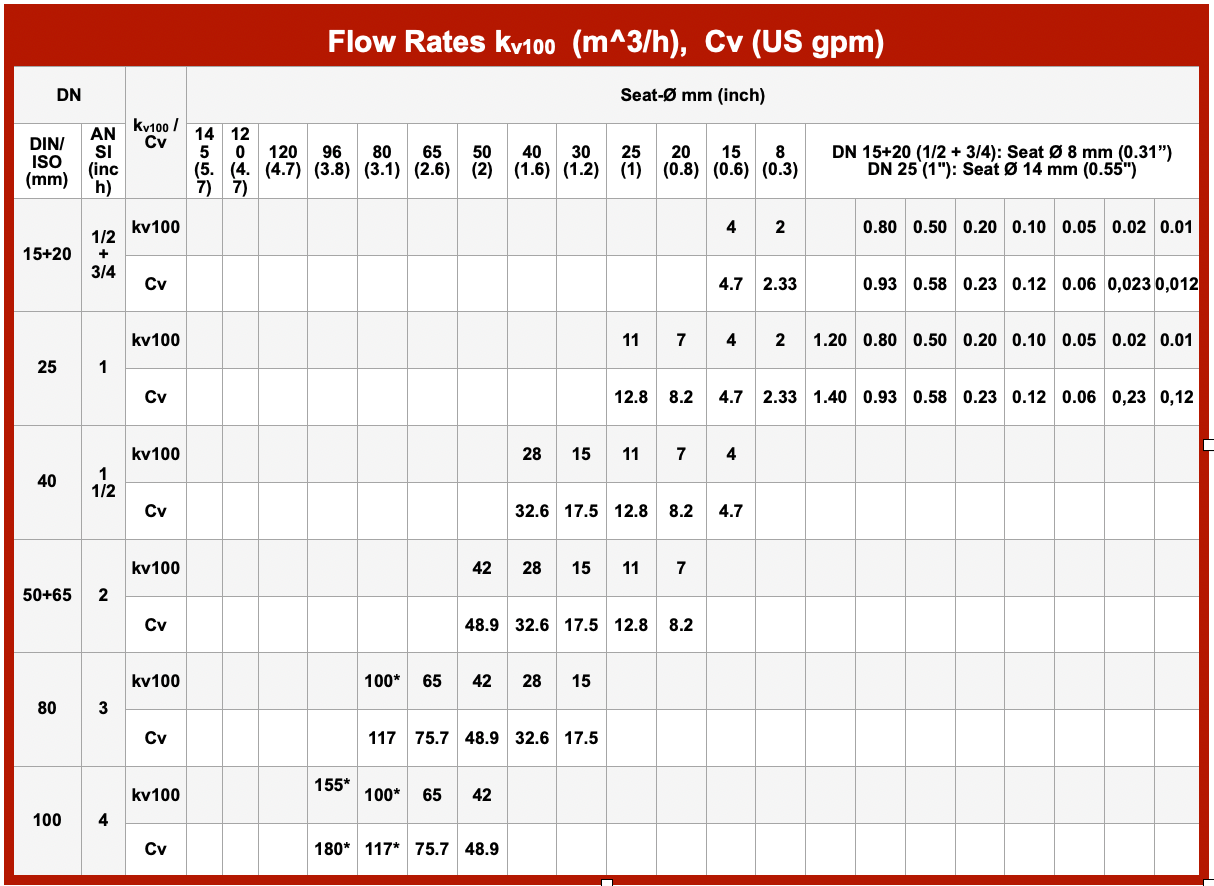

in kv100​ (m³/h) and Cv (US gpm)

Flow rates

Indicating the volume of fluid that passes through a valve seat under specific conditions.

The table highlight how different seat diameters (from 8 mm to 145 mm) influence flow rates across the different product types.

Smaller diameters ( e.g. DN 15+20 with seat Ø 8 mm): Lower flow rates providing finer control.

Larger diameters (e.g. DN 100 with seat Ø 155 mm): Significantly higher flow rates—up to 180 Cv—enabling efficient flow management in high-capacity systems.

This data is essential for selecting the right valve size for precise fluid control in industrial applications.

표 형식의 개요

Parameter Value
Name Imperium9
Operational Characteristics Equal percentage, Linear, On/Off
Design Norm DIN | ANSI
Size DN 15-100| NPS ½-4”
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions PN (EN 558-1), Series 1 | ANSI-B-16.5
Plug, Stem and Bellows Plug Guide: stem guided, optional: seat guided (V-plug, U-plug from DN 80 to DN 100) Rangeability: 1:25, V-plug 1:100 (min. kvs-value 0.01 m³/h to 1.2 m³/h) Bellows: all valves are in heavy-duty PFA bellows
Lining Options PFA, PFA/AS, PVDF
Body Materials 1.0619 , 1.4308, 1.4408, Carbon Steel / A216WCB, CF8-M or CF-8, Carbon Steel
Pressure Range 0.1 mbar vacuum to 16 bar (requires special bellows)
Temperature Range -60°C to +180°C
Leakage Rate leakage rate class VI
Custom Options Heating jacket
Quality Control Body 24 bar, Dielectric strength test 20 kV
Certificates EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL

Technical Specifications

Dimensional Measurements

Size L H ød øk øD Bolting Weight
DN 15 130mm 130mm 45mm 65mm 95mm 4 x 14 (M12) 6kg
DN 20 150mm 130mm 58mm 75mm 105mm 4 x 14 (M12) 6kg
DN 25 160mm 185mm 68mm 85mm 115mm 4 x 14 (M12) 11kg
DN 40 200mm 225mm 88mm 110mm 150mm 4 x 18 (M16) 16kg
DN 50 230mm 230mm 102mm 125mm 165mm 4 x 18 (M16) 19kg
DN 80 310mm 340mm 138mm 160mm 200mm 8 x 18 (M16) 39kg
DN 100 350mm 350mm 158mm 180mm 220mm 8 x 18 (M16) 44g
Size L1 H ød øk øD Bolting Weight
NPS ½" 130mm 130mm 34.9mm 60.3mm 88.9mm 4 x 15.9 6kg
NPS ¾" 130mm 130mm 42.9mm 69.8mm 98.4mm 4 x 15.9 6kg
NPS 1" 160mm 185mm 50.8mm 79.4mm 108mm 4 x 15.9 11kg
NPS 1½" 200mm 225mm 73mm 98.4mm 127mm 4 x 15.9 16kg
NPS 2" 230mm 230mm 92.1mm 121mm 152.4mm 4 x 19 19kg
NPS 3" 310mm 340mm 127mm 152.4mm 190.5mm 4 x 19 39kg
NPS 4" 350mm 350mm 157.2mm 190mm 228.6mm 8 x 19 44kg

Sectional Drawing

Pos. Item Material
1 Body 1.0619 or 1.4308/1.4408/1.4409 | A216/WCB,CF8/CF8M/CF3M
2 Lining PFA Perfluoralkoxy (standard) or PFA-LantistaticF-L (on request)
3.1 Trim Variant 1 Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow (standard))
3.2 Trim Variant 2 V-Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow)
3.3 Trim Variant 3 U Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow (standard))
4 Bellow PFA

P‑T Diagram

Control Valve P-T-Diagram for different Bellow Configurations

ISO 9001 인증은 품질 관리에 대한 우리의 헌신을 강조합니다. 이는 우리의 생산 공정이 국제 표준에 부합함을 보장하여 일관된 고품질 제품과 향상된 운영 효율성을 제공합니다.

  • Safety Integrity Level

    With SIL (Safety Integrity Level) certification, we ensure that our products comply with the highest safety standards.

    Ensuring operational safety

  • Pressure Equipment Directive

    By complying with the European Pressure Equipment Directive, we ensure that our products meet EU regulations for pressure equipment.

    Certified for high-pressure environments
