PFA Lined Strainer DN 25

GFT9’s PFA-lined T-strainer deliver reliable, corrosion-resistant filtering for your industrial applications. Select the appropriate lining and strainer basket configuration directly on the product page to request a quote, or view our full lineup in the collection. For detailed performance data and material specifications, download the comprehensive product leaflet.

All Ball ValvesProduct Leaflet

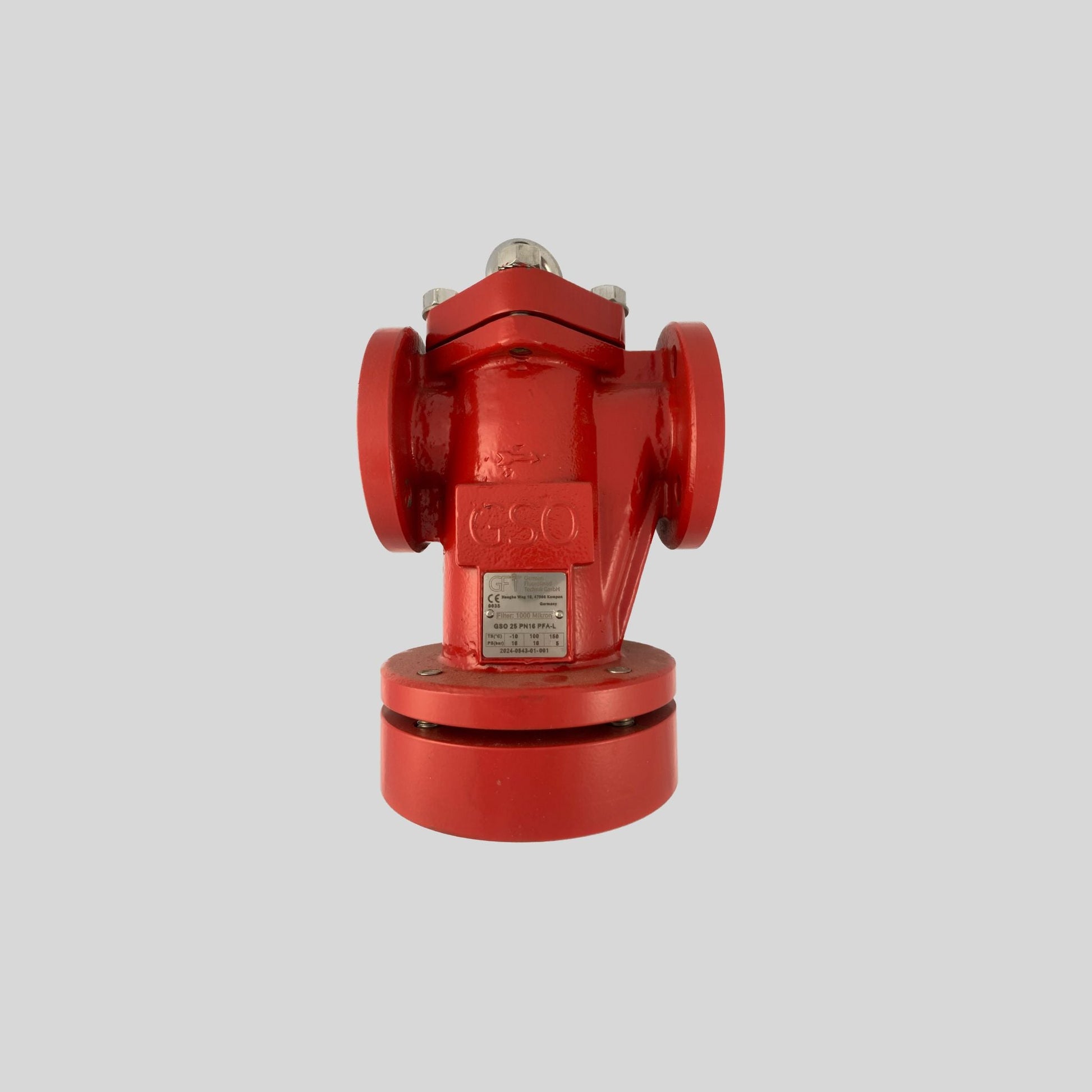

  • PFA Lined Strainer DN 25 DN 25 - Main view - High quality industrial valve by GFT9
  • PFA Lined Strainer DN 25 DN 25 - Basket lifts out easily for cleaning or exchange with zero contact to the fluid. - High quality industrial valve by GFT9

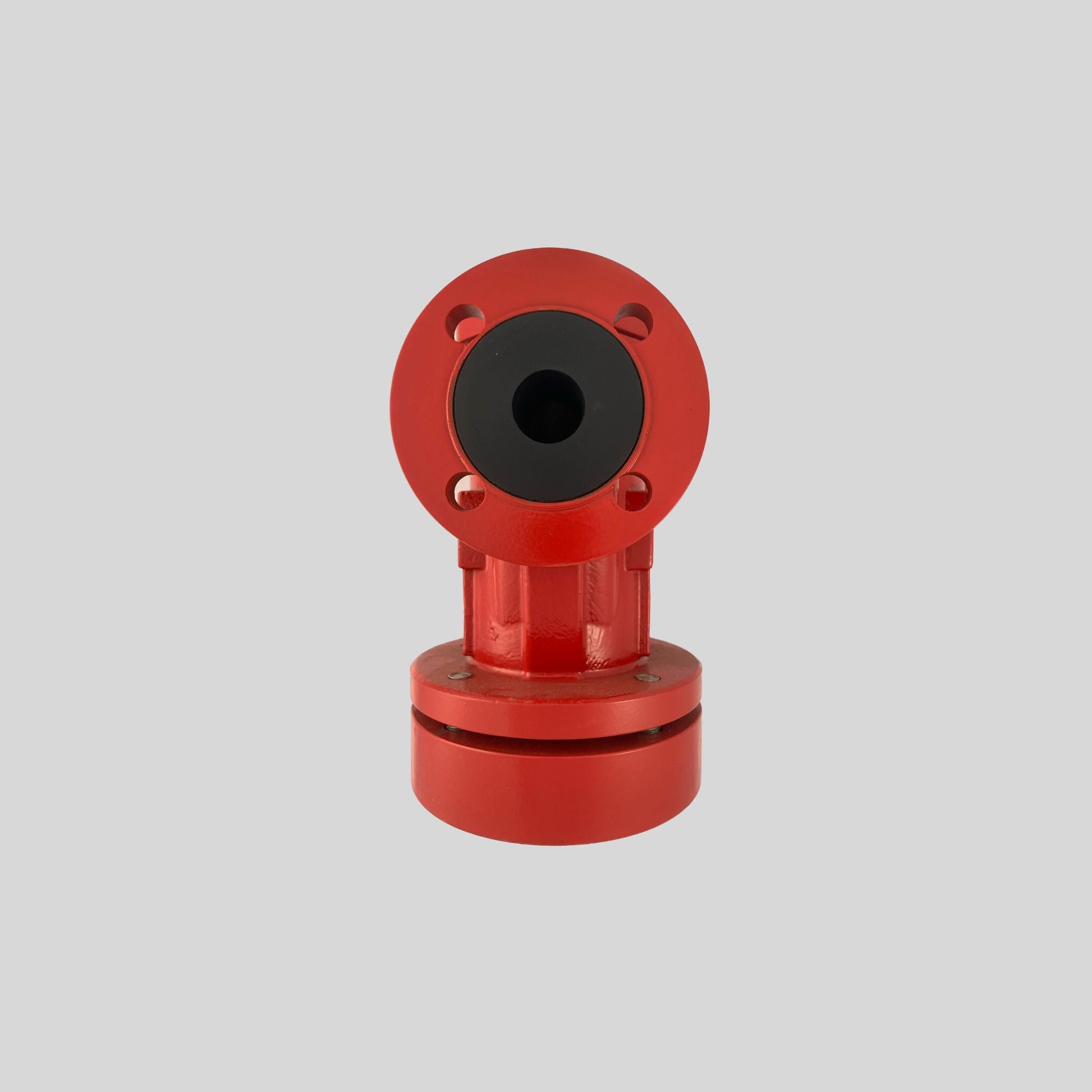

  • PFA Lined Strainer DN 25 DN 25 - Non-conductive PFA lining provides corrosion resistance and vacuum integrity. - High quality industrial valve by GFT9

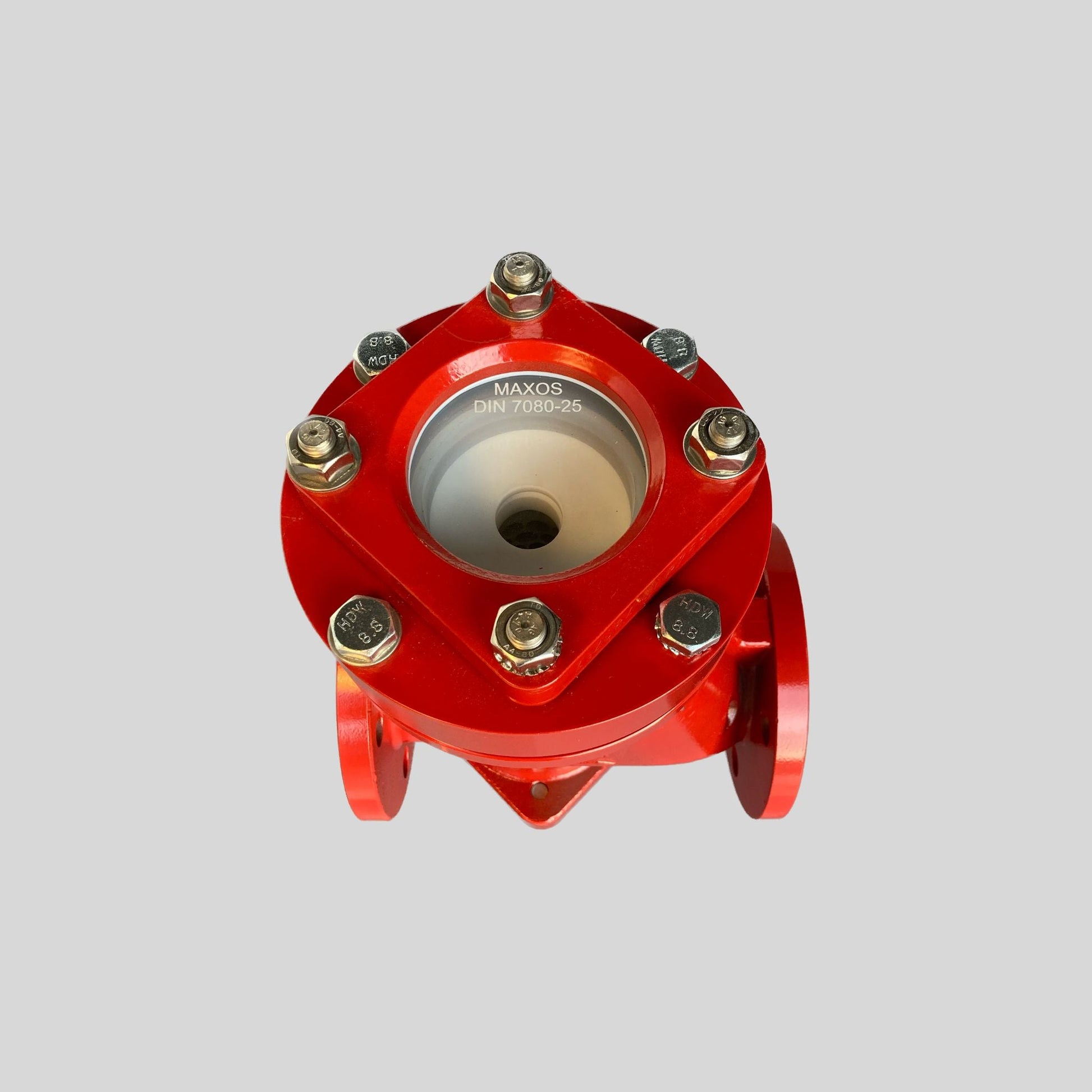

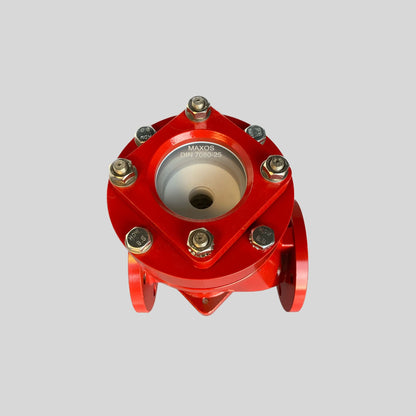

  • PFA Lined Strainer DN 25 DN 25 - Sight-glass add-on reveals dirt accumulation, indicating when to service the basket. - High quality industrial valve by GFT9
  • PFA Lined Strainer DN 25 DN 25 - Basket lifts out easily for cleaning or exchange with zero contact to the fluid. - High quality industrial valve by GFT9
1 5

Size:

DN 25

Body Material:

1.0619

Na vyžádání
Sleva Vyprodáno
Poštovné se vypočítá na pokladně.
Zobrazit veškeré podrobnosti
Name Purion9
Design Norm DIN/ISO | ANSI
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions DIN EN 558-1
Strainer Basket Material: PTFE or PTFE-Carbon-Composite filter element Mesh: ETFE filter mesh size from 85 to 2000my (max. 150°C, for higher temperature, custom mesh provided up to 200°C)
Pressure Range PN 16
Temperature Range -10°C up to +150°C, higher / lower temperatures on request
Quality Control Body 24bar, Dielectric strength test 20kV
Certificates EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

Pos. Item Material
100 1.0619 (A216 WCB)
106 1.0619 (A216 WCB)
107 1.0619 (A216 WCB)
109 1.0619 (A216 WCB)
115 1.0619 (A216 WCB)
216 ETFE
217 1.0619 (A216 WCB)
219 PTFE / PTFE Carbon Composite
220 PTFE / PTFE Carbon Composite
218 PTFE / PTFE Carbon Composite
222 PTFE / PTFE Carbon Composite
234 PTFE / PTFE Carbon Composite
407 PTFE / PTFE Carbon Composite
522 PTFE / PTFE Carbon Composite
900 Stainless steel
901 Stainless steel
902 Stainless steel
920 Stainless steel
936 Stainless steel
99 PFA Virgin

P‑T Diagram

P-T Diagram & Vacuum P-T for PFA / PFA Conductive Lined Strainer

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
