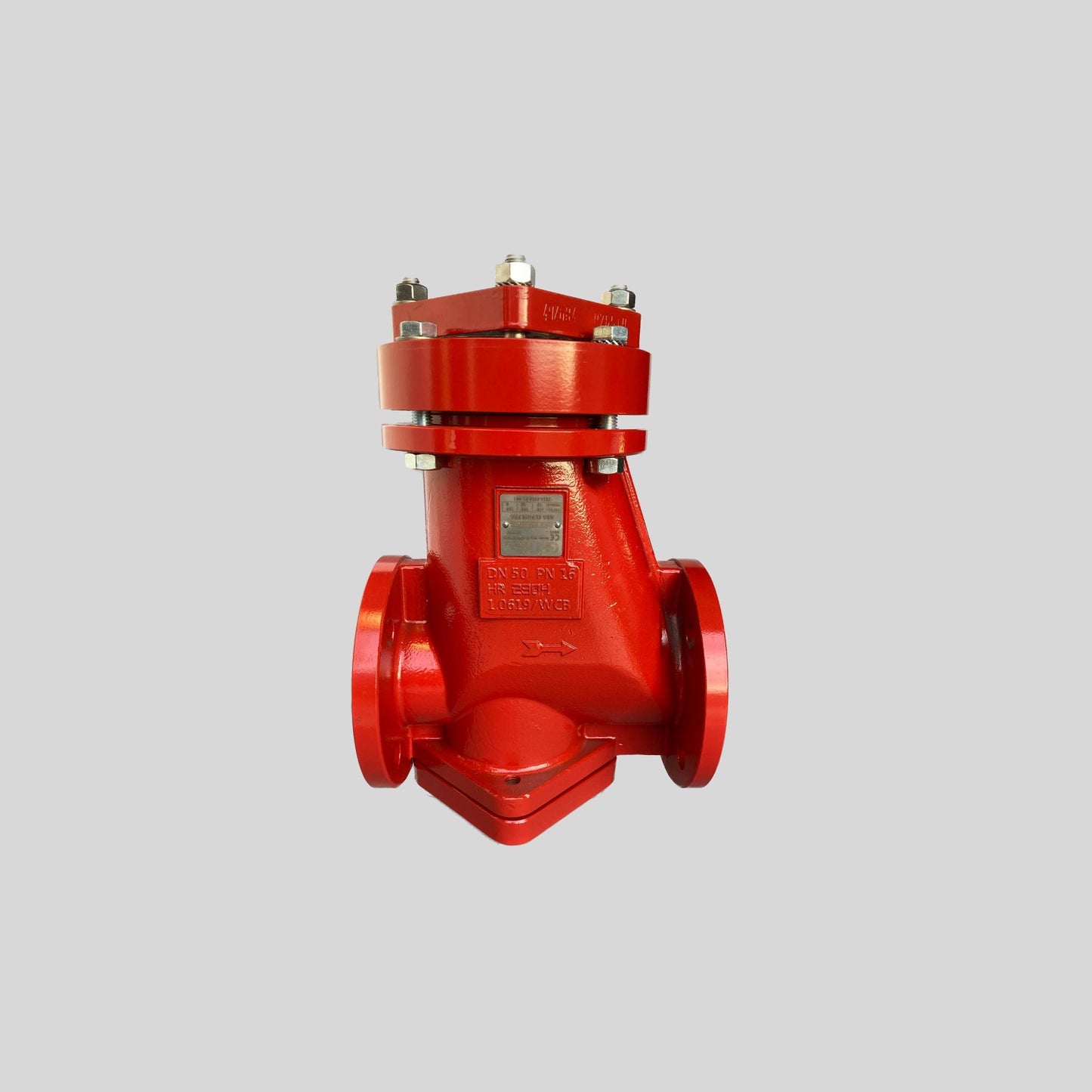

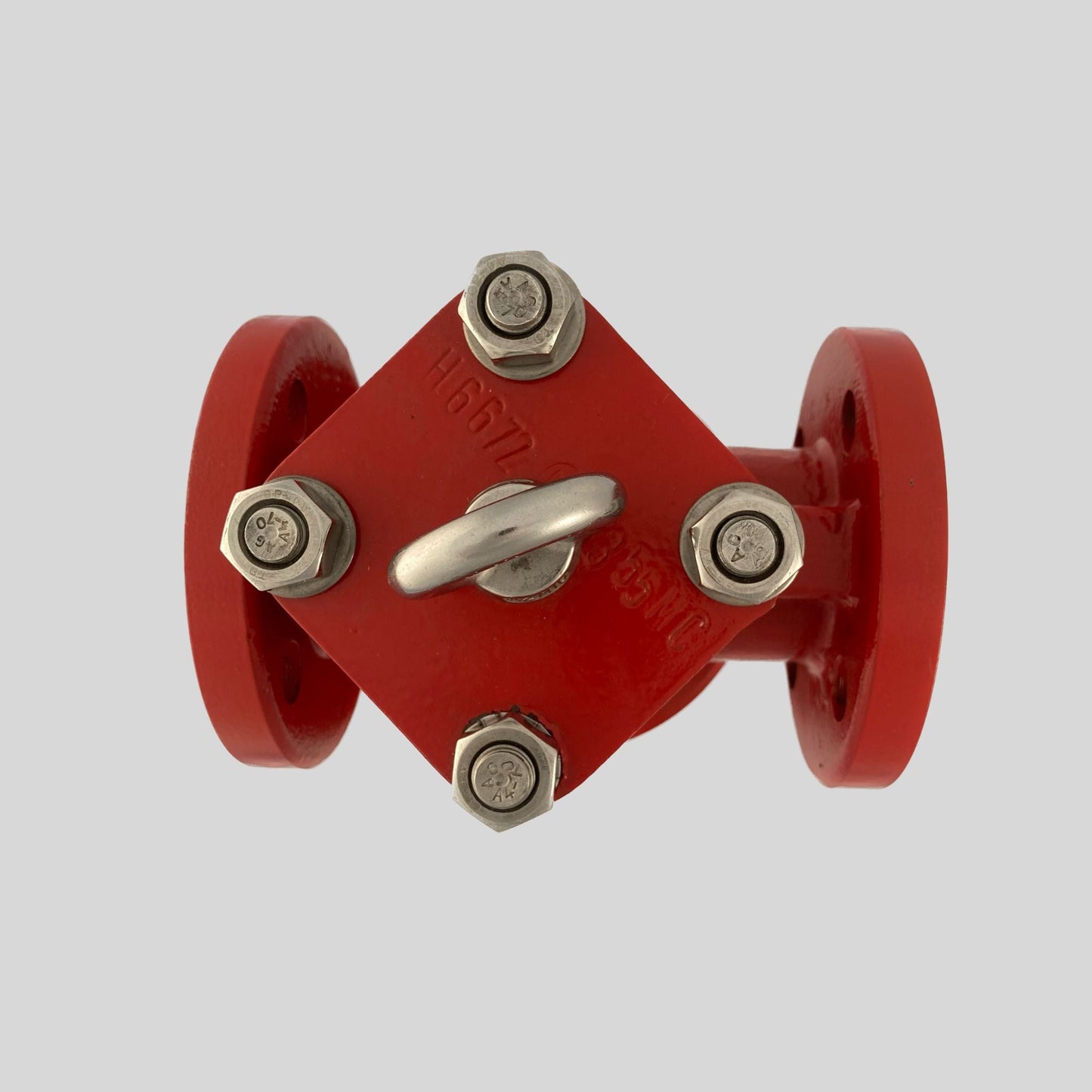

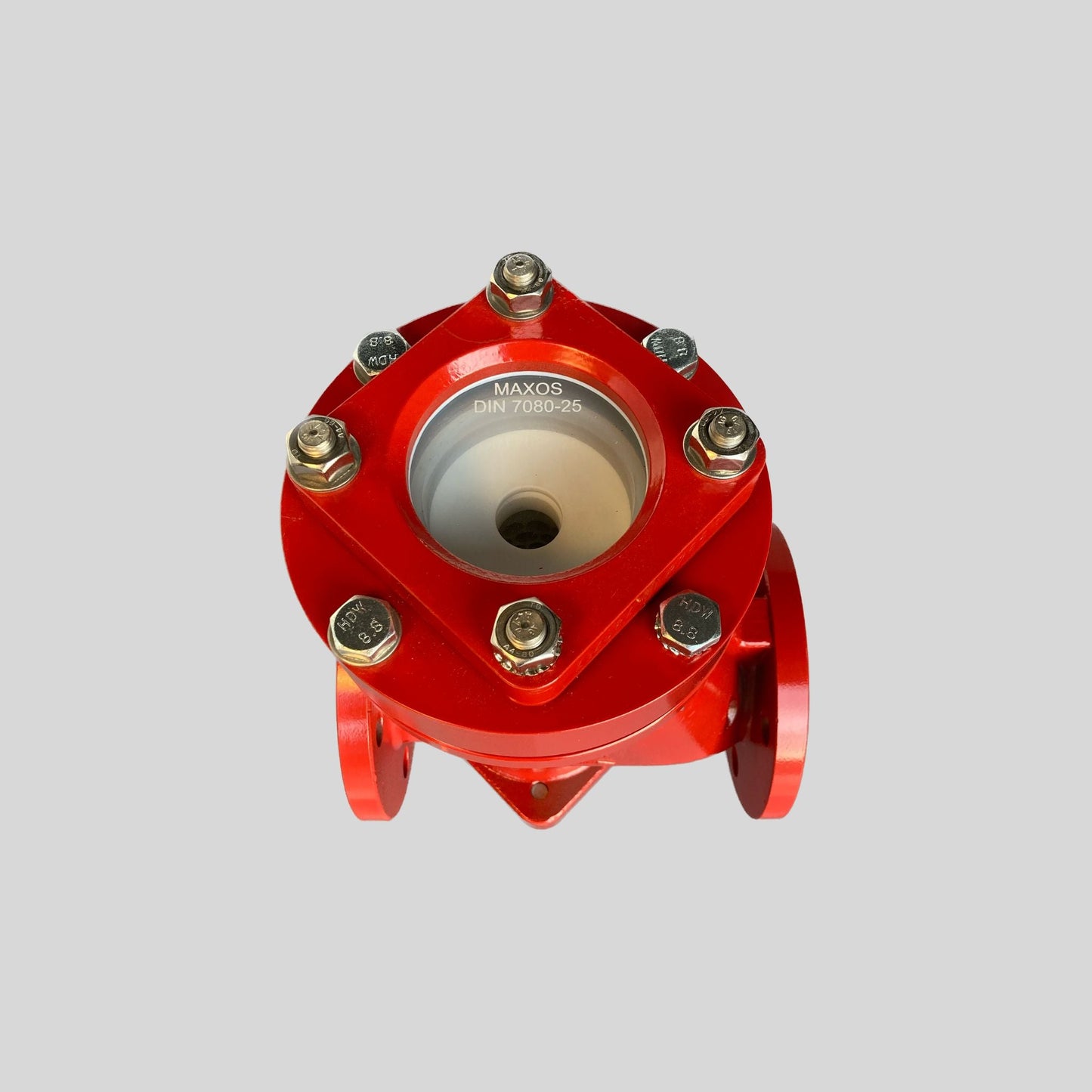

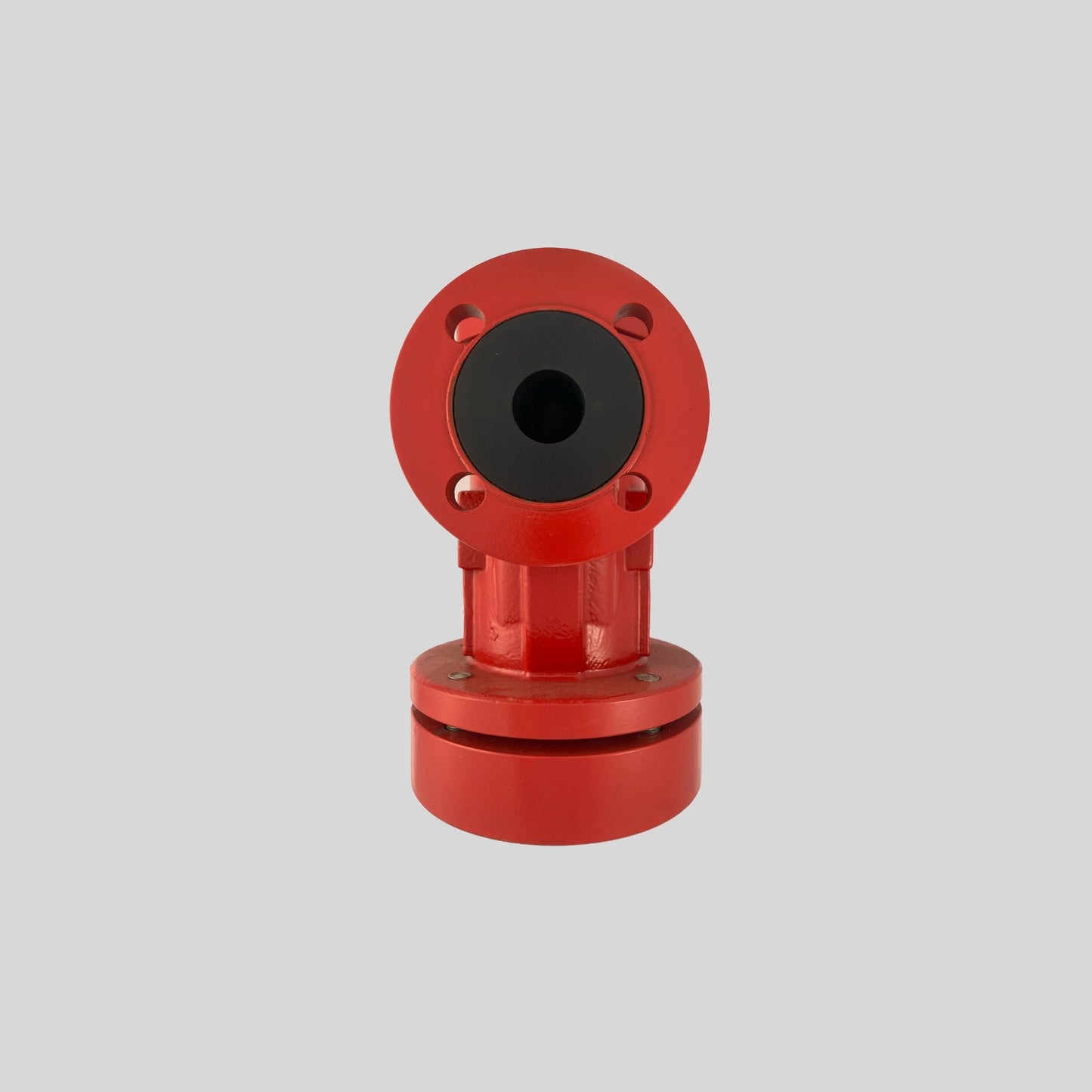

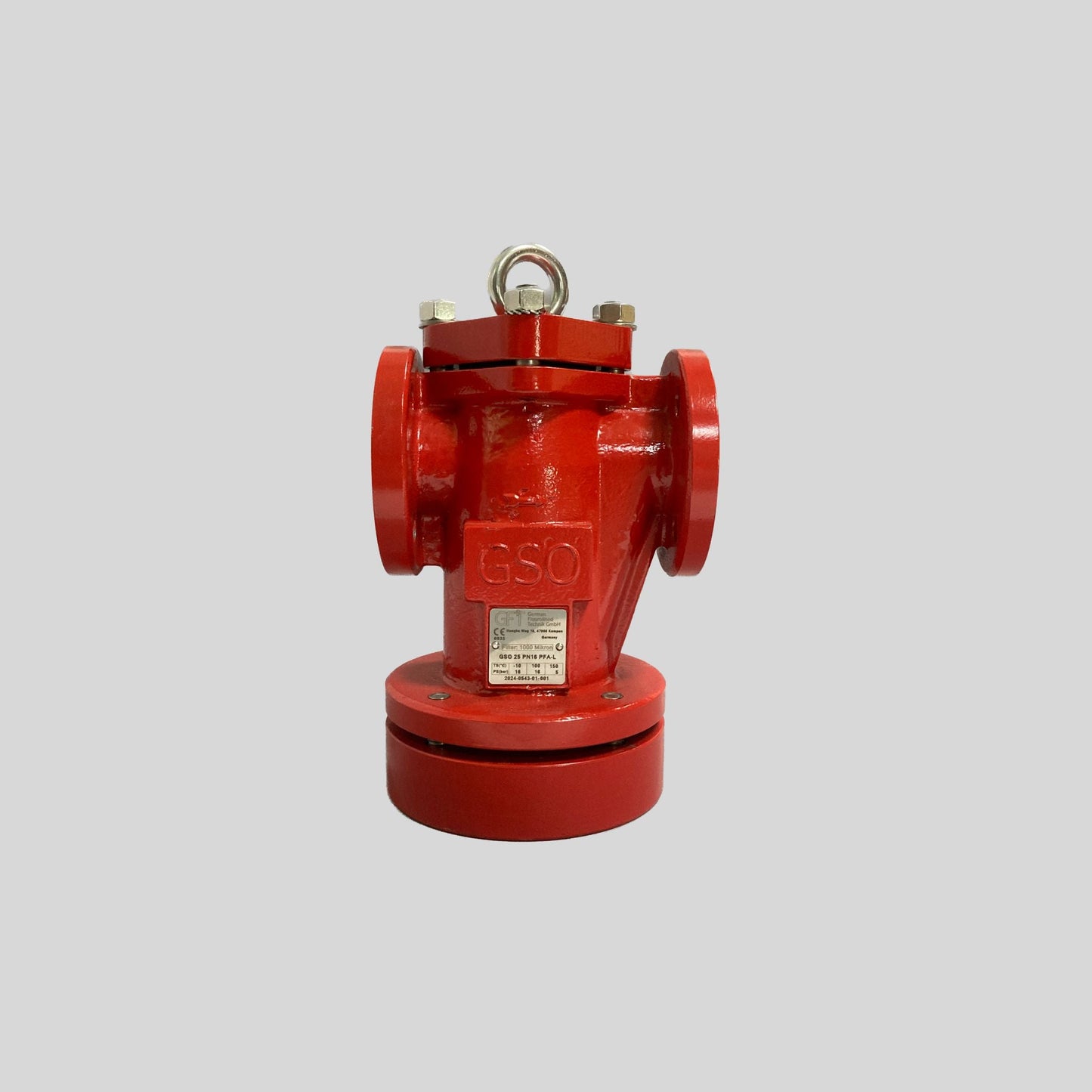

"PFA Lined Strainer " NPS 1"

GFT9’s PFA-lined T-strainer deliver reliable, corrosion-resistant filtering for your industrial applications. Select the appropriate lining and strainer basket configuration directly on the product page to request a quote, or view our full lineup in the collection. For detailed performance data and material specifications, download the comprehensive product leaflet.

All Ball Valves Product Leaflet

NaN -Infinity

Size:

NPS 1"

Body Material:

A216

Adet

Talep üzerine

İndirim Tükendi

Kargo, ödeme sayfasında hesaplanır.

Tüm ayrıntıları görüntüle

Name	Purion9
Design Norm	DIN/ISO \| ANSI
Flange Dimensions	DIN 2501 (PN 16) \| ASME B16.10 (Class 150-RF LP)
Flange Dimensions	DIN 2501 (PN 16) \| ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions	DIN EN 558-1
Strainer Basket	Material: PTFE or PTFE-Carbon-Composite filter element Mesh: ETFE filter mesh size from 85 to 2000my (max. 150°C, for higher temperature, custom mesh provided up to 200°C)
Pressure Range	PN 16
Temperature Range	-10°C up to +150°C, higher / lower temperatures on request
Quality Control	Body 24bar, Dielectric strength test 20kV
Certificates	EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No DIN measurement entries available. Please assign your DIN measurements via the appropriate metafield.

Materials Table & File

No material entries available. Please assign your material entries via the metafield "custom.materials".

P‑T Diagram

P-T Diagram & Vacuum P-T for PFA / PFA Conductive Lined Strainer

Documentation (Optional):

Manufacturer Standard: German-language PDF
Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
