The Filtron9 Strainer Basket for Richter GSO strainers can be quoted directly below. Simply select your size and mesh options and get a dependable quote with pricing and lead times. For in-depth product details, please refer to our Leaflet or Collection Page. This basket is available as a spare part in PTFE or PTFE-carbon composite, and compatible with out GFT9 Strainer as well as the Richter GSO Strainer.

All Ball ValvesProduct Leaflet
  • PFA Lined Strainer DN 150 - “PTFE-lined basket shown alongside a carbon-composite option for chemical resistance.” - High quality industrial valve by GFT9
  • PFA Lined Strainer DN 150 - “Optional nickel alloy mesh element displayed for high-temperature (>150 °C) filtration.” - High quality industrial valve by GFT9

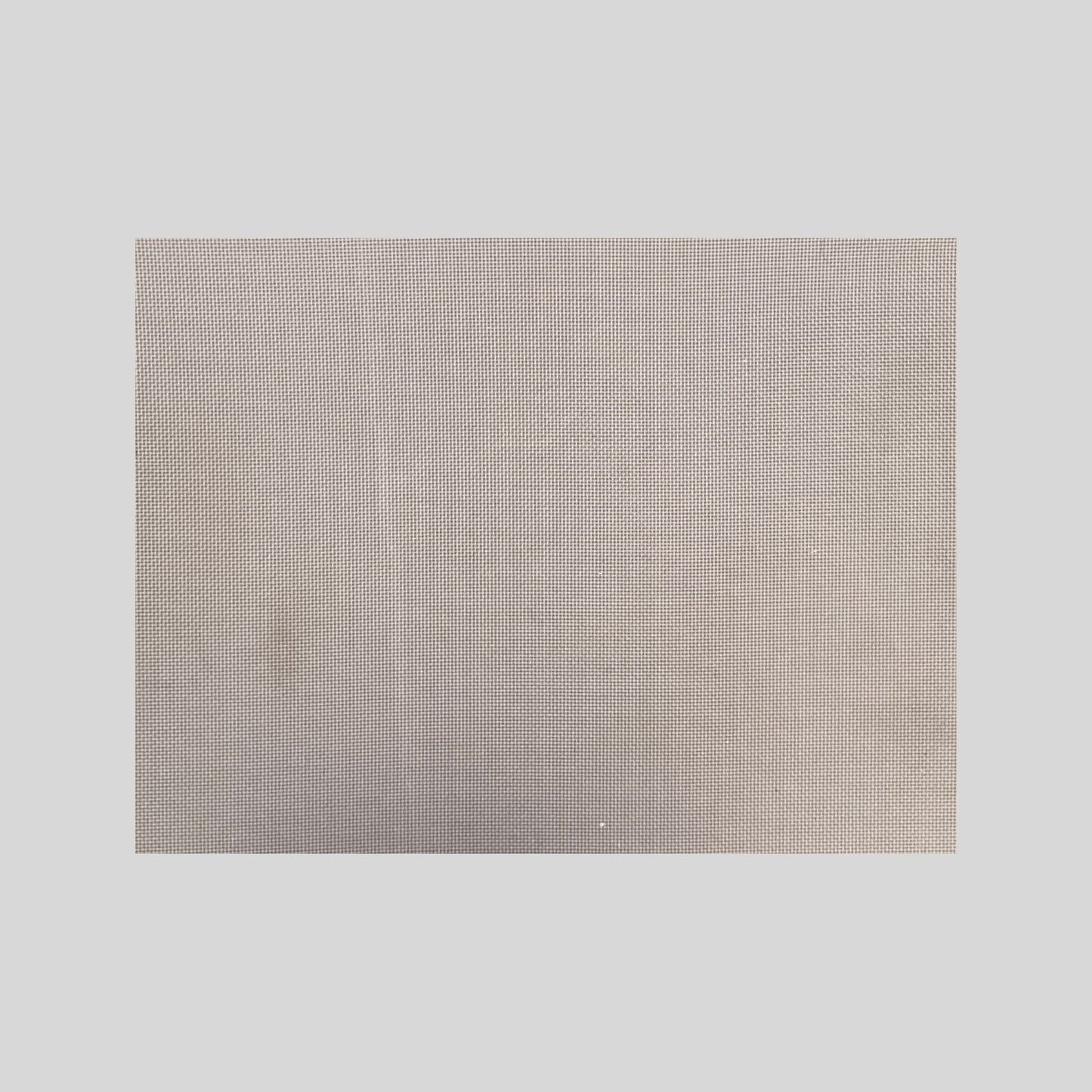

  • PFA Lined Strainer DN 150 - Filter basket with ETFE mesh ranging from 85 µm to 2000 µm for precise particle removal. - High quality industrial valve by GFT9
1 3

Virgin PTFE Strainer Baskets for PFA-lined T-strainers and Y-strainers.

Standard PTFE construction for general chemical service applications. Compatible with GSO-type strainer designs and similar DIN-standard lined strainers.

Size Range: DN 15 to DN 150

Mesh Options (ETFE):

  • 80 µm - Fine filtration
  • 250 µm - Standard filtration
  • 500 µm - Medium particles
  • 1000 µm - Coarse filtration
  • 2000 µm - Large debris protection

Flush Option: Available with or without flush connection for easy cleaning in corrosive environments.

Application: General chemical processing where carbon composite reinforcement is not required. Excellent chemical resistance across most acids, bases, and solvents.
Price on Request
Rea Slutsåld
Frakt beräknas i kassan.
Visa alla uppgifter
Name Purion9
Design Norm DIN/ISO | ANSI
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions DIN EN 558-1
Strainer Basket Material: PTFE or PTFE-Carbon-Composite filter element Mesh: ETFE filter mesh size from 85 to 2000my (max. 150°C, for higher temperature, custom mesh provided up to 200°C)
Pressure Range PN 16
Temperature Range -10°C up to +150°C, higher / lower temperatures on request
Quality Control Body 24bar, Dielectric strength test 20kV
Certificates EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No image selected

No DIN measurement entries available. Please assign your DIN measurements via the appropriate metafield.

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

No image selected

Pos. Item Material
1 Body PTFE / PTFE Carbon

P‑T Diagram

No image selected

No description provided.

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
