"PFA Lined Control Valve" NPS 1½"

GFT9’s PFA-lined globe control valves deliver reliable, corrosion-resistant flow control for your industrial applications. Select the appropriate lining, actuator and stem-plug-bellow configuration directly on the product page to request a quote, or view our full lineup in the collection. For detailed performance data and material specifications, download the comprehensive product leaflet.

All Ball ValvesProduct Leaflet
  • PFA Lined Control Valve NPS 1½ NPS 1½ - Main view - High quality industrial valve by GFT9
  • PFA Lined Control Valve NPS 1½ NPS 1½ - Durable corrosion-resistant, vacuum-proof body suits harsh and low-pressure use. - High quality industrial valve by GFT9
  • PFA Lined Control Valve NPS 1½ NPS 1½ - Valve with pneumatic multi-spring actuator for fast, cost-efficient operation. - High quality industrial valve by GFT9
  • PFA Lined Control Valve NPS 1½ NPS 1½ - Digital positioner supports 4–20 mA and HART, Profibus PA, Foundation Fieldbus. - High quality industrial valve by GFT9
  • PFA Lined Control Valve NPS 1½ NPS 1½ - Valve with pneumatic multi-spring actuator for fast, cost-efficient operation. - High quality industrial valve by GFT9

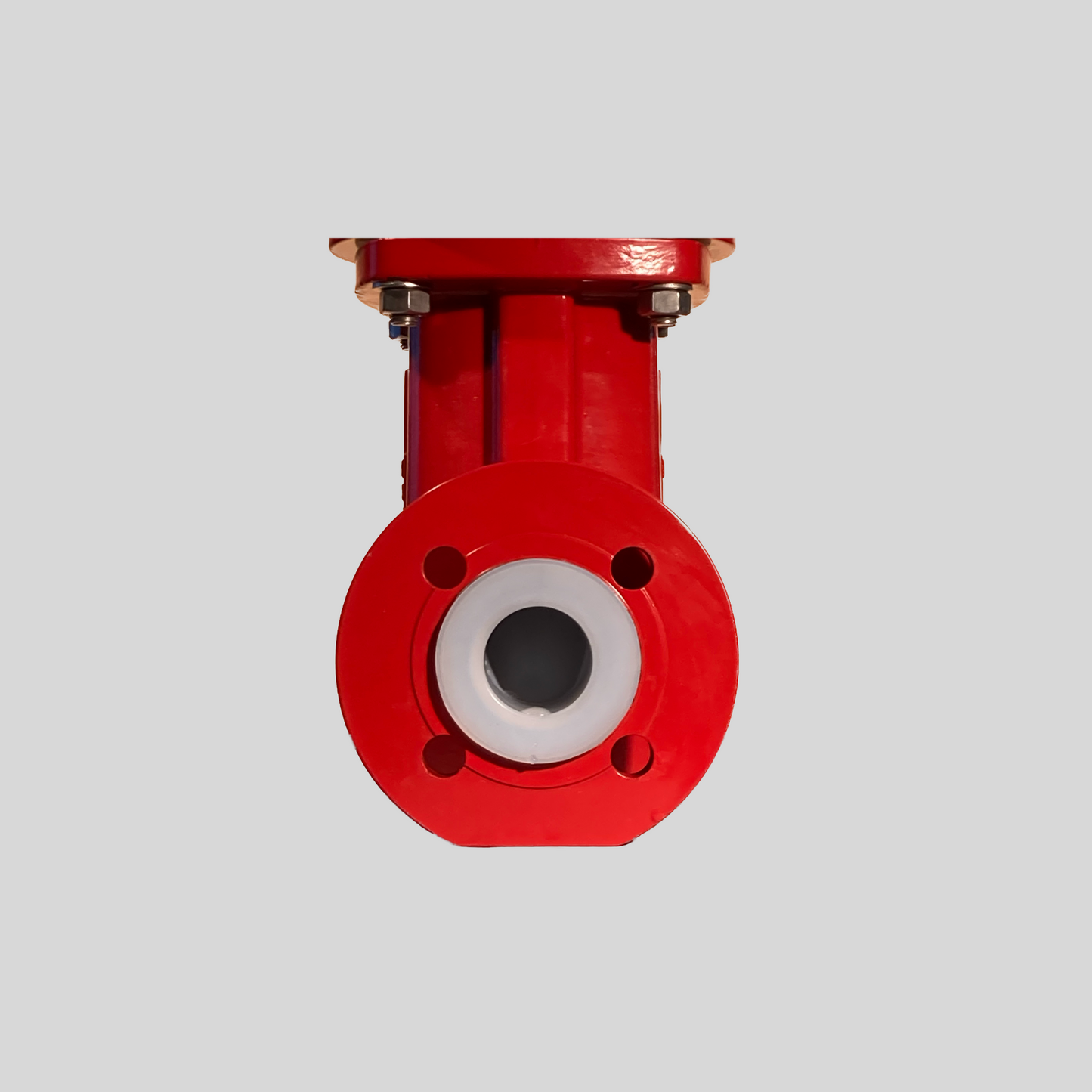

  • PFA Lined Control Valve NPS 1½ NPS 1½ - Replaceable TFM-PTFE seats and plugs ensure durability and precise control. - High quality industrial valve by GFT9
1 6

Size:

NPS 1½"

Body Material:

A216
Price on Request
Rea Slutsåld
Frakt beräknas i kassan.
Visa alla uppgifter
Name Imperium9
Operational Characteristics Likprocentig, linjär, på/av
Design Norm DIN
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions PN (EN 558-1), Series 1
Actuator Connection Aktiverad version tillgänglig.
Plug, Stem and Bellows Plugguide: spindelstyrd, tillval: sätesstyrd (V-plug, U-plug från DN 80 till DN 100) Reglerbarhet: 1:25, V-plug 1:100 (min. kvs-värde 0,01 m³/h till 1,2 m³/h) Bälgar: alla ventiler har kraftiga PFA-bälgar
Pressure Range 0,1 mbar vakuum till 16 bar (kräver specialbälg)
Temperature Range -60°C to +180°C
Leakage Rate leakage rate class VI
Quality Control Kropp 24 bar (P10|P11|P12), dielektrisk hållfasthetstest 15/20 kV, C4 extern beläggning
Certificates EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No DIN measurement entries available. Please assign your DIN measurements via the appropriate metafield.

Materials Table & File

Pos. Item Material
1 Kropp 1.0619 or 1.4308/1.4408/1.4409 | A216/WCB,CF8/CF8M/CF3M
4 Bälg PFA

P‑T Diagram

Reglerventilens P-T-diagram för olika bälgkonfigurationer

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
