PFA Control Valve (DIN-ANSI)

Order Now Or Request a Quote

Precision Control for Corrosive Media

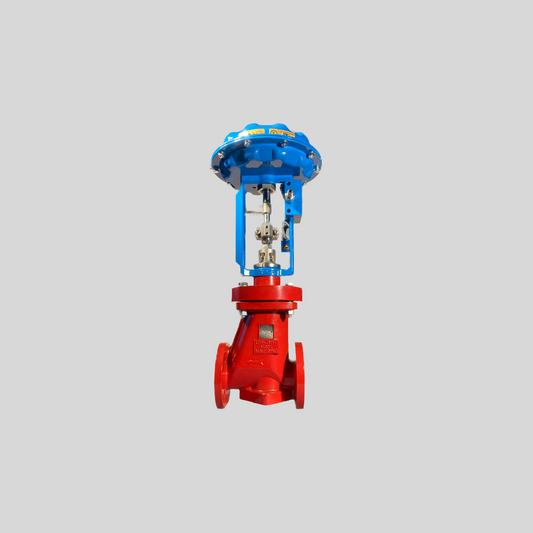

The Imperium9 PFA-Lined Globe Control Valve is engineered for high-precision flow control in aggressive chemical environments. Its 5–6 mm virgin PFA lining offers superior corrosion resistance, while vacuum-proof anchoring ensures leak-free, long-lasting performance.

Equipped with a pneumatic actuator and multi-functional digital positioner, the Imperium9 integrates seamlessly into automated process control systems. TA-Luft compliant stem sealing, a removable bonnet, and high-precision trims simplify maintenance and extend service life. A heavy-duty PFA bellow is supplied as standard for enhanced process safety.

Interchangeable seat and plug designs allow adjustable kv-values, while specialized V- and U-plugs handle small flow rates, cavitation, and high-pressure differentials. Built for extreme pressures, temperatures, and chemically aggressive conditions.

In Depth Control Valve Specifications and Features

Partner with GFT9

  • Global Reach

    Order via our online shop and access all product documentation in various languages.

    About Us

  • Manufacturer

    Offering custom modifications (lining, coating, redesign) and competitive prices.

    Our Capabilities

  • Dependable

    Standard product lead times of 4–6 weeks for regular types and variants.

    Shipping

  • Digital Friendly

    Order via our online shop and access all product documentation in various languages.

    Downloads
Link to

Proven Performance

Industry Applications

With its powerful pneumatic actuator, multi-functional digital positioner, and reliable stem seal, this valve is designed for industries such as chemical processing, biotechnology, and oil and gas, where precision control and operational safety are paramount. More general, its protective anti corrosive PFA lining makes it the perfect choice for handling hazardous or slightly solids-containing media. The adaptability of the GCV series ensures that it meets specific requirements for kvs-values, permissible leakage rates, and noise levels, making it a versatile choice for demanding applications.

Looking for application guidance?

Reglerventil Tabular Overview

Parameter Value
Name Imperium9
Operational Characteristics Likprocentig, linjär, på/av
Design Norm DIN
Size DN 15-100
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions PN (EN 558-1), Series 1
Actuator Connection Aktiverad version tillgänglig.
Plug, Stem and Bellows Plugguide: spindelstyrd, tillval: sätesstyrd (V-plug, U-plug från DN 80 till DN 100) Reglerbarhet: 1:25, V-plug 1:100 (min. kvs-värde 0,01 m³/h till 1,2 m³/h) Bälgar: alla ventiler har kraftiga PFA-bälgar
Lining Options PFA, PFA/AS, PVDF
Body Materials 1.0619 , 1.4308, 1.4408/ A216WCB, CF8-M or CF-8
Pressure Range 0,1 mbar vakuum till 16 bar (kräver specialbälg)
Temperature Range -60°C to +180°C
Leakage Rate leakage rate class VI
Custom Options Värmejacka
Quality Control Kropp 24 bar (P10|P11|P12), dielektrisk hållfasthetstest 15/20 kV, C4 extern beläggning
Certificates EU Pressure Equipment Directive 2014/68/EU
1 5

Find all our Reglerventils & Request a Quote

Filter the product grid below by size, lining, and body material to find your ideal product. Once selected, add it to your cart to request a free, non-binding quote—adding to your cart does not commit you to a purchase. We’ll promptly provide pricing and estimated delivery times.

Prefer the traditional B2B approach, need clarification, or have a custom request? Feel free to reach out via email or call our sales team. Choose the method that suits you best!

Contact GFT9 Mail

14 produkter

Technical Specifications

Dimensional Measurements

Size L H ød øk øD Bolting KVS Weight
DN 15 130 mm 130 mm 45 mm 65 mm 95 mm 4 x 14 (M12) VPLugs: 6 kg
DN 20 150 mm 130 mm 58 mm 75 mm 105 mm 4 x 14 (M12) 6 kg
DN 25 160 mm 185 mm 68 mm 85 mm 115 mm 4 x 14 (M12) 11 kg
DN 40 200 mm 225 mm 88 mm 110 mm 150 mm 4 x 18 (M16) 16 kg
DN 50 230 mm 230 mm 102 mm 125 mm 165 mm 4 x 18 (M16) 19 kg
DN 80 310 mm 340 mm 138 mm 160 mm 200 mm 8 x 18 (M16) 39 kg
DN 100 350 mm 350 mm 158 mm 180 mm 220 mm 8 x 18 (M16) 44 g
Size L1 H ød øk øD Bolting Weight
NPS ½" 130 mm 130 mm 34,9 mm 60,3 mm 88,9 mm 4 x 15.9 6 kg
NPS ¾" 130 mm 130 mm 42,9 mm 69,8 mm 98,4 mm 4 x 15.9 6 kg
NPS 1" 160 mm 185 mm 50,8 mm 79,4 mm 108 mm 4 x 15.9 11 kg
NPS 1½" 200 mm 225 mm 73 mm 98,4 mm 127 mm 4 x 15.9 16 kg
NPS 2" 230 mm 230 mm 92,1 mm 121 mm 152,4 mm 4 x 19 19 kg
NPS 3" 310 mm 340 mm 127 mm 152,4 mm 190,5 mm 4 x 19 39 kg
NPS 4" 350 mm 350 mm 157,2 mm 190 mm 228,6 mm 8 x 19 44 kg

Materials Table & File

Pos. Item Material
1 Kropp 1.0619 or 1.4308/1.4408/1.4409 | A216/WCB,CF8/CF8M/CF3M
2 Foder PFA Perfluoralkoxy (standard) eller PFA-LantistaticF-L (på begäran)
3.1 Trimvariant 1 Plug (TFM-PTFE) | Säte (TFM-PTFE) | Bälg (PFA HD-bälg (standard))
3.2 Trimvariant 2 V-plugg (TFM-PTFE) | Säte (TFM-PTFE) | Bälg (PFA HD-bälg)
3.3 Trimvariant 3 U-plugg (TFM-PTFE) | Säte (TFM-PTFE) | Bälg (PFA HD-bälg (standard))
4 Bälg PFA

P‑T Diagram

Reglerventilens P-T-diagram för olika bälgkonfigurationer
