PFA Lined Sight Glass DN 100

GFT9’s PFA-lined sight glass deliver reliable, corrosion-resistant flow monitoring for your industrial applications. Select the appropriate lining configuration directly on the product page to request a quote, or view our full lineup in the collection. For detailed performance data and material specifications, download the comprehensive product leaflet.

All Ball ValvesProduct Leaflet
  • PFA Lined Sight Glass DN 100 DN 100 - Main view - High quality industrial valve by GFT9

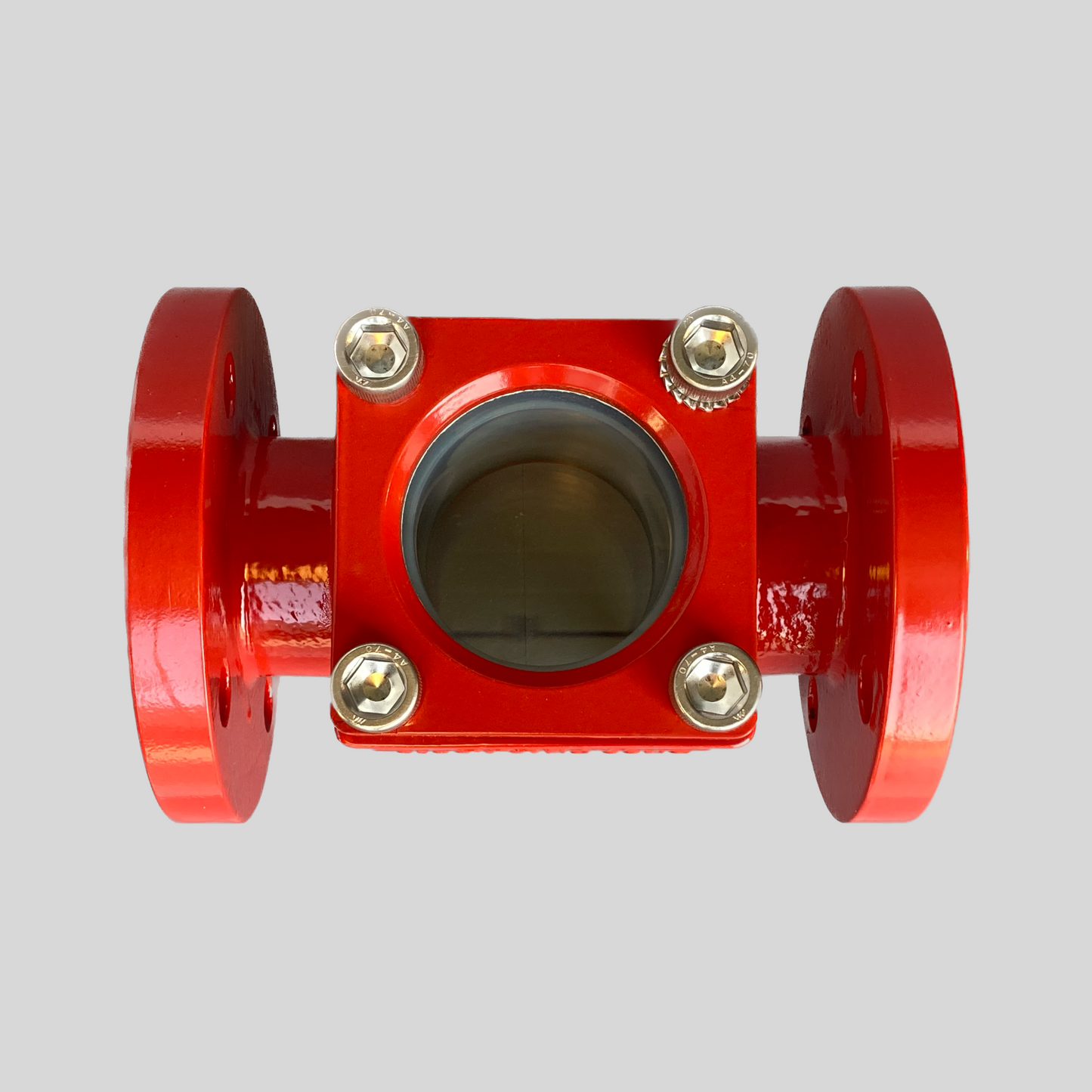

  • PFA Lined Sight Glass DN 100 DN 100 - Two borosilicate DIN 7080 windows provide an unobstructed view of the process media. - High quality industrial valve by GFT9

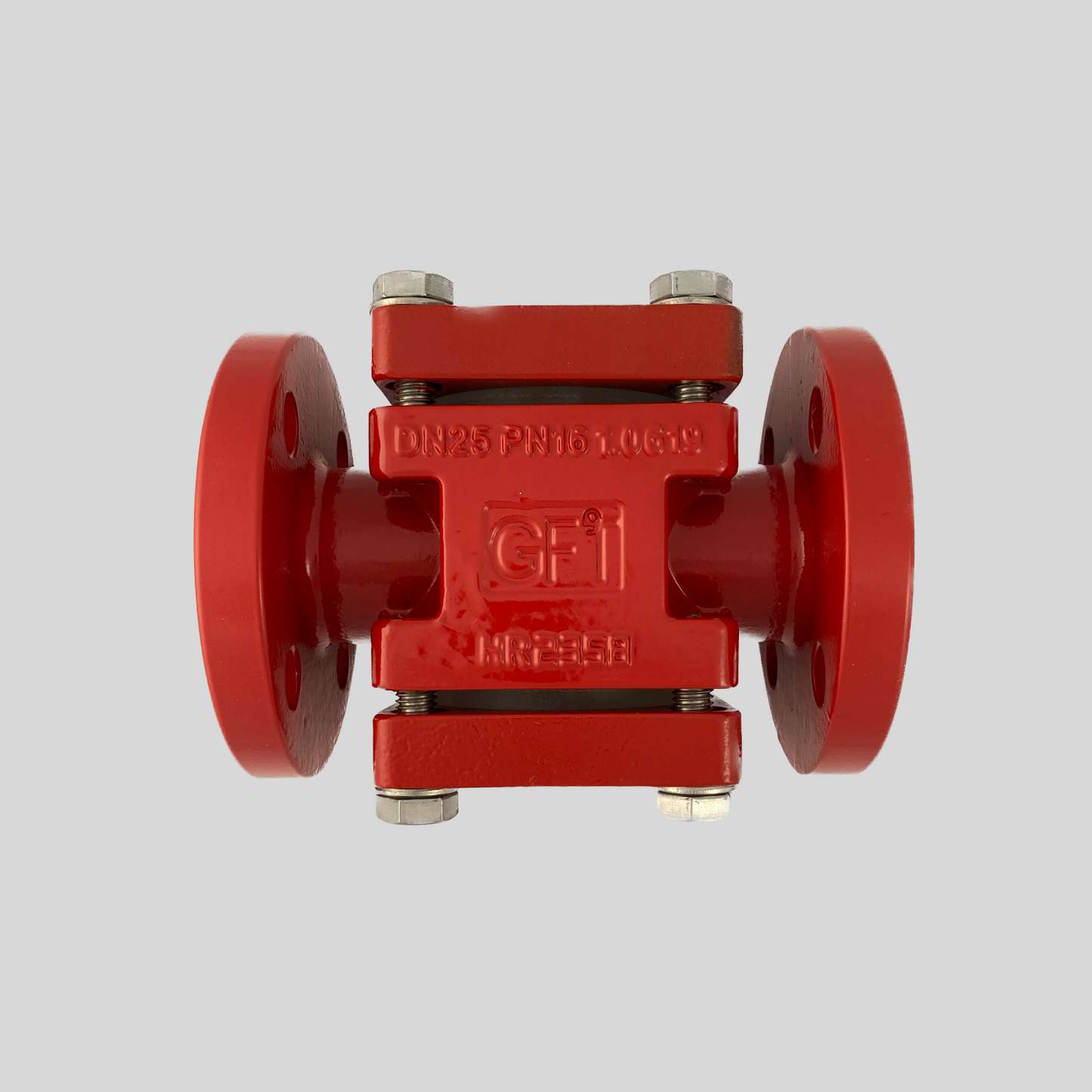

  • PFA Lined Sight Glass DN 100 DN 100 - Durable, corrosion-resistant materials ensure long service life in harsh conditions. - High quality industrial valve by GFT9
  • PFA Lined Sight Glass DN 100 DN 100 - Simple flange connection allows quick mounting and maintenance without tools. - High quality industrial valve by GFT9

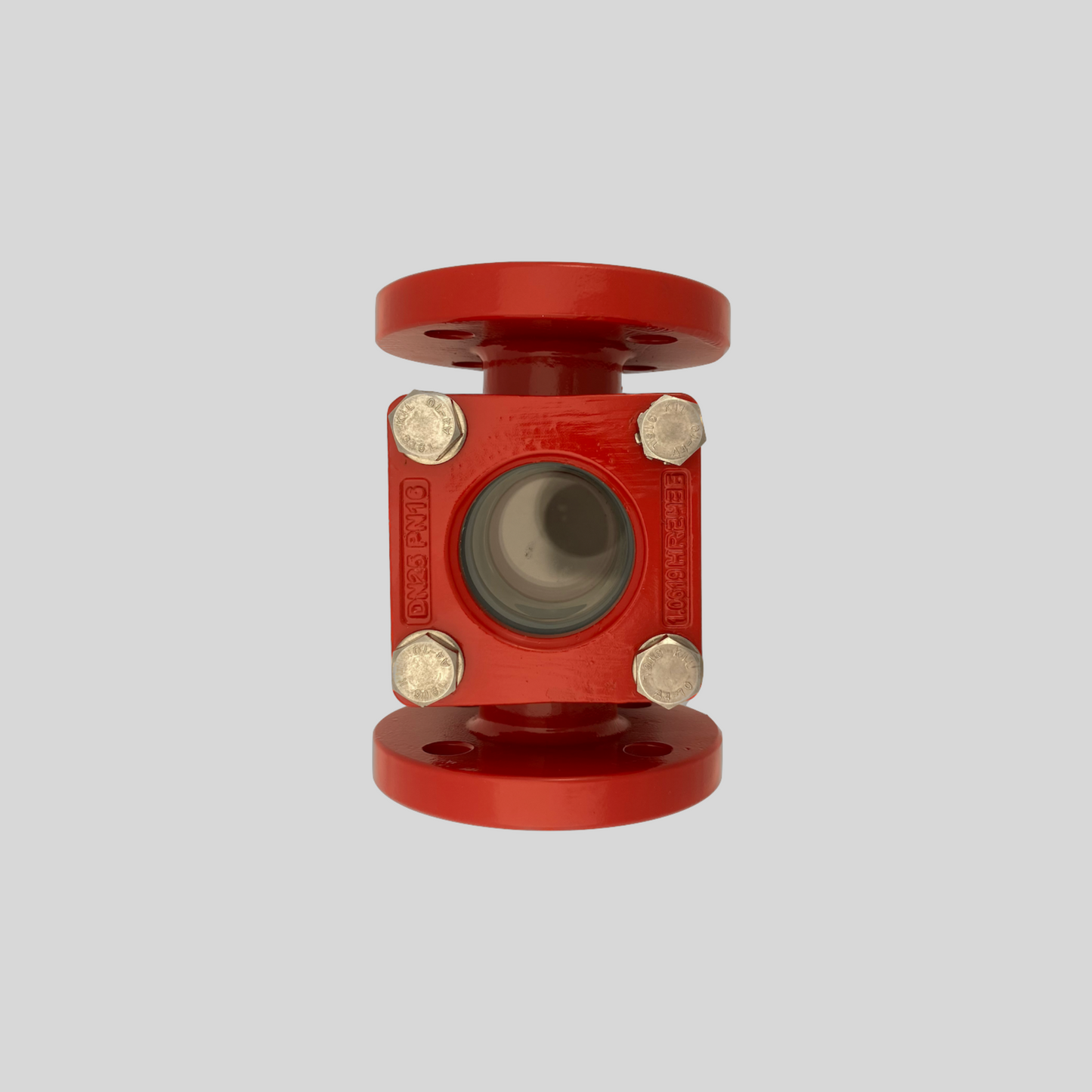

  • PFA Lined Sight Glass DN 100 DN 100 - Sight glass mounts vertically or horizontally for easy installation in any environment. - High quality industrial valve by GFT9
  • PFA Lined Sight Glass DN 100 DN 100 - Rated vacuum-proof down to –1 bar, suitable for pressure and vacuum applications. - High quality industrial valve by GFT9
1 6

Size:

DN 100

Body Material:

1.0619
Su richiesta
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Visualizza dettagli completi
Name Videron9
Design Norm DIN/ISO | ANSI
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions PN (EN 558-1), Series 1 | ANSI-B-16.5
Pressure Range 16 bar
Temperature Range -10°C up to 150°C
Certificates EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

Pos. Item Material
1 Body 1.0619 (A216 WCB), 1.4408 (CF-8M), 1.4116 (SS), Carbon Steel
Lining PFA, PFA/AS, FEP, PP, PVDF
2 Cover Plate 1.0619 (A216 WCB), 1.4408 (CF-8M), 1.4116 (SS), Carbon Steel
3 Glass Borosilicate Glass (DIN 7080)
4 Support PTFE/PTFE
5 Bolts and Nuts Stainless Steel A2, A4, a.A./o. o. req

P‑T Diagram

Sight Glass Pressure Temperature Diagram

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
