PFA Lined Control Valve

Imperium9

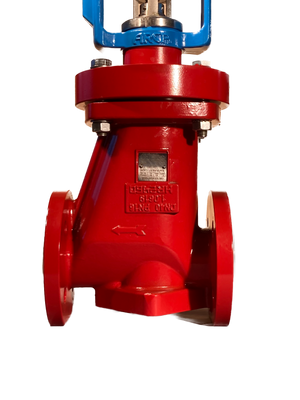

The Imperium9 PFA-Lined Globe Control Valve is engineered for high-precision flow control in aggressive chemical environments. Its virgin PFA lining (5-6 mm thick) provides superior corrosion resistance, while its vacuum-proof anchoring ensures a leak-free, long-lasting performance. Equipped with a powerful pneumatic actuator and a multi-functional digital positioner (supporting HART, Profibus, and Fieldbus communication), the Imperium9 enables seamless integration into automated process control systems. The TA-Luft compliant stem seal, removable bonnet, and high-precision trims allow for easy maintenance and extended durability. Its interchangeable seat and plug system ensures adjustable kv-values for precise control, while specialized V-plugs and U-plugs are designed to handle small flow rates, cavitation risks, and high-pressure differentials. Additionally, its standard and heavy-duty PFA bellows options provide enhanced safety and contamination prevention for industries handling pure, permeating, or highly reactive media. Built to handle extreme pressures, temperatures, and chemically aggressive conditions, the Imperium9 is the go-to solution for demanding flow control applications.

Core PFA Features

Corrosion Resistance

Delivers superior chemical resistance against diverse corrosive agents, extending equipment lifespan.

Low Friction / Non-Stick

Minimizes friction and buildup for smooth flow and reduced wear.

Electrical Insulation

Provides robust insulation for safe, reliable performance in critical applications.

Thermal Stability

Maintains consistent performance across extreme temperatures, reducing maintenance needs.

Key Specifications

Design Norm: DIN | ANSI • Operational Characteristics: Equal percentage, Linear, On/Off • Size: DN 15-100| NPS ½"-4” • Face-to-Face Dimensions: PN (EN 558-1), Series 1 | ANSI-B-16.5 • Flange Dimensions: DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP) • Plug & Stem: Plug Guide: stem guided, optional: seat guided (V-plug, U-plug from DN 80 to DN 100) Rangeability: 1:25, V-plug 1:100 (min. kvs-value 0.01 m³/h to 1.2 m³/h) Bellows: all valves are in heavy-duty PFA bellows • Lining: PFA, PFA/AS, PVDF • Body: 1.0619 , 1.4308, 1.4408, Carbon Steel / A216WCB, CF8-M or CF-8, Carbon Steel • Pressure Range: 0.1 mbar vacuum to 16 bar (requires special bellows) • Temperature Range: -60°C to +180°C • Leakage Rate: leakage rate class VI • Certificates: EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL • Quality: Body 24 bar, Dielectric strength test 20 kV

Product overview

Partner with GFT9

Global Reach

Based in Germany, delivering worldwide through our global network.

Manufacturer

Decades of experience in PFA lining & manufacturing

Dependable

Reliable Lead Time, routinely between 1-6 weeks.

Digital Friendly

Quote, buy & manage documentation in one place.
+49 2152 9148591 | sales@gft9.shop
GFT 9 PFA Transfer Molding Meets Precision Engineering

GFT9 | Vannes de contrôle revêtues de PFA | Fiables dans des médias agressifs Features

Feature Image 5

Powerful Valve Actuator


The valve is equipped with a pneumatic multi-spring actuator for rapid operation, constant seating force, and cost efficiency. Electric actuators are available as an option.

Multi-Functional Digital Positioner


The digital positioner is a versatile interface for process control, operating with 4 to 20 mA signals and supporting HART, Profibus (PA), and Foundation Fieldbus (FF) communication. It enables bidirectional data exchange and can be configured on-site or remotely.

Reliable Stem Seal


The stem seal is TA-Luft (Clean Air Act) compliant, offering a tight seal that prevents emissions and withstands corrosion.

Removable Bonnet (Top Entry)


The bonnet allows for easy access to internal components, facilitating maintenance and minimizing downtime.

Robust, High-Precision Trims


The valve is equipped with replaceable seats and plugs made from TFM-PTFE, ensuring durability and easy serviceability. Special valve trims such as V-plugs and U-plugs can handle small kv-values and high-pressure differentials.

Customizable Bellows


The PFA bellows (standard or heavy-duty) protect against leakage and corrosion, available for a wide range of media and operating conditions (see below for detailed analysis).

Interchangeable Plug and Seat


The TFM-PTFE seat and plug can be swapped to adjust kv-values, offering high precision in control, even under extreme conditions (see below for detailed analysis).

Safety Features


Equipped with safety packing, stroke limitation, and monitoring connections, the valve is designed for high-pressure and high-temperature applications

Our GFT9 | Vannes de contrôle revêtues de PFA | Fiables dans des médias agressifs Certificates

Safety Integrity Level

Safety Integrity Level

Learn More
Pressure Equipment Directive

Pressure Equipment Directive

Learn More
+49 2152 9148591 | sales@gft9.shop
GFT 9 PFA Transfer Molding Meets Precision Engineering

Imperium9 Materials

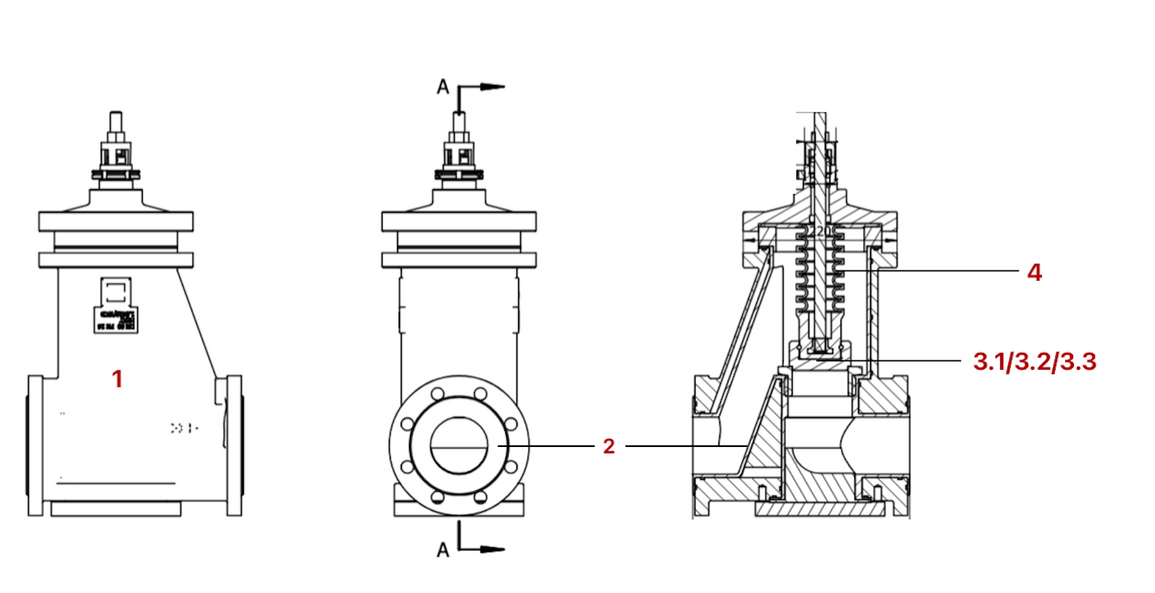

Materials Drawing
Pos. Item Material
1 Body 1.0619 or 1.4308/1.4408/1.4409 | A216/WCB,CF8/CF8M/CF3M
2 Lining PFA Perfluoralkoxy (standard) or PFA-LantistaticF-L (on request)
3.1 Trim Variant 1 Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow (standard))
3.2 Trim Variant 2 V-Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow)
3.3 Trim Variant 3 U Plug (TFM-PTFE) | Seat (TFM-PTFE) | Bellow (PFA HD-bellow (standard))
4 Bellow PFA
+49 2152 9148591 | sales@gft9.shop
GFT 9 PFA Transfer Molding Meets Precision Engineering

Imperium9 Measurements

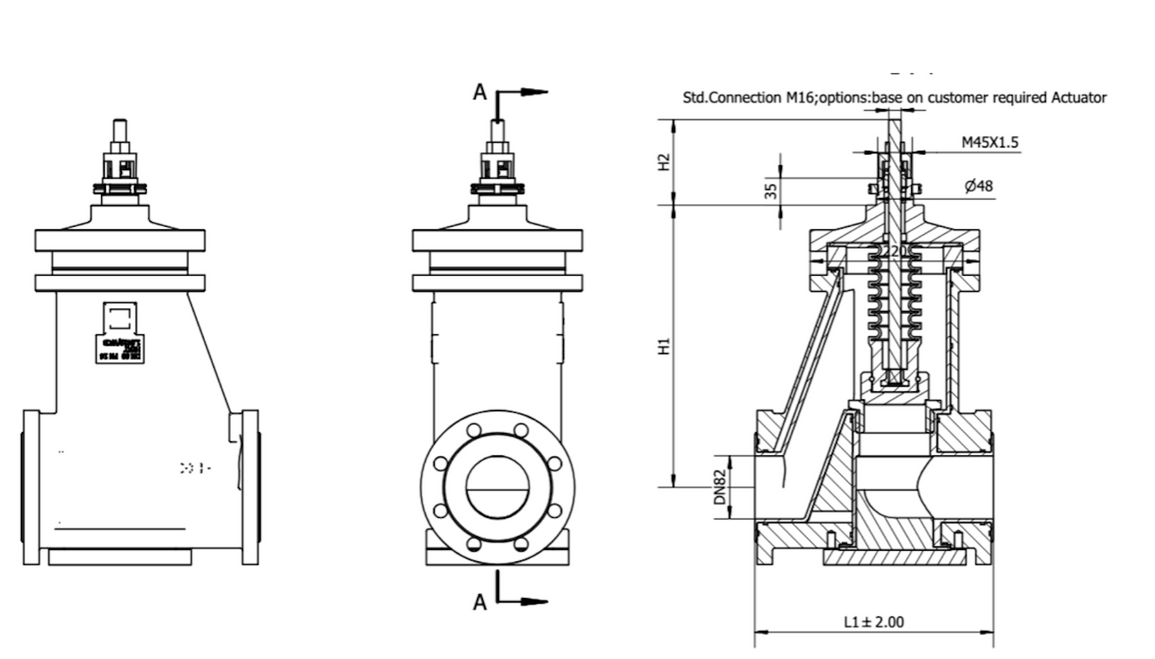

Measurement Drawing
Size L H ød øk øD Bolting Weight
DN 15 130 mm 130 mm 45 mm 65 mm 95 mm 4 x 14 (M12) 6 kg
DN 20 150 mm 130 mm 58 mm 75 mm 105 mm 4 x 14 (M12) 6 kg
DN 25 160 mm 185 mm 68 mm 85 mm 115 mm 4 x 14 (M12) 11 kg
DN 40 200 mm 225 mm 88 mm 110 mm 150 mm 4 x 18 (M16) 16 kg
DN 50 230 mm 230 mm 102 mm 125 mm 165 mm 4 x 18 (M16) 19 kg
DN 80 310 mm 340 mm 138 mm 160 mm 200 mm 8 x 18 (M16) 39 kg
DN 100 350 mm 350 mm 158 mm 180 mm 220 mm 8 x 18 (M16) 44 g
Size L1 H ød øk øD Bolting Weight
NPS ½" 130 mm 130 mm 34,9 mm 60,3 mm 88,9 mm 4 x 15.9 6 kg
NPS ¾" 130 mm 130 mm 42,9 mm 69,8 mm 98,4 mm 4 x 15.9 6 kg
NPS 1" 160 mm 185 mm 50,8 mm 79,4 mm 108 mm 4 x 15.9 11 kg
NPS 1½" 200 mm 225 mm 73 mm 98,4 mm 127 mm 4 x 15.9 16 kg
NPS 2" 230 mm 230 mm 92,1 mm 121 mm 152,4 mm 4 x 19 19 kg
NPS 3" 310 mm 340 mm 127 mm 152,4 mm 190,5 mm 4 x 19 39 kg
NPS 4" 350 mm 350 mm 157,2 mm 190 mm 228,6 mm 8 x 19 44 kg
+49 2152 9148591 | sales@gft9.shop
GFT 9 PFA Transfer Molding Meets Precision Engineering

Pressure Temperature Diagram

Pressure-Temperature diagram
Vacuum Pressure-Temperature diagram
+49 2152 9148591 | sales@gft9.shop
GFT 9 PFA Transfer Molding Meets Precision Engineering

Industry Use Cases

With its powerful pneumatic actuator, multi-functional digital positioner, and reliable stem seal, this valve is designed for industries such as chemical processing, biotechnology, and oil and gas, where precision control and operational safety are paramount. More general, its protective anti corrosive PFA lining makes it the perfect choice for handling hazardous or slightly solids-containing media. The adaptability of the GCV series ensures that it meets specific requirements for kvs-values, permissible leakage rates, and noise levels, making it a versatile choice for demanding applications.

Chemical & Fine Chemical Processing

Ensures safe handling of highly corrosive media and precise control of aggressive chemicals.

Pharmaceutical & Biopharmaceutical Production

Ideal for pure media applications, with customizable heavy-duty PFA bellows for sterility.

Oil & Gas Processing & Refining

Withstands high temperatures and pressures, preventing cavitation and leakage.

Battery & Semiconductor Manufacturing

Provides contamination-free control of ultrapure and hazardous process fluids.

Water Treatment & H2O Generation

Regulates flow and dosing of corrosive chemicals in purification and desalination plants.

Food & Beverage Processing

Ensures hygienic flow control with materials suitable for food-grade applications.

Mining & Mineral Processing

Handles abrasive and corrosive slurry flows with reinforced valve trims.

Biodiesel & Renewable Energy Production

Provides precision metering for aggressive biofuels and chemical additives.
