Strainer Basket | DN 150 | GFT9 Spare Parts

The Filtron9 Strainer Basket for Richter GSO strainers can be quoted directly below. Simply select your size and mesh options and get a dependable quote with pricing and lead times. For in-depth product details, please refer to our Leaflet or Collection Page. This basket is available as a spare part in PTFE or PTFE-carbon composite, and compatible with out GFT9 Strainer as well as the Richter GSO Strainer.

All Ball ValvesProduct Leaflet

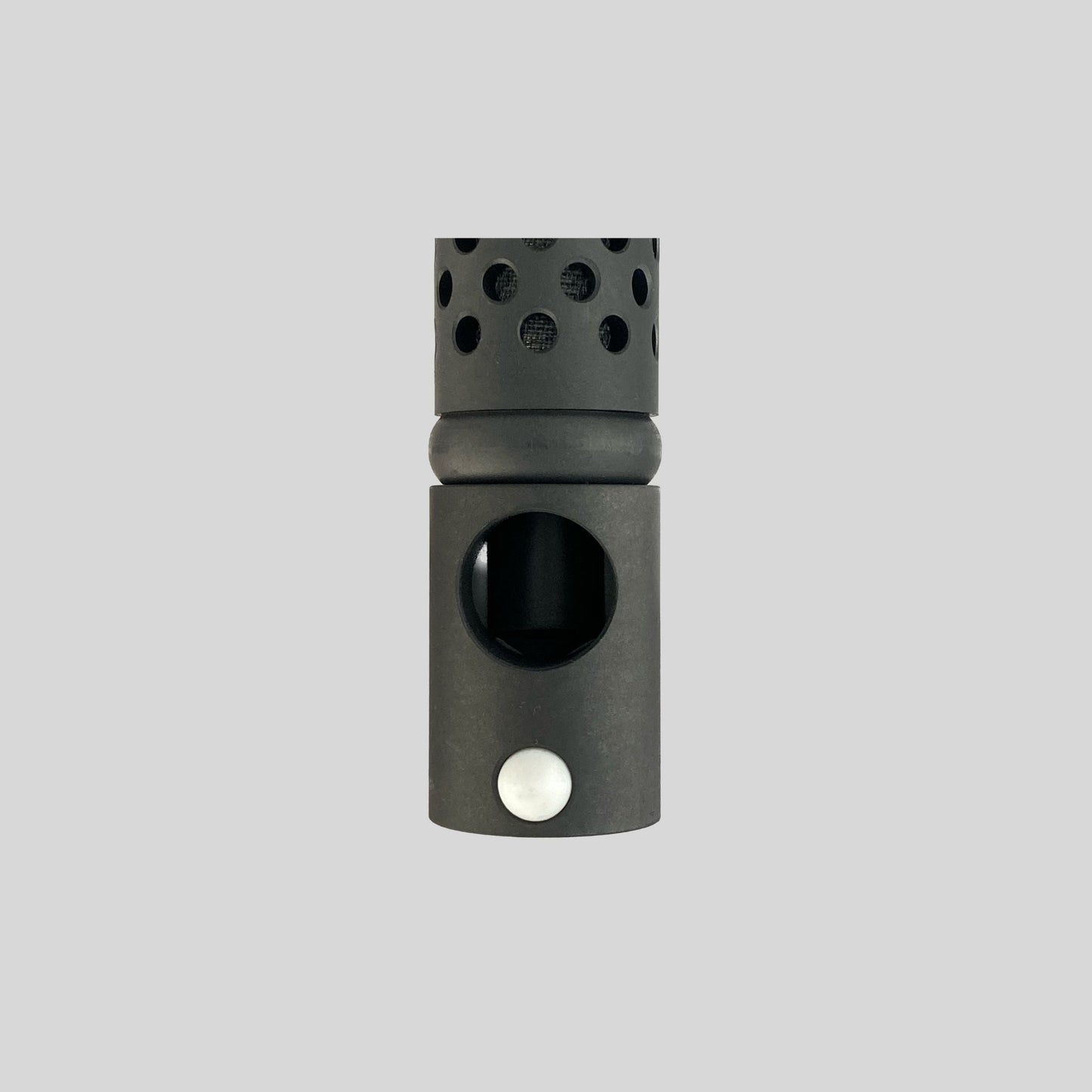

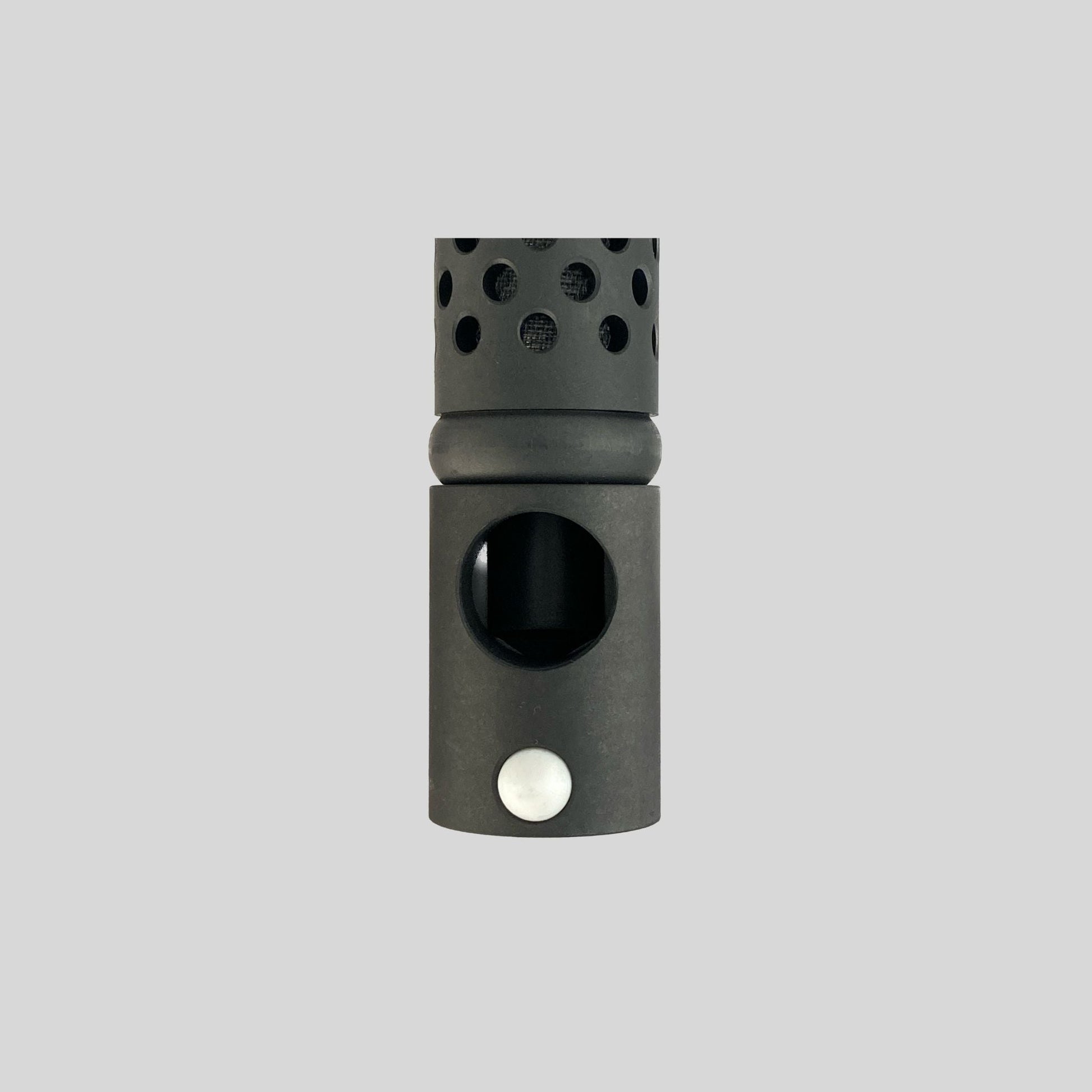

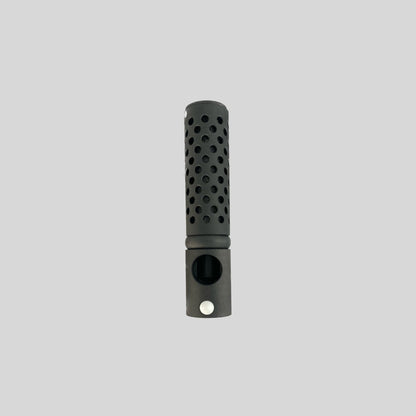

  • PFA Lined Strainer DN 150 - Main view - High quality industrial valve by GFT9

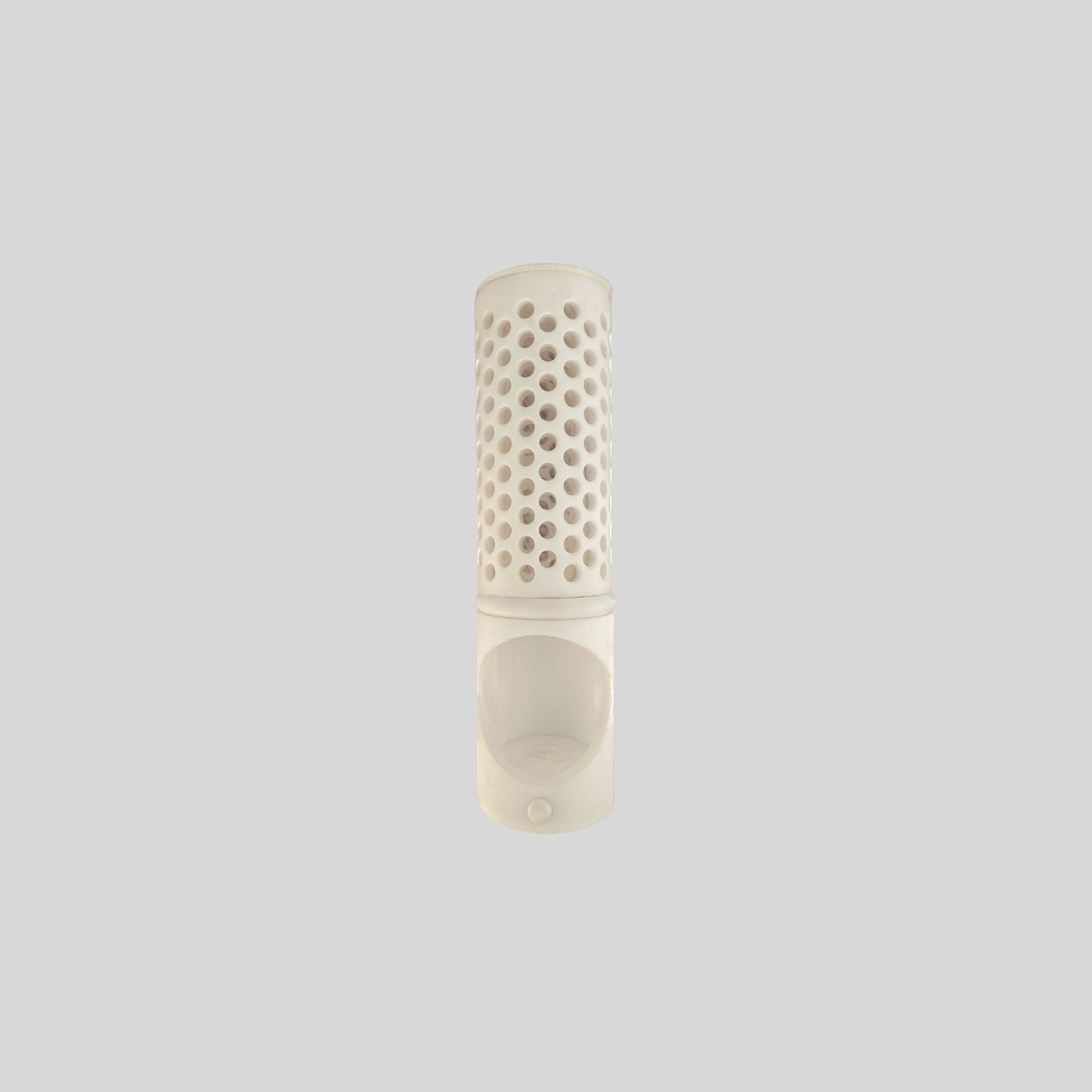

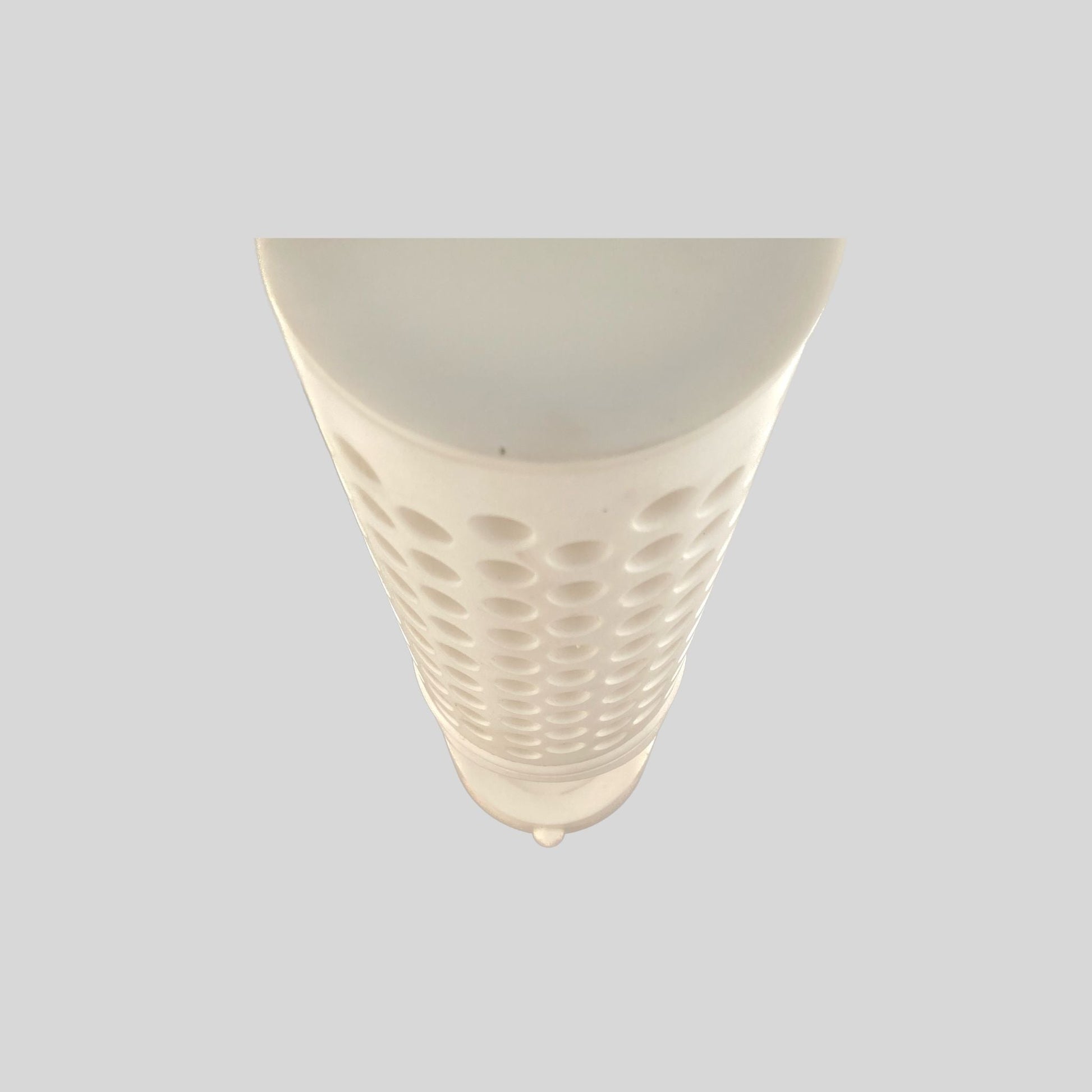

  • PFA Lined Strainer DN 150 - “PTFE-lined basket shown alongside a carbon-composite option for chemical resistance.” - High quality industrial valve by GFT9

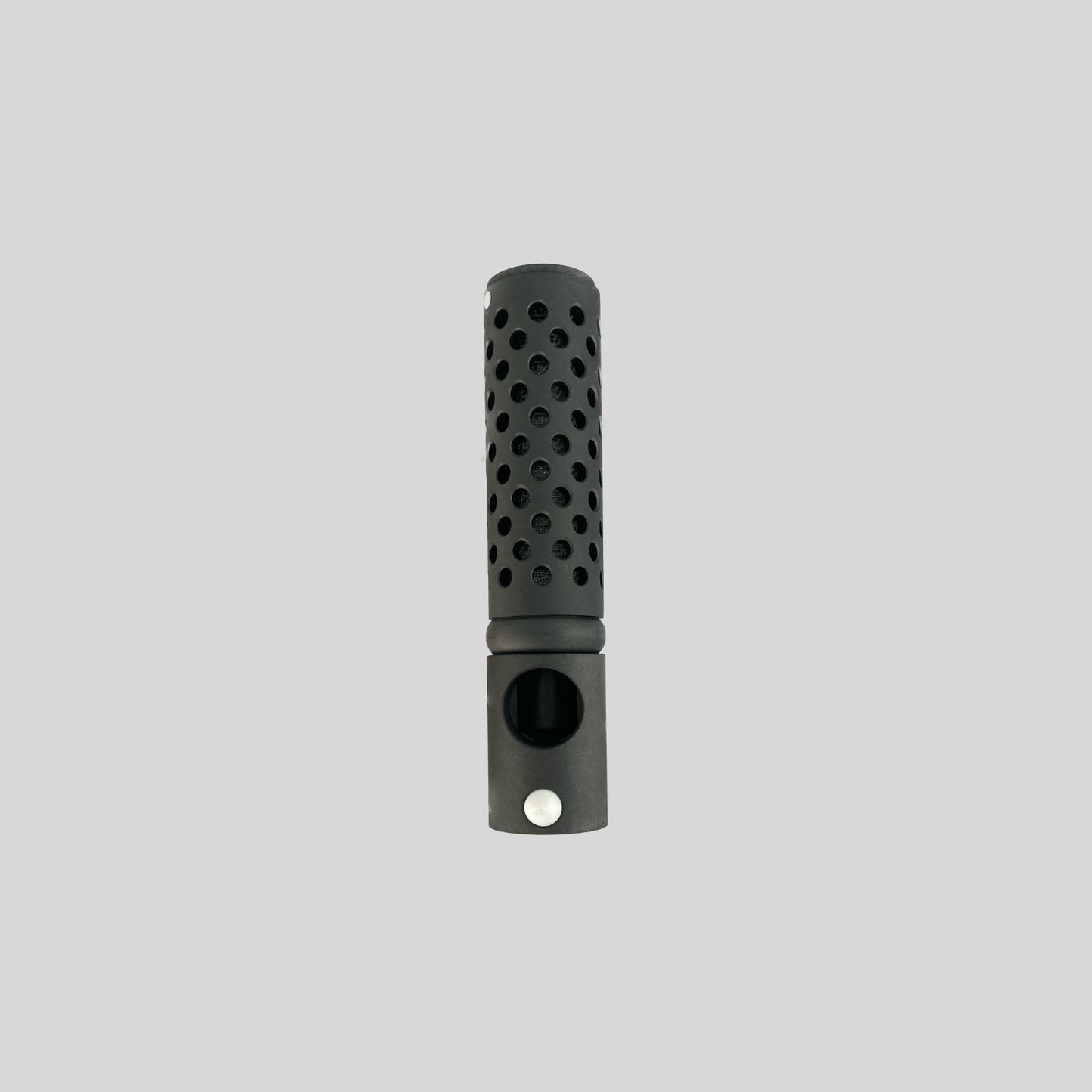

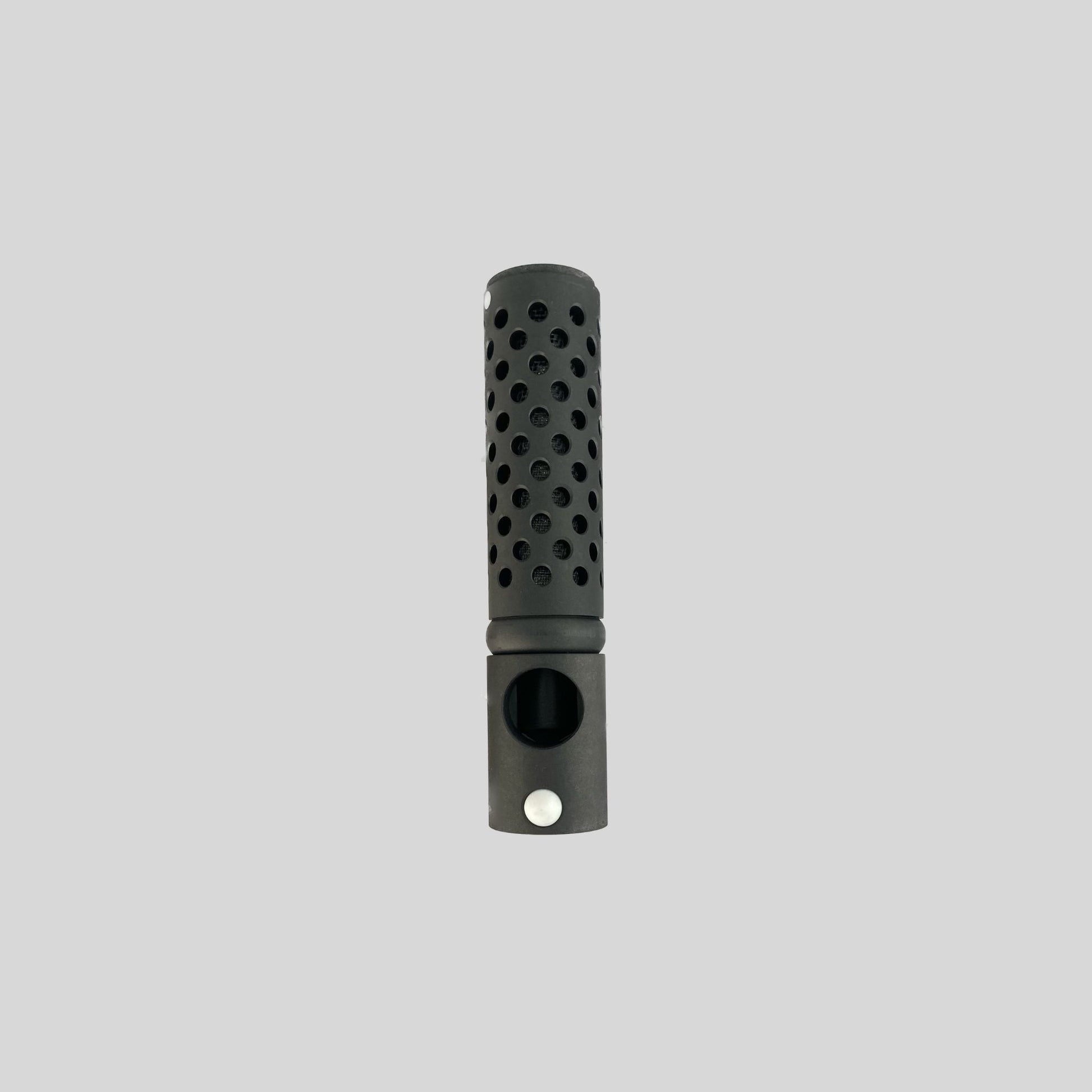

  • PFA Lined Strainer DN 150 - “Replacement filter basket compatible with Richter GSO strainers, ready for quick swap.” - High quality industrial valve by GFT9
  • PFA Lined Strainer DN 150 - “Optional nickel alloy mesh element displayed for high-temperature (>150 °C) filtration.” - High quality industrial valve by GFT9

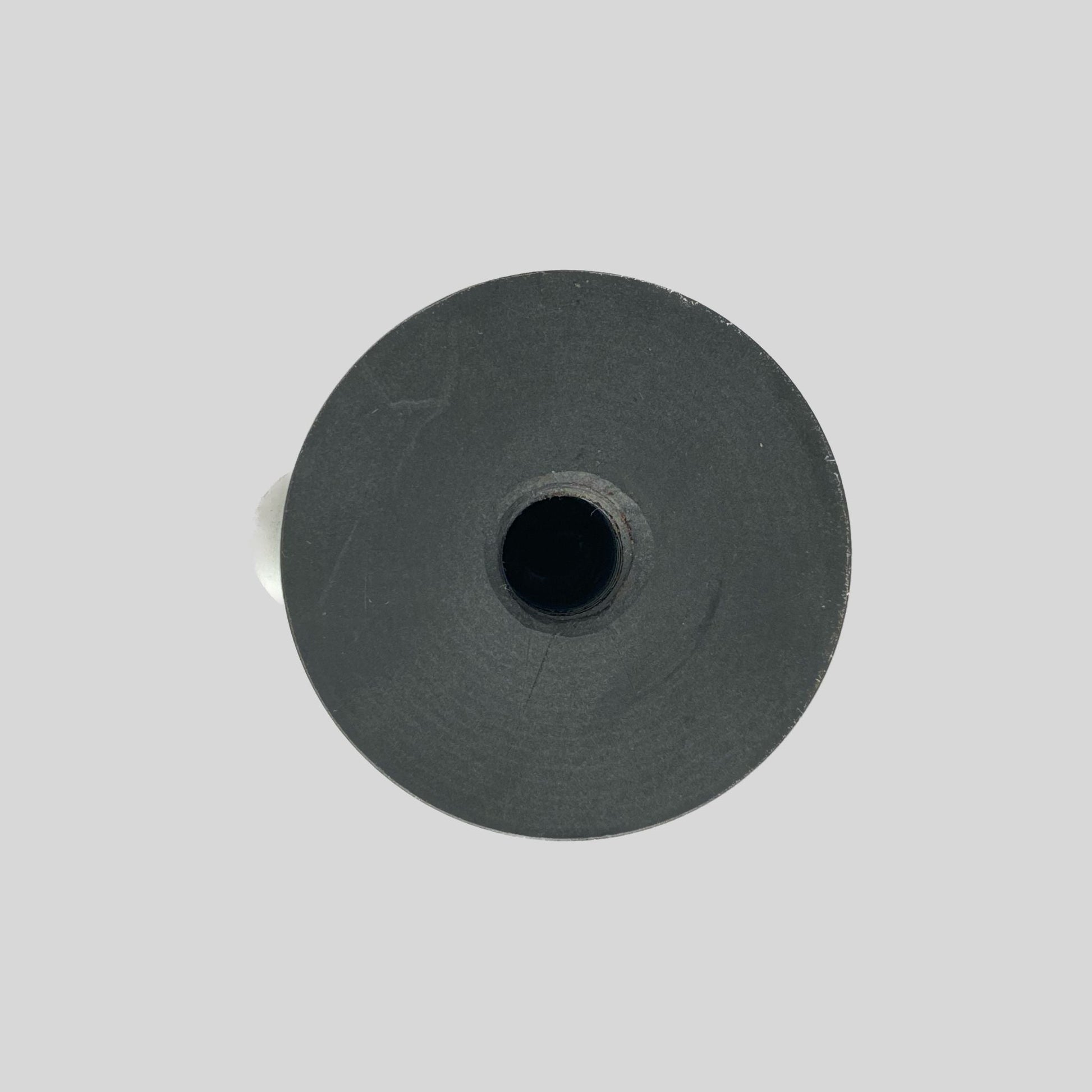

  • PFA Lined Strainer DN 150 - Flush for easy cleaning in corrosive environments. - High quality industrial valve by GFT9

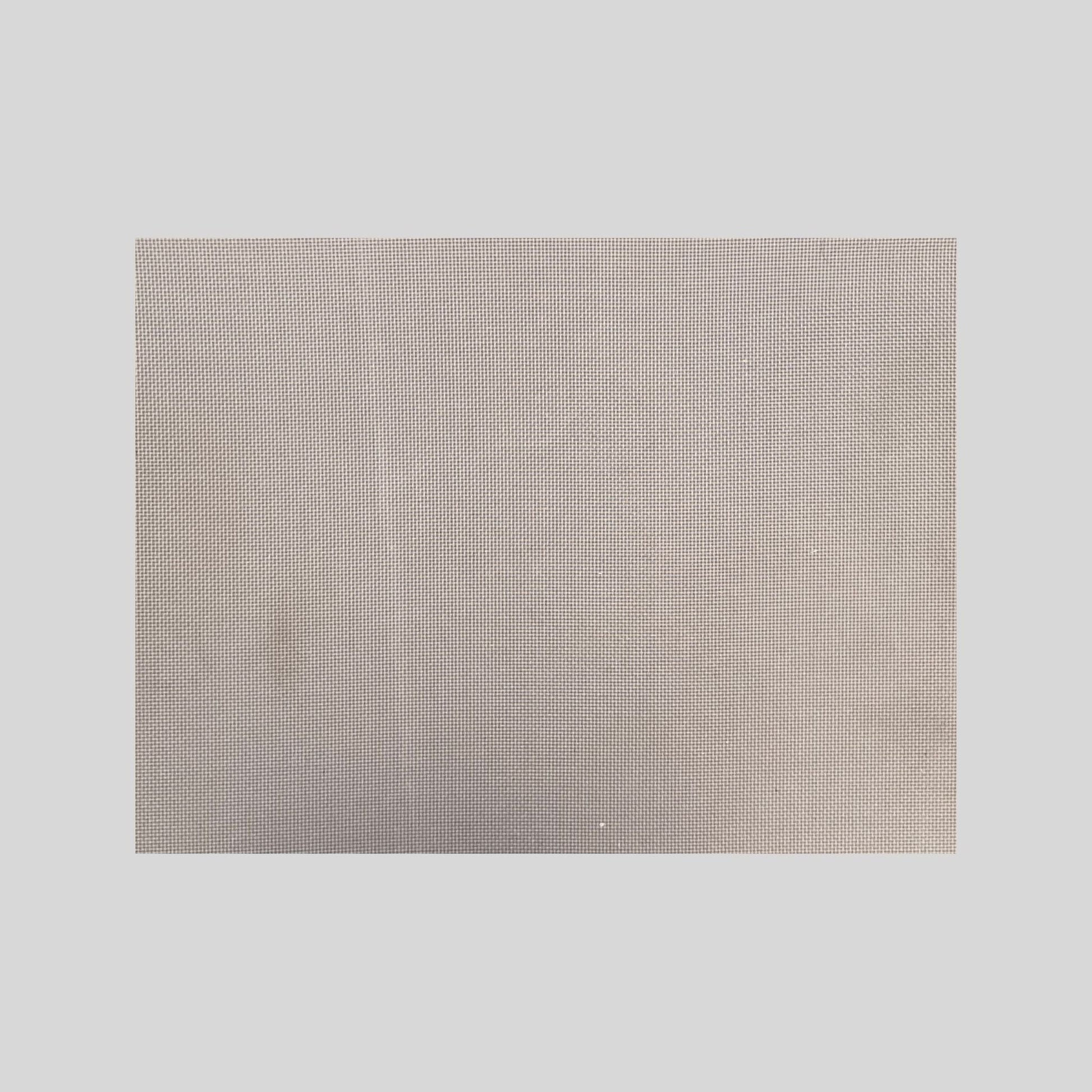

  • PFA Lined Strainer DN 150 - Filter basket with ETFE mesh ranging from 85 µm to 2000 µm for precise particle removal. - High quality industrial valve by GFT9
1 6

Size:

DN 150

Body Material:

PTFE | PTFE Carbon
Na vyžádání
Sleva Vyprodáno
Poštovné se vypočítá na pokladně.
Zobrazit veškeré podrobnosti
Name Purion9
Design Norm DIN/ISO | ANSI
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Flange Dimensions DIN 2501 (PN 16) | ASME B16.10 (Class 150-RF LP)
Face-Face-Dimensions DIN EN 558-1
Strainer Basket Material: PTFE or PTFE-Carbon-Composite filter element Mesh: ETFE filter mesh size from 85 to 2000my (max. 150°C, for higher temperature, custom mesh provided up to 200°C)
Pressure Range PN 16
Temperature Range -10°C up to +150°C, higher / lower temperatures on request
Quality Control Body 24bar, Dielectric strength test 20kV
Certificates EU Pressure Equipment Directive 2014/68/EU

Product Specs

Dimensional Measurements

No image selected

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

No image selected

Pos. Item Material
1 Body PTFE / PTFE Carbon
2 Mesh ETFE

P‑T Diagram

No image selected

No description provided.

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
