Papilon9 PFA-Lined Butterfly Valve (DIN)

All Ball ValvesProduct Leaflet
1 1

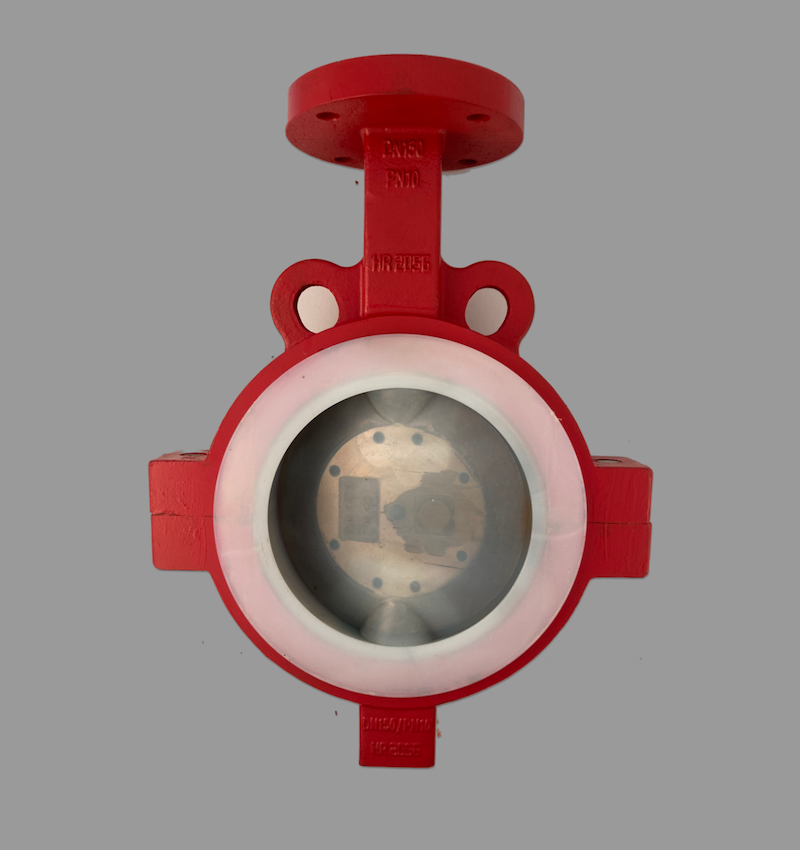

Industrial-grade butterfly valve with full PFA lining for superior chemical resistance in highly corrosive and high-purity applications. The PFA-lined body and disc withstand aggressive media that degrades conventional materials like stainless steel, PVC, PVDF, and PP.

Key Features:

  • Full PFA lining (body and disc) for maximum corrosion resistance
  • Pressure-bearing metal body for high-pressure systems
  • Exceptional sealing performance with minimal maintenance
  • DIN flanged connections
  • Manual operation (worm wheel and electric actuator options available separately)
  • Ideal for chemical processing, pharmaceuticals, and semiconductor industries

Select your size from the dropdown menu. Actuator connection specifications are provided in the technical data table.
Talep üzerine
İndirim Tükendi
Kargo, ödeme sayfasında hesaplanır.
Tüm ayrıntıları görüntüle

Overview exists: No (It might be blank or not assigned correctly)

No overview table metaobject assigned. Please assign one via the appropriate metafield "product_overview_table".

Product Specs

Dimensional Measurements

Size L L1 Extra H H1 øk øD Bolting Torque KVS Weight B (mm) C (mm) D (mm) E (mm)
DN 40 33 mm 142 mm 53 mm 94 mm 76 mm 98,4 mm 2x16 18-90 136 1,5 kg 17 mm 7 mm 34 mm 65 mm
DN 50 43 mm 104 mm 56 mm 130 mm 85 mm 120,6 mm 2x19 20-100 193 3 kg 17 mm 6 mm 31 mm 70 mm
DN 65 46 mm 128 mm 67 mm 146 mm 106 mm 139,7 mm 2x19 35-61 266 4 kg 17 mm 11 mm 48 mm 90 mm
DN 80 46 mm 144 mm 84 mm 165 mm 122 mm 152,4 mm 2x19 46-180 392 5 kg 17 mm 17 mm 63 mm 90 mm
DN 100 52 mm 164 mm 100 mm 185 mm 143 mm 190,5 mm 2x19 63-360 585 6,3 kg 17 mm 27 mm 90 mm 90 mm
DN 125 56 mm 194 mm 110 mm 205 mm 166 mm 215,9 mm 2x22 80-179 1015 7,7 kg 17 mm 38 mm 118 mm 90 mm
DN 150 56 mm 220 mm 125 mm 217 mm 193 mm 241,3 mm 2x22 128-725 1495 10 kg 22 mm 47 mm 137 mm 90 mm
DN 200 60 mm 274 mm 158 mm 245 mm 251 mm 298,4 mm 2x26 185-775 3050 16,5 kg 26 mm 71 mm 189 mm 125 mm
DN 250 68 mm 330 mm 190 mm 270 mm 301 mm 361,9 mm 2x26 287-1435 4510 24,5 kg 30 mm 92 mm 239 mm 150 mm
DN 300 78 mm 380 mm 225 mm 308 mm 349 mm 431,8 mm 2x26 410-1775 6500 37 kg 30 mm 112 mm 290 mm 150 mm
DN 350 571 mm 571 mm 256 mm 345 mm 328 mm 571 mm 571 550-3000 8760 87 kg 37 mm 92 mm 125 mm 150 mm
DN 400 643 mm 643 mm 292 mm 365 mm 377 mm 643 mm 643 650-3500 11350 107 kg 37 mm 102 mm 146 mm 150 mm
DN 450 684 mm 684 mm 311 mm 400 mm 417 mm 684 mm 684 600-1950 14400 152 kg 50 mm 114 mm 164 mm 150 mm
DN 500 745 mm 745 mm 340 mm 435 mm 477 mm 745 mm 745 650-2400 18000 185 kg 50 mm 127 mm 184 mm 150 mm
DN 600 863 mm 863 mm 398 mm 510 mm 560 mm 863 mm 863 890-3200 29200 254 kg 64 mm 154 mm 215 mm 210 mm

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

Pos. Item Material
1 Valve Body 1.0619, 1.4408 (CF-8M), 1.4301 (CF-8)
2 Valve Disc PFA, PFA/AS, Stainless Steel, Polished Stainless Steel*, Titanium, Hastelloy C
2 Lining PFA, PTFE, PTFE/AS, UHMW-PE
4 Backing Support Ring VMQ, FKM, EPDM
5 Packing PTFE/TFM, PTFE/AS

P‑T Diagram

No description provided.

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
