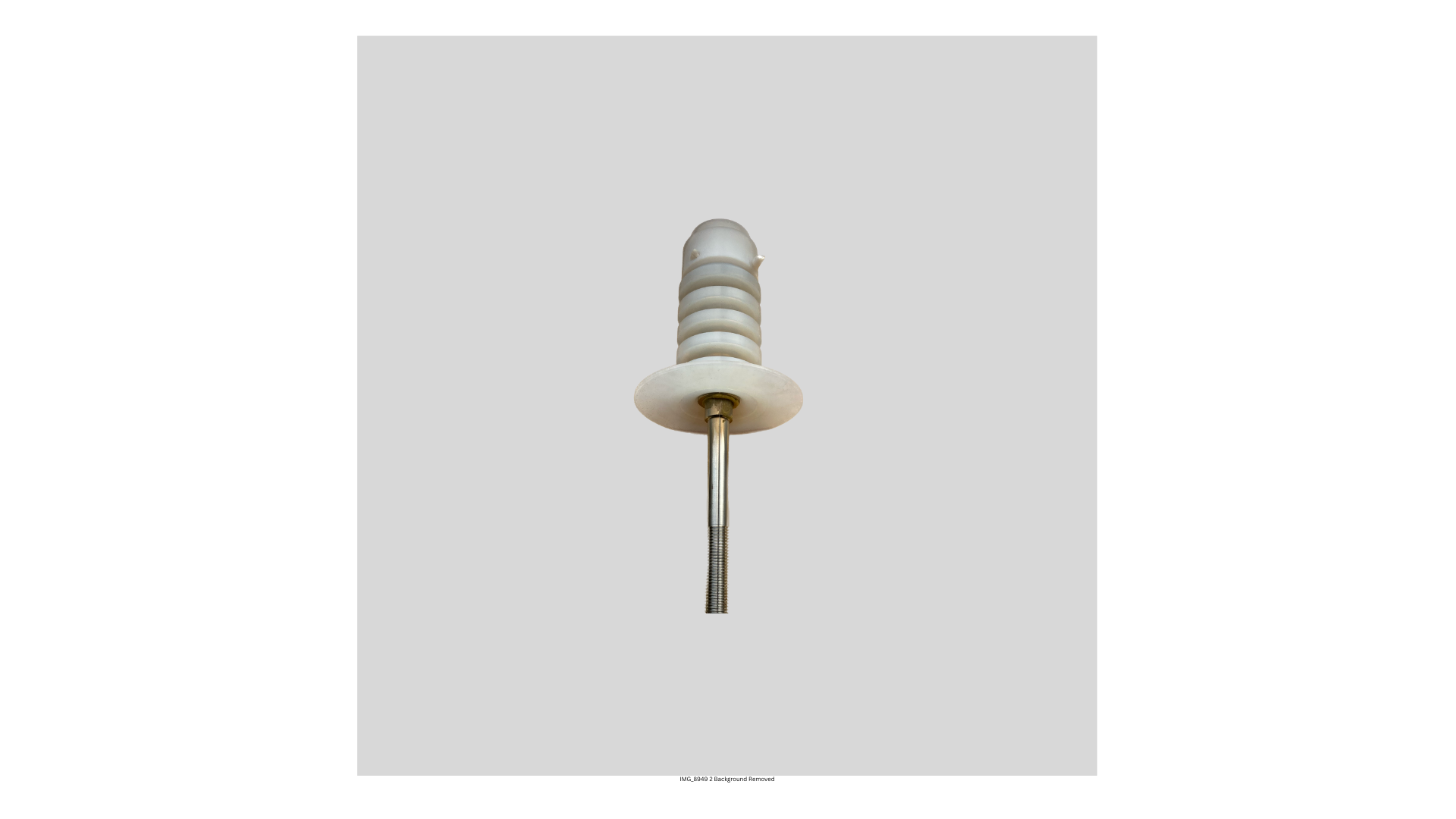

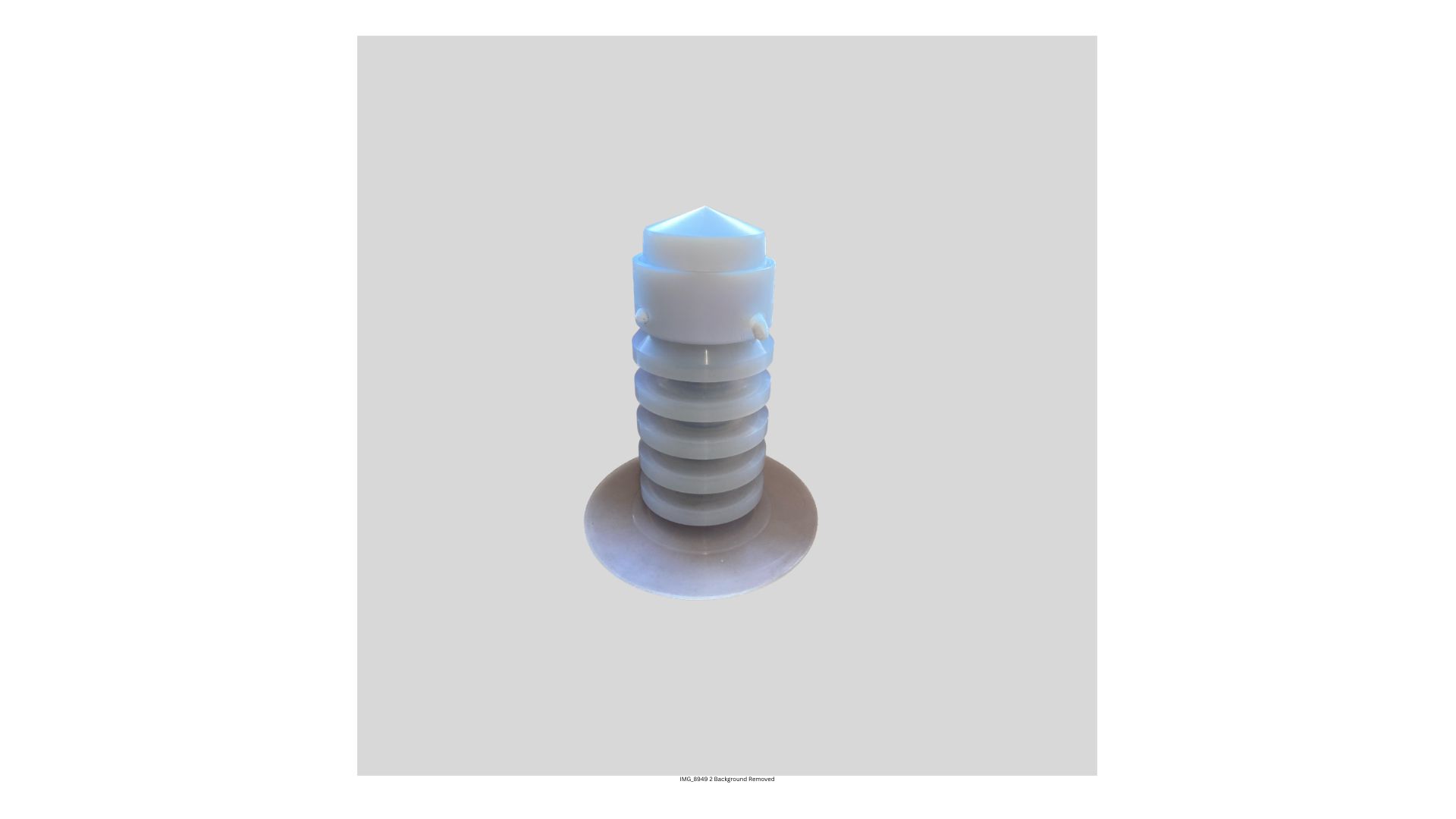

Heavy-Duty PTFE/PFA Bellows Assembly for GFT9 Imperium9 control valves.

The bellows seal is the heart of bellows-sealed control valves—providing hermetic stem sealing without packing. Our heavy-duty design features:

  • PTFE/carbon support rings for high-pressure applications
  • Rated for pressures up to 16 bar
  • Temperature range: -10°C to +200°C
  • Designed for permeating and aggressive media

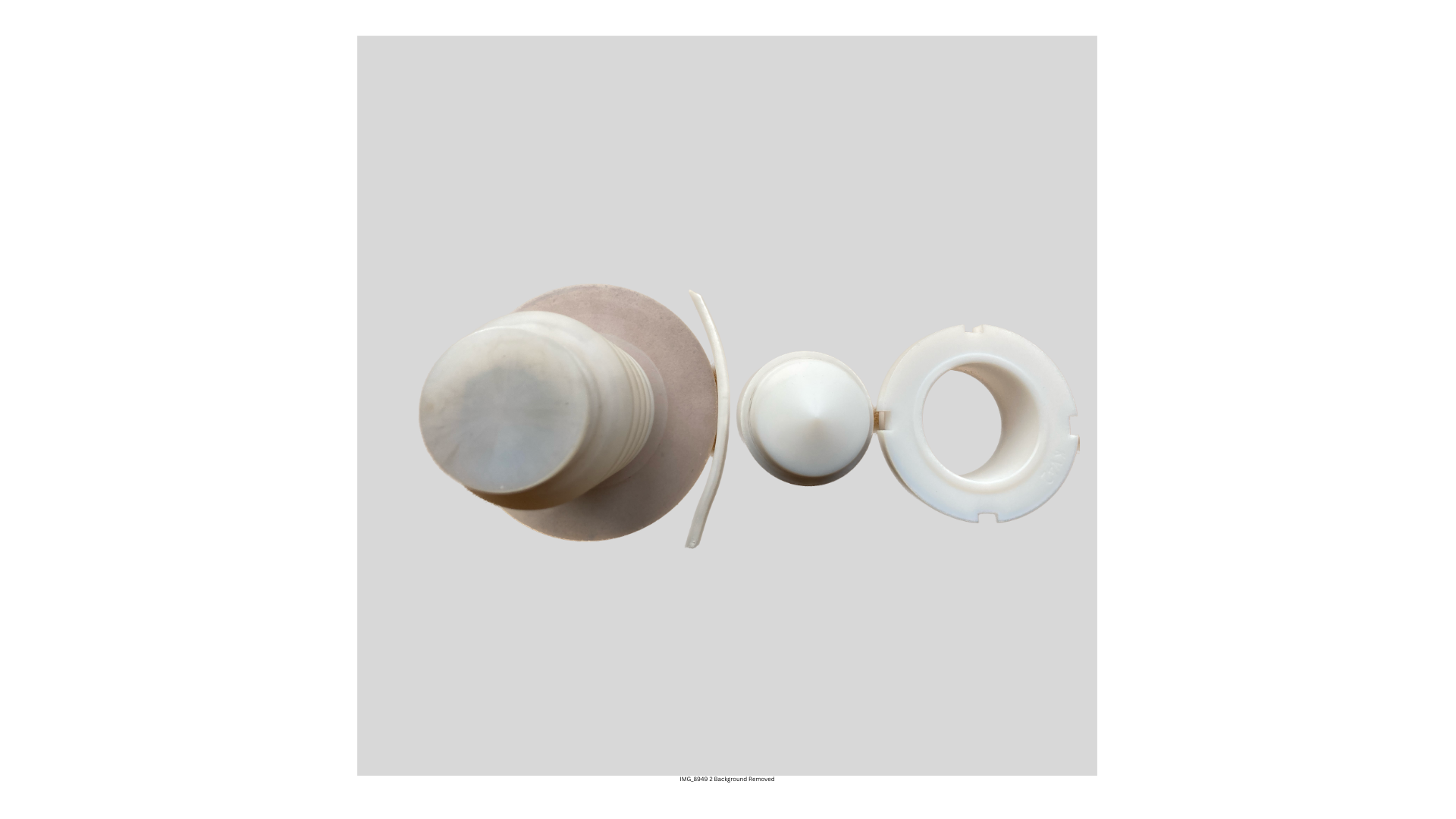

Complete Assembly Option: Bellows can be supplied as a complete cartridge including seat and plug for simplified maintenance.

Replacement bellows are recommended when:

  • External leakage is detected at the stem
  • Valve stroke becomes irregular
  • Preventive maintenance schedules require it
Price on Request
Rea Slutsåld
Frakt beräknas i kassan.
Visa alla uppgifter

Overview exists: No (It might be blank or not assigned correctly)

No overview table metaobject assigned. Please assign one via the appropriate metafield "product_overview_table".

Product Specs

Dimensional Measurements

No image selected

No DIN measurement entries available. Please assign your DIN measurements via the appropriate metafield.

No ANSI measurement entries available. Please assign your ANSI measurements via the appropriate metafield.

Materials Table & File

No image selected

No material entries available. Please assign your material entries via the metafield "custom.materials".

P‑T Diagram

No image selected

No description provided.

Documentation (Optional):

  • Manufacturer Standard: German-language PDF
  • Certificate of Casting (DIN 10204-3.1): € 62.00 per valve type and nominal size, including material test report for the housing
  • Leakage Test Certificate: € 44.00 per certificate and valve type/nominal size

Other certifications upon request
